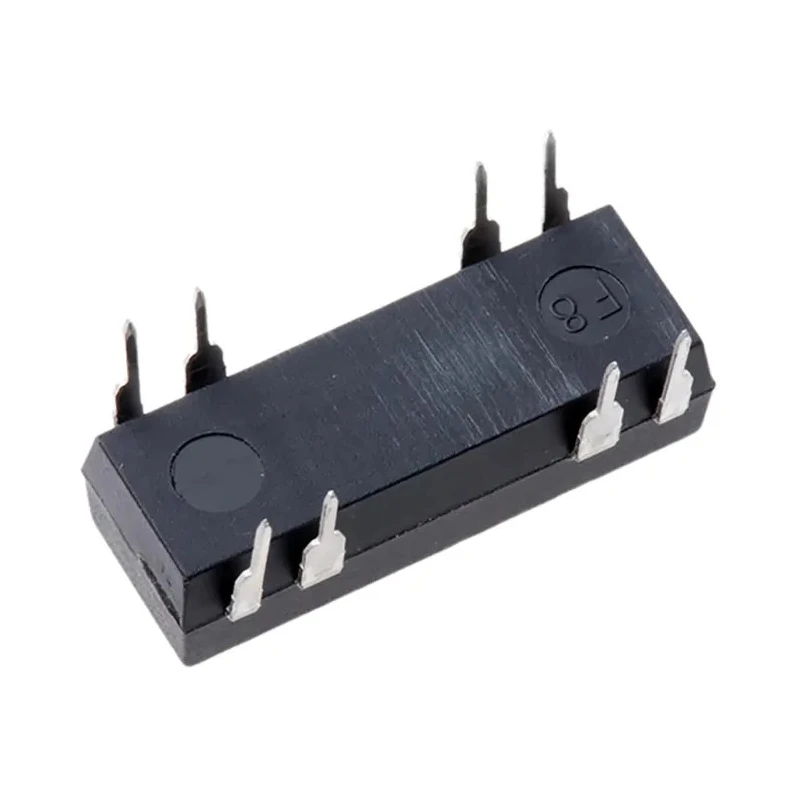

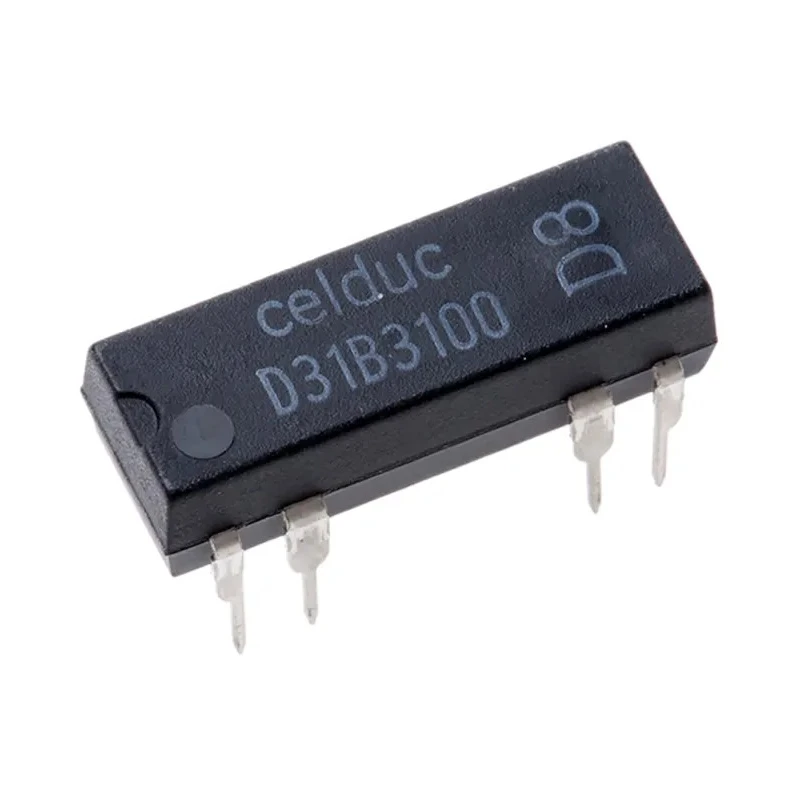

Celduc Reed Relay, 5V DC Coil, SPNC Contact Configuration, 100V DC Max Voltage, 0.5A Max Current, 500 Ω Coil D31B3100

Celduc D31B3100 Reed Relay is a high quality relay designed for use in electronic and electrical control systems where reliable switching is essential. Featuring a 5V DC coil and a single-pole, normally closed (SPNC) contact configuration, this relay supports a maximum switching voltage of 100V DC and a maximum current of 0.5A, making it suitable for a variety of signal and low power switching applications.

The relay's coil resistance is 500 ohms, optimized for effective coil power consumption rated at 10W. Its compact size with a length of 19.1 mm and height of 6.8 mm allows integration into space-constrained applications, while the DIP package and solder terminal type enable straightforward PCB mounting.

Designed to operate within a broad temperature range from -40°C to 70°C, the D31B3100 relay is capable of performing reliably under harsh conditions. With a fast operating time of 1 millisecond, it is suitable for rapid switching needs in automation, industrial control, telecommunications, and instrumentation.

The device provides robust isolation of 1.4 kV DC between coil and contacts, enhancing electrical safety and system durability. The contact resistance is low at 150 milliohms, resulting in minimal signal loss. This is a non-latching Reed Relay, resetting automatically to the default state without any manual reset.

Manufactured in France to high industry standards, this model belongs to the D31 series renowned for durability and performance. It is ideal for industrial automation, signal conditioning, measurement systems, and various electrical control applications.

Features a coil resistance of 500 ohms ensuring efficient coil performance. Compact dimensions with a length of 19.1 mm and height of 6.8 mm for easy integration. Suitable for environments with operating temperatures ranging from -40°C to 70°C.

Switching power rated at 10VA with coil power at 10W for reliable operation. Offers an isolation voltage of 1.4kV DC between coil and contact for safety. Fast operating time of 1 ms supports rapid switching applications.

Non-latching design ensures the relay resets automatically without manual intervention. Constructed in a DIP package with solder terminals for secure mounting. Manufactured in France adhering to high-quality standards. Browse the extensive range of relays and electronic components on EnvMart for your industrial, laboratory, and automation needs.
