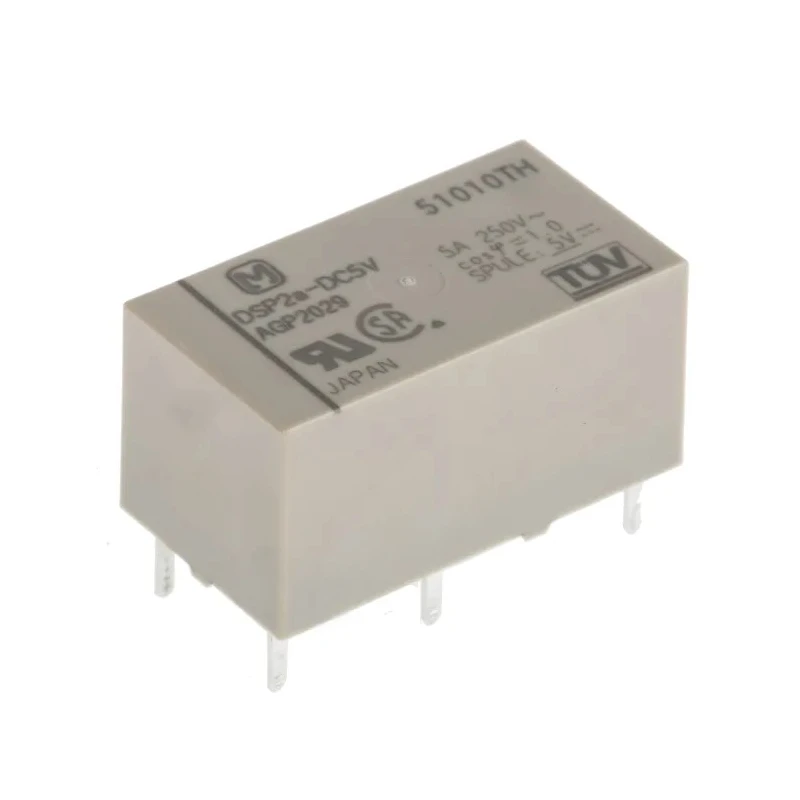

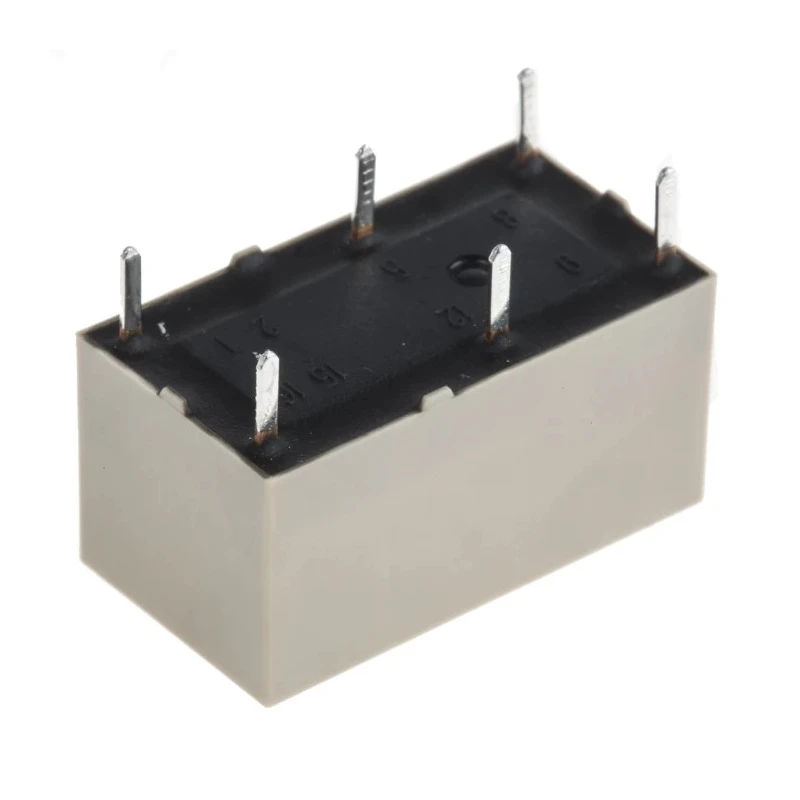

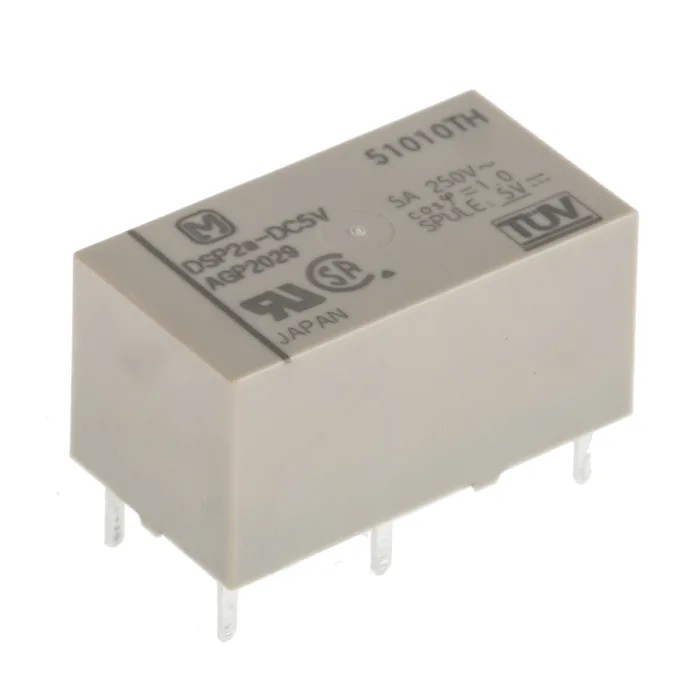

Panasonic PCB Power Relay 5V DC Coil 5A Switching Current DPST DSP2A5D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 10mm |
| Length | 20.2mm |
| Model | DSP2A5D |
| Width | 11mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | DSP |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | PCB Pin |
| Contact Resistance | 30mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 83Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 300mW |
| Switching Power | 150W |
Key Features
- Features DPST contact configuration for dual pole switching.
- Operates within temperature range of -40°C to 60°C ensuring robust performance.
- Compact miniature size of 10mm height, 20.2mm length, and 11mm width suitable for space-constrained designs.
- Silver alloy contact material provides durable electrical conduction with low contact resistance of 30mΩ.
- Coil resistance of 83Ω and coil power consumption of 300mW ensure energy-efficient operation.
- Switching voltage rated up to 125V AC/DC and switching power capability up to 150W.
- Sealed construction allows automatic washing and enhances reliability.
- Complies with RoHS standards for environmental safety.
Product Description
Panasonic DSP2A5D is a high-quality PCB power relay designed to provide dependable switching solutions with 5V DC coil voltage and 5 ampere switching current. This relay features a DPST (Double Pole Single Throw) contact configuration suitable for controlling two circuits simultaneously on printed circuit boards.
The relay's miniature dimensions, measuring 10 mm in height, 20.2 mm in length, and 11 mm in width, make it an excellent choice for applications demanding compactness and efficient PCB mounting. Its sealed construction allows for automatic washing processes without compromising the relay's integrity, promoting longevity in demanding industrial and commercial environments.
The use of silver alloy for contact material ensures high conductivity and strength, complemented by a low contact resistance of 30 milliohms, reducing electrical losses and heat generation. With a coil resistance of 83 ohms and a coil power rating of 300 milliwatts, this relay operates efficiently with minimal power consumption.
The DSP2A5D relay supports switching AC and DC voltages up to 125V with a switching power capability of 150 watts, accommodating a variety of electronic applications. Its operational temperature range from -40°C to 60°C enables stable performance across diverse environmental conditions.
Compliant with RoHS standards, the relay aligns with environmental regulations, making it suitable for industrial use in office electronics, measuring instruments, temperature controllers, programmable logic controllers (PLCs), and other automation equipment.
DPST contact configuration for dual circuit control. Compact and miniature form factor for PCB mounting. Sealed design suitable for automatic washing. Silver alloy contact material for durability and conductivity. Low contact resistance of 30mΩ for efficient switching.
Operating temperature range of -40°C to 60°C. Coil resistance of 83Ω and coil power of 300mW. Switching power rated at 150W for versatile applications. RoHS compliant ensuring environment-friendly usage.
This Panasonic PCB power relay is a reliable component for electrical and automation applications requiring safe, precise, and efficient switching. Explore more options and technical components in the Power Relays category at EnvMart.
