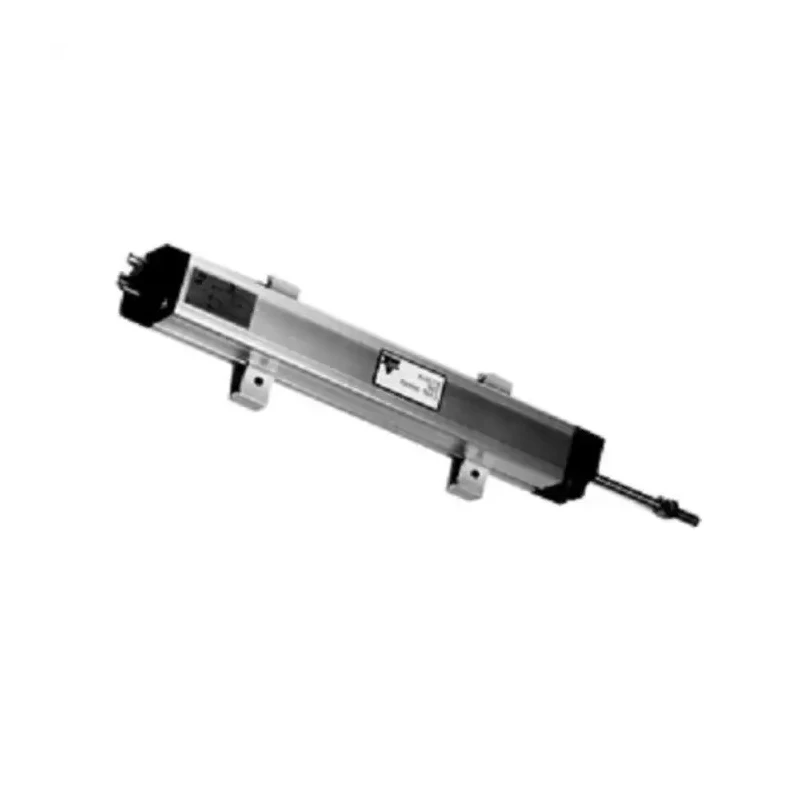

Vishay REC 115L Series Linear Transducer Aluminium Housing IP67, 1000mΩ Resistance RE115L6E502W6017
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | RE115L6E502W6017 |
| IP Rating | IP67 |
| Housing Material | Aluminium |
| Series | REC 115L |
| Overall Width | 81mm |
| Maximum Operating Temperature | 125°C |
| Resistance | 1000mΩ |
| Overall height | 34.75mm |
| Resistance Tolerance | ±20 % |
| Standards/Approvals | RoHS |
| Overall Depth | 63mm |
| Vishay Linear Transducer 150mm strokeBrand | Vishay |
Key Features
- Measurement range up to 1000 mm with high accuracy.
- High accuracy from ±1% down to ±0.025% for precise linear measurements.
- Excellent repeatability and essentially infinite resolution ensure reliable performance.
- Durable aluminium housing provides IP67 rating for water and dust resistance.
- Suitable for servo control in cylinder position and slide movement applications.
- Temperature stable measurement unaffected by typical operating temperature variations.
- Includes DIN 43650 hydraulic connector outputs with moveable brackets for easy mounting.
- Maximum operating temperature up to 125°C for demanding industrial environments.
Product Description
Vishay RE115L6E502W6017 REC 115L Series Linear Transducer offers precise linear position measurement with a robust aluminium housing providing IP67 ingress protection. Designed for industrial and automation applications, it delivers measurement ranges from 25 mm to 1000 mm with accuracy from ±1% down to ±0.025%, making it suitable for demanding control tasks.
The sensor features conductive plastic technology with plastic track construction, which provides excellent repeatability and essentially infinite resolution for precise feedback. Its measurement output is stable and not affected by temperature variations due to the voltage division mode of operation.
This linear transducer is particularly suited for slide movement sensors used in cylinder servo control and other motion control sensor applications. It utilizes a DIN 43650 hydraulic connector, supplied with moveable mounting brackets for convenient installation. A DIN 43650 hydraulic connector is required for connection, detailed in the product datasheet.
With a maximum operating temperature rating of 125°C and resistance tolerance of ±20%, this Vishay sensor is built for reliability in harsh industrial environments. It complies with RoHS standards for environmentally responsible manufacturing.
Measurement range of 25 mm to 1000 mm. High accuracy and repeatability for precise position sensing. Aluminium housing with IP67 ingress protection. Suitable for motion control and automation sensor applications. Durable construction for long service life.
DIN 43650 hydraulic connector compatible. Maximum operating temperature 125°C. Resistance tolerance ±20%. RoHS compliant.
This Vishay REC 115L Linear Transducer is ideal for use in industrial automation, laboratory instrumentation, manufacturing process control, and other applications requiring accurate linear position measurement. Browse more sensors and automation components on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay RE115L6E502W6017 linear transducer has a measurement range from 25 mm to 1000 mm.
This model offers high accuracy ranging from ±1% down to ±0.025%, ensuring precise linear measurements.
The maximum operating temperature for the RE115L6E502W6017 is 125°C, making it suitable for demanding industrial environments.
It features a durable aluminium housing that provides an IP67 rating for water and dust resistance.
The transducer has a resistance of 1000 mΩ with a tolerance of ±20%.
It utilizes a DIN 43650 hydraulic connector for output, which is included with moveable mounting brackets for easy installation.
This unit provides excellent repeatability and essentially infinite resolution, ensuring reliable performance in position sensing.
It is particularly suited for servo control in cylinder position and slide movement applications, as well as other motion control sensor tasks.
The overall dimensions are 81 mm in width, 34.75 mm in height, and 63 mm in depth.
Yes, the RE115L6E502W6017 complies with RoHS standards for environmentally responsible manufacturing.
It employs conductive plastic technology with plastic track construction, which enhances measurement stability and accuracy.
The country of origin for this model is India.
