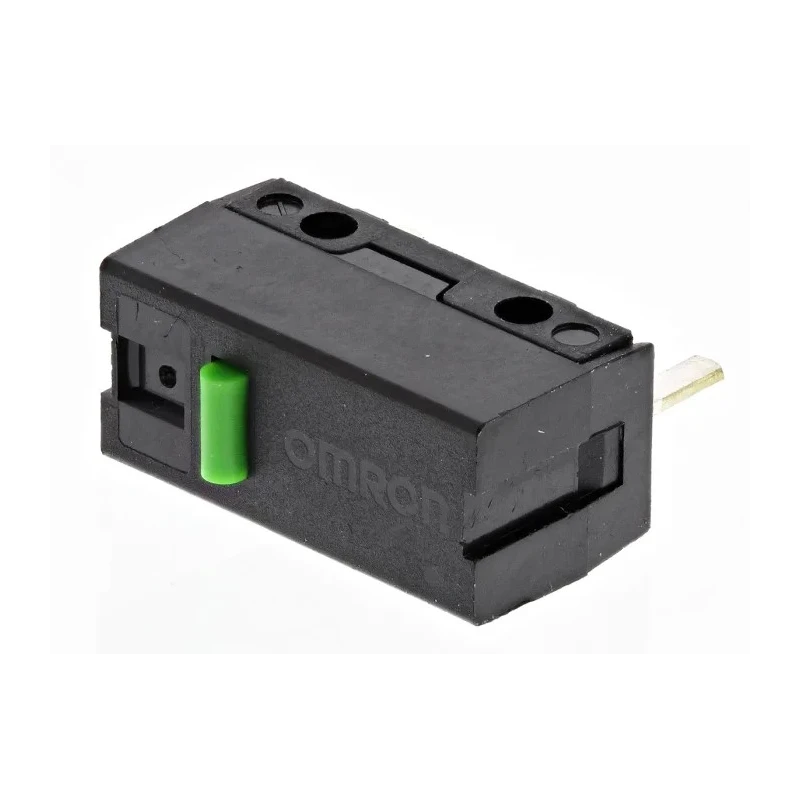

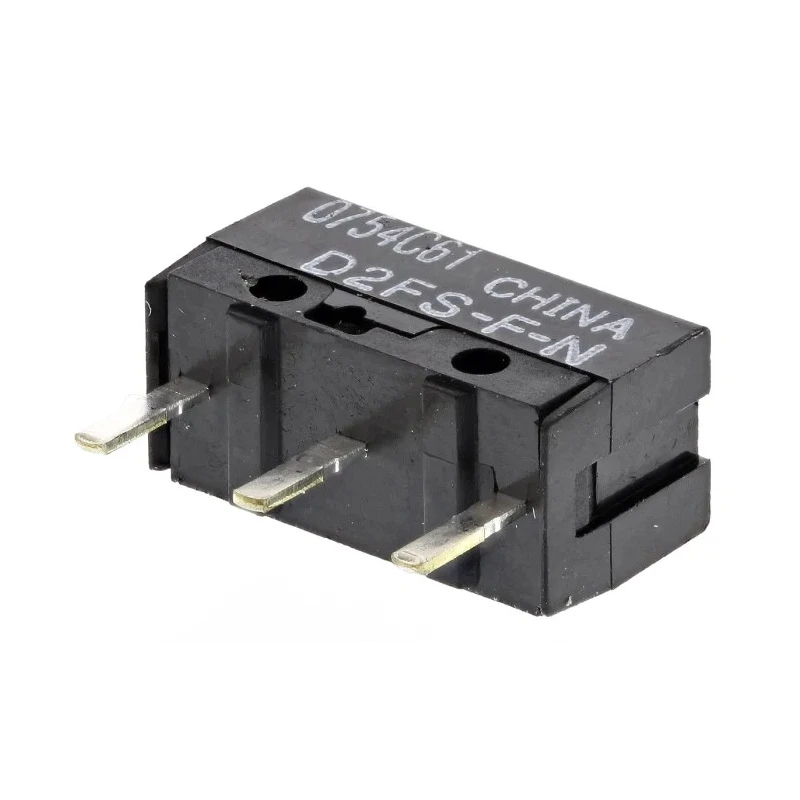

Omron Ultra Subminiature Pin Plunger Micro Switch, PCB Terminal, 6 V dc, 100mA, SPST, IP40, Model D2FS-F-N

Omron D2FS-F-N ultra subminiature pin plunger micro switch is designed for applications requiring minimal switching actions, such as door detection to prevent meter misuse. Its compact size and reliable SPST contact configuration make it ideal for precise control in electrical and automation systems.

This micro switch includes a PCB terminal type actuator, facilitating easy mounting onto circuit boards. With an operating voltage of 6 V dc and a contact current of 100mA, it is suited for low voltage switching tasks. The switching mechanism uses a pin plunger actuator with a single leaf movable spring for enhanced responsiveness and durability.

Its IP40 rating provides basic protection against solid particles, suitable for controlled environments. The operating force is 0.85N, enabling smooth actuation without excessive effort. The switch supports a broad operating temperature range from -20°C to 70°C to endure various industrial and commercial settings.

The mechanical life cycle is rated up to 100,000 operations, ensuring long-term operational reliability. The switch complies with RoHS standards, confirming its environmental compliance and safety.

This product is manufactured in China and forms part of Omron’s D2FS series of ultra subminiature basic switches. It is broadly applicable in industrial automation, electrical equipment, HVAC controls, and other manufacturing processes that require compact and reliable switching elements.

Designed for minimal switching actions over long use periods. Features single leaf movable spring for reliable operation. Contact configuration is single-pole, single-throw (SPST). Has an IP40 rating for protection against solid objects.

Operates with an operating force of 0.85N for precise actuation. Electrical contact voltage rating is 6 V dc with a switch current of 100mA. Mechanical life expectancy of 100000 operations ensures durability. Operating temperature range from -20°C to 70°C suits various environments.

Compact dimensions: 12.8mm length and 5.8mm depth enable PCB mounting. Compliant with RoHS standards for environmental safety. Explore more Micro Switches and electrical components in the Electronics & Electricals section of EnvMart.
