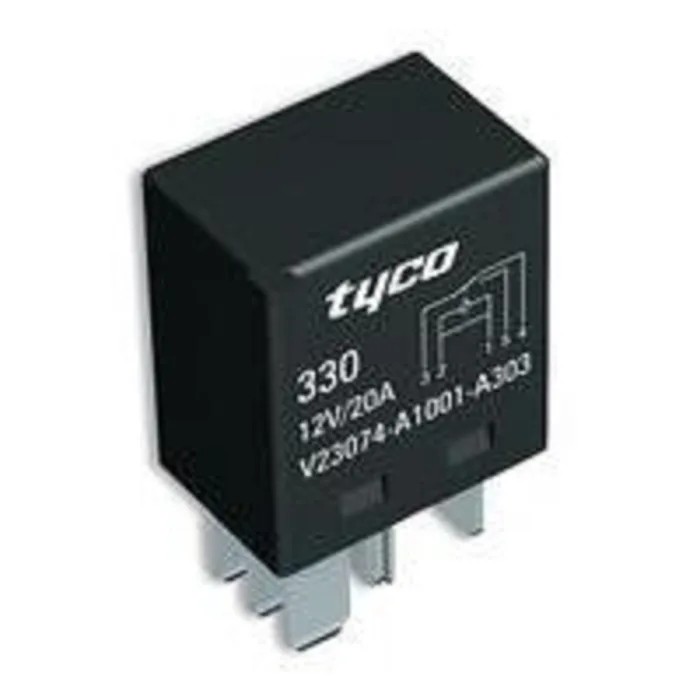

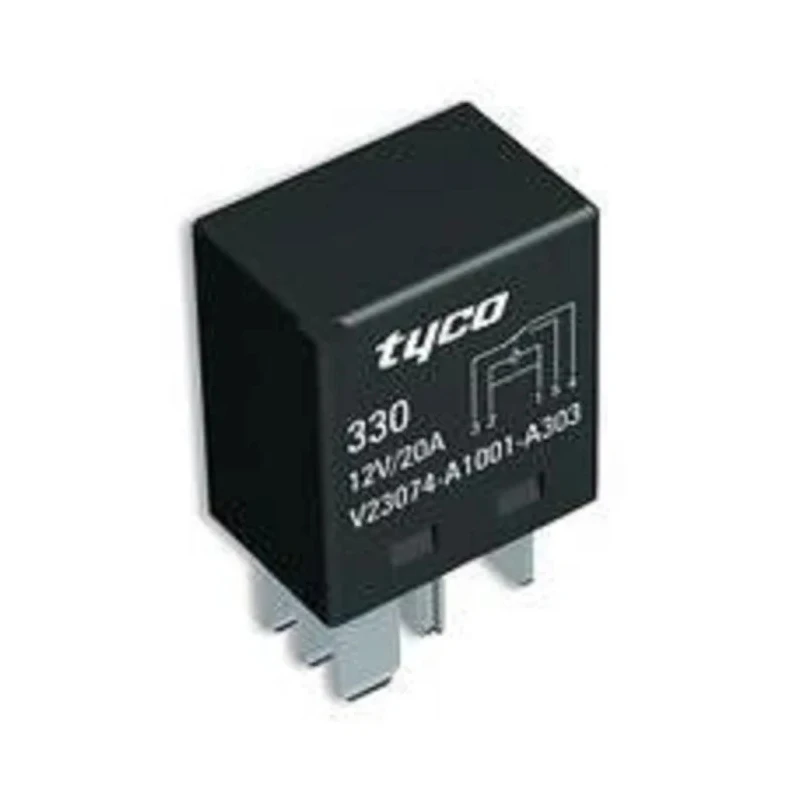

TE Connectivity Automotive Relay 12V dc Coil Voltage 1.2W Coil Power 20A Switching Current SPDT 4-1904124-3
Specifications
| Country of Origin | Portugal |
|---|---|
| Brand | TE Connectivity |
| Height | 25.4mm |
| Length | 23mm |
| Depth | 15.5mm |
| Contact Material | Silver Tin Oxide, Agni0.15 |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Quick Connect |
| Coil Resistance | 119Ω |
| Coil Power | 1.2W |
| The TE - Automotive micro relay is used for Cross carline up to 30A for example | ABS control, blower fans, cooling fan, door control, door lock, fuel pump, heated front screen, immobilizer, interior lights, seat control, seatbelt pretensioner, sun roof, trunk lock, valves, window lifter, wiper control |
Key Features
- Coil power rating of 1.2 W ensures efficient operation.
- Coil resistance is 119 ohms for precise control.
- Equipped with quick connect terminal type for easy installation.
- Operates reliably between -40°C to 125°C temperatures.
- Silver Tin Oxide contact material enhances durability.
- Designed for automotive applications including ABS, blower fans, fuel pumps, and wiper control.
- Originates from Portugal, assuring quality standards.
Product Description
TE Connectivity 4-1904124-3 Automotive Relay is engineered for automotive electrical systems requiring reliable switching of currents up to 20A with a 12V dc coil voltage and 1.2W coil power consumption. It features a SPDT (Single Pole Double Throw) contact configuration with Silver Tin Oxide contacts providing superior performance and extended life.
Its compact design with dimensions 23mm length, 25.4mm height, and 15.5mm depth allows easy integration in constrained spaces within automotive applications. The relay uses a quick connect terminal type facilitating rapid and secure wiring connections.
This relay is suitable for use in various automotive control systems, including ABS control, blower fans, cooling fans, door and trunk locks, fuel pumps, immobilizers, interior lighting, seat control, sunroofs, window lifters, seatbelt pretensioners, and wiper control systems.
With an operating temperature range from -40°C to 125°C, it withstands harsh automotive environments and temperature extremes. The coil resistance of 119 ohms ensures appropriate current draw for the coil circuit, optimizing energy consumption. The relay’s series designation is 4-1904124-3 and it is manufactured in Portugal under strict quality controls.
TE Connectivity’s automotive micro relay is recognized for reliable switching and long service life. It features pin assignments compliant with ISO 7588 part 324 standards and may be customized with special contact gaps or markings to suit specific applications. For specialized requirements, variants are available for low noise or higher current handling.
Coil Power: 1.2W. Coil Resistance: 119Ω. Contact Configuration: SPDT. Terminal Type: Quick Connect. Operating Temperature: -40°C to 125°C. Dimensions (L×H×D): 23mm × 25.4mm × 15.5mm. Contact Material: Silver Tin Oxide. Ideal for ABS, blower fans, fuel pumps, immobilizers, and more automotive controls.
This automotive relay is a reliable component for automotive electrical systems requiring precise and durable switching capabilities. Choose TE Connectivity Automotive Relays for trusted performance in demanding environments. Explore other automotive and industrial relay products in the EnvMart catalog for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a coil voltage of 12V DC and has a coil power rating of 1.2W.
This model can handle a maximum switching current of 20A.
The relay features a Single Pole Double Throw (SPDT) contact configuration.
The contacts are made of Silver Tin Oxide, enhancing durability and performance.
It operates reliably within a temperature range of -40°C to 125°C.
The relay has dimensions of 23mm in length, 25.4mm in height, and 15.5mm in depth.
It is equipped with a quick connect terminal type for easy installation.
This relay is suitable for various automotive applications including ABS control, blower fans, fuel pumps, and wiper control systems.
The coil resistance is 119 ohms, ensuring appropriate current draw for the coil circuit.
Yes, it has pin assignments compliant with ISO 7588 part 324 standards.
This relay originates from Portugal, assuring adherence to quality standards.
Yes, variants are available for low noise or higher current handling to suit specific applications.
