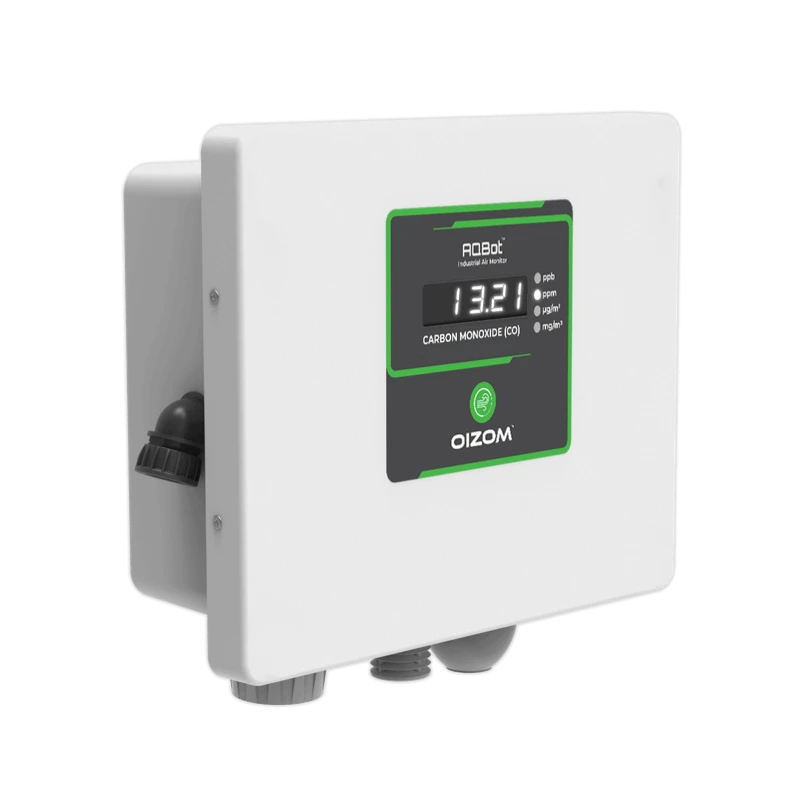

AQBot CO Monitor-Single Point Continuous Carbon Monoxide Monitor
Specifications
| Accuracy | Less Than 5%FS (at 205C/ 5020%RH) |
|---|---|
| Power Consumption | 3.5 W (average) |
| Power Supply | AC 90VAC- 265VAC 50/60Hz |
| Relay outputs | 2 programmable relays| volt free relay contacts (1NO| 1 NC) |
| Memory | 2GB RAM| 8GB eMMC ROM |
| Housing | NEMA-4X Fire-retardant FRP enclosure |
| Analog Output | 1 x 4~20mA Current Loop with 12-bit Resolution |
| Sensor life | 2 years |
| Warm up time | 1 hour (cold start) for gas monitoring |
| Processor | Quad-Core ARM Cortex A-72 |
| Installation method | Wall mount / Pole mount |
| Internal Data Storage | Up to 12 months |
| Device Interface | On-device software| API| Display |
| Display Specification | 6 digit 7 Segment Display |
| Response Time (T90) | Less Than 60 Seconds |
| Signal refresh rate | 5 Seconds |
| Wireless Communications | Global 2G/3G/4G| LoRa| LTE| NB-IoT| Sigfox| Wifi (Any one) |
| Wired Communications | Ethernet| MODBUS TCP| MODBUS RTU| RS-485| CANbus (Any one) |
| Beacon/sounder | Built-in| RED flashing light with alarm sounder 95db @ 1m |
| Weather Protection | Weather Resistant IP66 Enclosure |
| Gas sample mode | Natural diffusion |
| Wiring connections | Pre-wired supplied with 2m cable |
Key Features
- On Device Display: Built-in display module to check on-site concentration
- Ultimate Durability: NEMA Certified industrial-grade enclosure made of high-grade engineering composite polymers
- Weatherproof: IP65 grade enclosure for endurance against harsh environmental conditions
- Accurate measurement: Accurate CO gas measurement with Electrochemical sensing technology
- Compact: Light-weight and the compact system can be easily installed on any wall, pole, or structure
- Real-Time Data: Continuous monitoring and real-time data transfer at configurable intervals
Product Description
The AQBot CO is a robust CO Gas Monitor that can measure Carbon Monoxide parameters in the air. This CO gas detector uses Electrochemical Sensing technology to measure total CO concentration in the air. The monitor is equipped with a CO sensor module. The sensor module is enclosed in the IP65 rugged composite enclosure to protect from harsh weather.The gas detector enclosure is NEMA 4X approved to last long in harsh industrial environments. It comes with an on-device display to check the concentration of the CO without being dependent on any external display. This fixed gas detector comes with an optional on-device Alarm siren and strobe light for quick action in case of any atmospheric hazard. It provides an early warning to potential toxic gas exposure.The AQBot CO monitor can accurately monitor CO gas concentrations in real-time. This device can integrate relevant CO modules as per the application requirement.The fixed CO monitor is lightweight and easy to install on the wall or pole with versatile mounting arrangements. It can easily integrate with existing building monitoring or plant control systems infrastructure.The CO module is easy to replace or calibrate by sending the device back to Oizom or our partner facility. The AQBot is designed for easy and inexpensive maintenance.The single-point continuous gas monitoring system AQBOT can communicate over multiple communication protocols. Multiple CO monitor networks can receive output signals to a central point after configuration. Also, it has a built-in relay module, through which the user can set up a relevant threshold to trigger the Alarming system. Thresholds for the alarm are customizable from the Air Quality Software, which comes with the AQBot CO monitor.
- Built-in Relay: Built-in relay for better process automation
- Wired Communications: Supports all industry-standard output signals like Modbus, Canbus, RS-485, RS-283
- Wireless Communications: Supports a wide range of wireless connectivity options like GSM / WiFi / LoRa / NBIoT
- Over-The-Air Update: Automatically upgradeable from a central server without any onsite visit (available for wireless connectivity)
