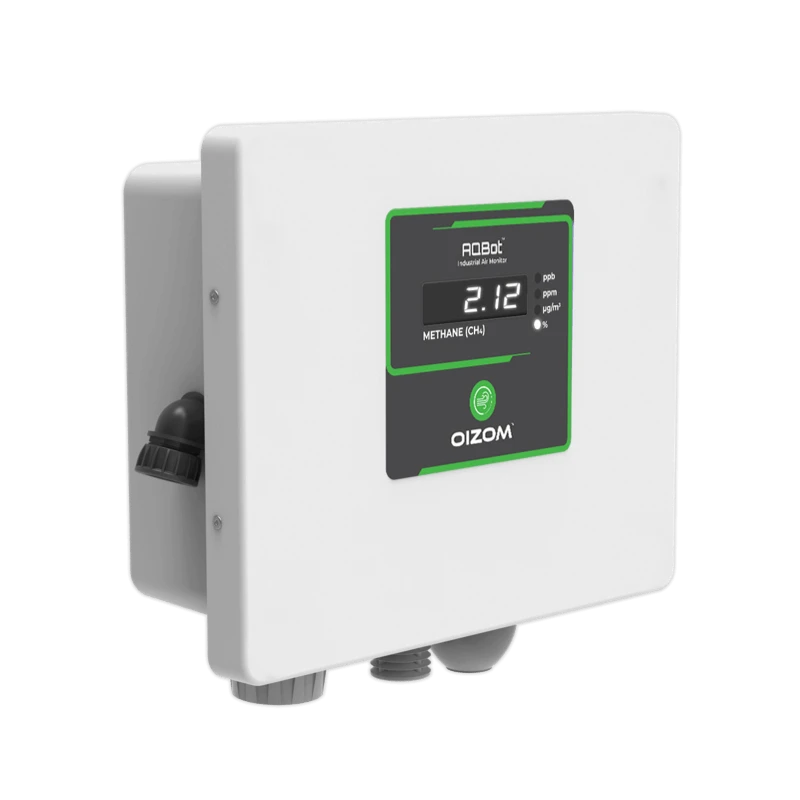

AQBot CH4 Monitor-Single Point Continuous Methane Monitor

SKU AADNS Category Gas Leak Detector Brand Oizom

Specifications

Accuracy Less Than 5%FS (at 205C/ 5020%RH)
Power Consumption 3.5 W (average)
Power Supply AC 90VAC- 265VAC 50/60Hz
Relay outputs 2 programmable relays| volt free relay contacts (1NO| 1 NC)
Memory 2GB RAM| 8GB eMMC ROM
Analog Output 1 x 4~20mA Current Loop with 12-bit Resolution
Sensor life 2 years
Warm up time 1 hour (cold start) for gas monitoring
Processor Quad-Core ARM Cortex A-72
Internal Data Storage Up to 12 months
Device Interface On-device software| API| Display
Display Specification 6 digit 7 Segment Display
Response Time (T90) Less Than 60 Seconds
Signal refresh rate 5 Seconds
Wireless Communications Global 2G/3G/4G| LoRa| LTE| NB-IoT| Sigfox| Wifi (Any one)
Wired Communications Ethernet| MODBUS TCP| MODBUS RTU| RS-485| CANbus (Any one)
Beacon/sounder Built-in| RED flashing light with alarm sounder 95db @ 1m
Gas sample mode Natural diffusion
Wiring connections Pre-wired supplied with 2m cable

Key Features

  • On Device Display: Built-in display module to check on-site concentration
  • Ultimate Durability: NEMA Certified industrial-grade enclosure made of high-grade engineering composite polymers
  • Weatherproof: IP65 grade enclosure for endurance against harsh environmental conditions
  • Accurate measurement: Accurate CH4 gas measurement with NDIR technology
  • Compact: Light-weight and the compact system can be easily installed on any wall, pole, or structure
  • Real-Time Data: Continuous monitoring and real-time data transfer at configurable intervals

Product Description

The AQBot CH4 is a robust CH4 Gas Monitor that can measure methane levels in the air. This CH4 gas detector uses NDIR technology to measure CH4 concentration in the air. The industrial methane monitor is equipped with a nondispersive infrared absorption (NDIR) sensor. This sensor module is enclosed in the IP65 rugged composite enclosure to protect from harsh weather.The AQBot enclosure is NEMA 4X approved to last long in harsh industrial environments. It comes with an on-device display to check CH4 concentration without being dependent on any external display. This fixed methane gas detector comes with an optional on-device alarm siren and strobe-light for quick action in case of any atmospheric hazard. It provides an early warning to potential toxic gas exposure.The AQBot CH4 monitor can accurately monitor CH4 gas concentrations in real-time. This industrial air quality monitor can integrate relevant CH4 sensor modules as per the application requirement.This industrial methane monitor is lightweight and easy to install on the wall or pole with versatile mounting arrangements. It can easily integrate with existing building monitoring or plant control systems infrastructure.The NDIR CH4 sensor module is easy to replace or calibrate by sending the device back to Oizom or our partner facility.The single-point continuous gas monitoring system AQBOT can communicate over multiple communication protocols. Multiple CH4 monitor networks can receive output signals to a central point after configuration. Also, it has a built-in relay module, through which the user can set up a relevant threshold to trigger the Alarming system. Thresholds for the alarm are customizable from the Air Quality Software, which comes with AQBot CH4 monitor.ID-OZCH4_1 PARAMETER- METHANE (CH4) RANGE- 500-1500 PPM RESOLUTION- 1 PPM
  • Built-in Relay: Built-in relay for better process automation
  • Wired Communications: Supports all industry-standard output signals like Modbus, Canbus, RS-485, RS-283
  • Wireless Communications: Supports a wide range of wireless connectivity options like GSM / WiFi / LoRa / NBIoT
  • Over-The-Air Update: Automatically upgradeable from a central server without any onsite visit (available for wireless connectivity)
