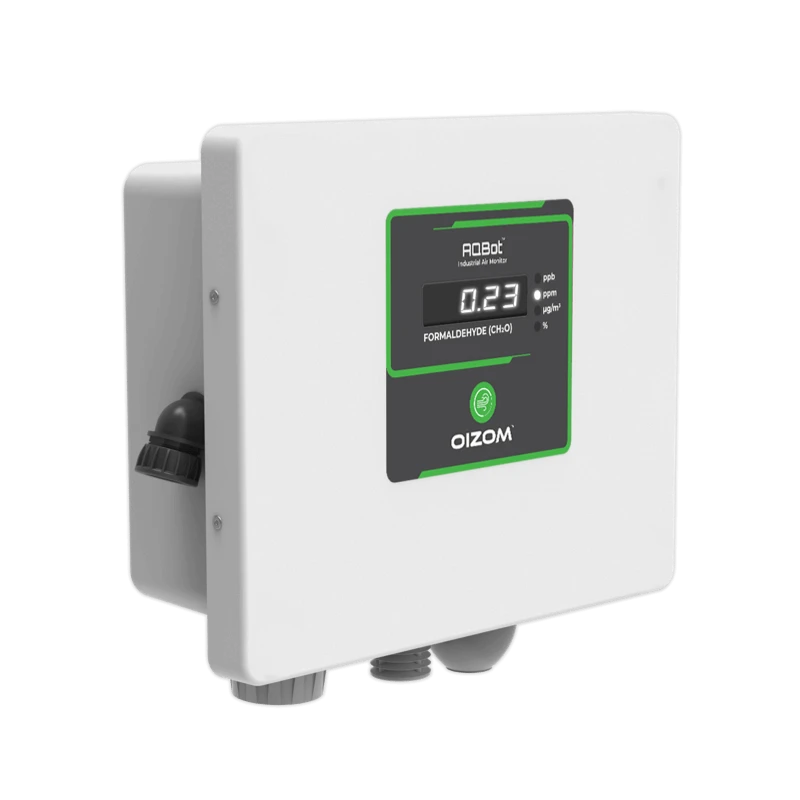

AQBot CH2O Monitor-Single Point Continuous CH2O Monitor
Specifications
| Accuracy | Less Than 5%FS (at 205C/ 5020%RH) |
|---|---|
| Power Consumption | 3.5 W (average) |
| Power Supply | AC 90VAC- 265VAC 50/60Hz |
| Relay outputs | 2 programmable relays| volt free relay contacts (1NO| 1 NC) |
| Memory | 2GB RAM| 8GB eMMC ROM |
| Housing | NEMA-4X Fire-retardant FRP enclosure |
| Analog Output | 1 x 4~20mA Current Loop with 12-bit Resolution |
| Sensor life | 2 years |
| Warm up time | 1 hour (cold start) for gas monitoring |
| Processor | Quad-Core ARM Cortex A-72 |
| Installation method | Wall mount / Pole mount |
| Internal Data Storage | Up to 12 months |
| Device Interface | On-device software| API| Display |
| Display Specification | 6 digit 7 Segment Display |
| Response Time (T90) | Less Than 60 Seconds |
| Signal refresh rate | 5 Seconds |
| Wireless Communications | Global 2G/3G/4G| LoRa| LTE| NB-IoT| Sigfox| Wifi (Any one) |
| Wired Communications | Ethernet| MODBUS TCP| MODBUS RTU| RS-485| CANbus (Any one) |
| Beacon/sounder | Built-in| RED flashing light with alarm sounder 95db @ 1m |
| Weather Protection | Weather Resistant IP66 Enclosure |
| Gas sample mode | Natural diffusion |
| Wiring connections | Pre-wired supplied with 2m cable |
Key Features
- On Device Display: Built-in display module to check on-site concentration
- Ultimate Durability: NEMA Certified industrial-grade enclosure made of high-grade engineering composite polymers
- Weatherproof: IP65 grade enclosure for endurance against harsh environmental conditions
- Accurate measurement: Accurate Formaldehyde gas measurement with Electrochemical sensing technology
- Compact: Light-weight and the compact system can be easily installed on any wall, pole, or structure
- Real-Time Data: Continuous monitoring and real-time data transfer at configurable intervals
Product Description
The AQBot CH2O is a robust CH2O Gas Monitor that can measure formaldehyde levels in the air. This CH2O gas detector uses electrochemical sensing technology to measure CH2O concentration in the air. The industrial formaldehyde monitor is equipped with an electrochemical sensor. This sensor module is enclosed in the IP65 rugged composite enclosure to protect from harsh weather.The AQBot enclosure is NEMA 4X approved to last long in harsh industrial environments. It comes with an on-device display to check CH2O concentration without being dependent on any external display. This fixed formaldehyde gas detector comes with an optional on-device alarm siren and strobe-light for quick action in case of any atmospheric hazard. It provides an early warning to potential toxic gas exposure.The AQBot CH2O monitor can accurately monitor CH2O gas concentrations in real-time. This industrial air quality monitor can integrate relevant CH2O sensor modules as per the application requirement.This industrial formaldehyde monitor is lightweight and easy to install with versatile mounting arrangements on the wall or pole. It can easily integrate with existing building monitoring or plant control systems infrastructure.The electrochemical CH2O sensing module can easily be replaceable. The operator can also calibrate by sending the device back to Oizom or our partner facility.The single-point continuous gas monitoring system AQBOT can communicate over multiple communication protocols. Multiple CH2O monitor networks can receive output signals to a central point after configuration. Also, it has a built-in relay module, through which the user can set up a relevant threshold to trigger the Alarming system. The AQBot comes with pre-set threshold values for alarm. However, users can customize it from the air monitoring software Envizom.
- Built-in Relay: Built-in relay for better process automation
- Wired Communications: Supports all industry-standard output signals like Modbus, Canbus, RS-485, RS-283
- Wireless Communications: Supports a wide range of wireless connectivity options like GSM / WiFi / LoRa / NBIoT
- Over-The-Air Update: Automatically upgradeable from a central server without any onsite visit (available for wireless connectivity)
