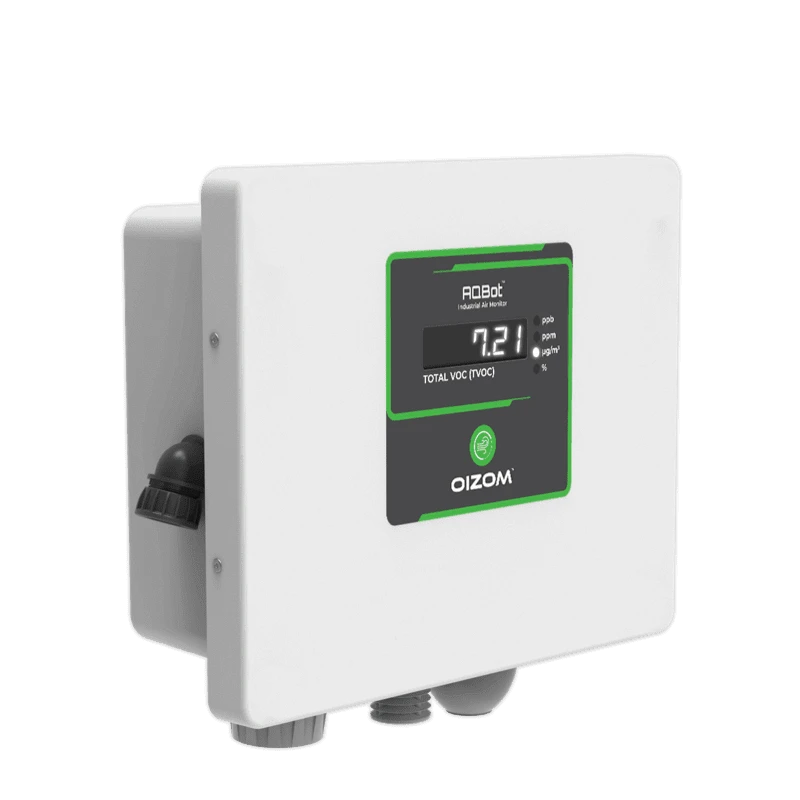

AQBot VOC Monitor-Single Point Continuous VOC Monitor
Specifications
| Accuracy | Less Than 5%FS (at 205C/ 5020%RH) |
|---|---|
| Power Consumption | 3.5 W (average) |
| Power Supply | AC 90VAC- 265VAC 50/60Hz |
| Relay outputs | 2 programmable relays| volt free relay contacts (1NO| 1 NC) |
| Memory | 2GB RAM| 8GB eMMC ROM |
| Housing | NEMA-4X Fire-retardant FRP enclosure |
| Analog Output | 1 x 4~20mA Current Loop with 12-bit Resolution |
| Sensor life | 2 years |
| Warm up time | 1 hour (cold start) for gas monitoring |
| Processor | Quad-Core ARM Cortex A-72 |
| Installation method | Wall mount / Pole mount |
| Internal Data Storage | Up to 12 months |
| Device Interface | On-device software| API| Display |
| Display Specification | 6 digit 7 Segment Display |
| Response Time (T90) | Less Than 60 Seconds |
| Signal refresh rate | 5 Seconds |
| Wireless Communications | Global 2G/3G/4G| LoRa| LTE| NB-IoT| Sigfox| Wifi (Any one) |
| Wired Communications | Ethernet| MODBUS TCP| MODBUS RTU| RS-485| CANbus (Any one) |
| Beacon/sounder | Built-in| RED flashing light with alarm sounder 95db @ 1m |
| Weather Protection | Weather Resistant IP66 Enclosure |
| Gas sample mode | Natural diffusion |
| Wiring connections | Pre-wired supplied with 2m cable |
Key Features
- On Device Display: Built-in display module to check on-site concentration
- Ultimate Durability: NEMA Certified industrial-grade enclosure made of high-grade engineering composite polymers
- Weatherproof: IP65 grade enclosure for endurance against harsh environmental conditions
- Accurate measurement: Accurate VOC gas measurement with PID sensing technology
- Compact: Light-weight and the compact system can be easily installed on any wall, pole, or structure
- Real-Time Data: Continuous monitoring and real-time data transfer at configurable intervals
Product Description
The AQBot VOC is a robust VOC Gas Monitor that can measure Volatile Organic Compounds in the air. This VOC gas detector uses photoionization detection (PID) technology to measure total volatile organic compounds in the air. This sensor module is enclosed in the IP65 rugged composite enclosure to protect from harsh weather.The AQBot enclosure is NEMA 4X approved to last long in harsh industrial environments. It comes with an on-device display to check the concentration of the VOC without being dependent on any external display. This fixed gas detector comes with an optional on-device Alarm siren and strobe-light for quick action in case of any atmospheric hazard. It provides an early warning to potential toxic gas exposure.The AQBot VOC monitor can accurately monitor VOC gas concentrations in real-time. This fixed VOC monitor can integrate relevant PID VOC modules as per the application requirement.The fixed VOC monitor is lightweight and easy to install on the wall or pole with versatile mounting arrangements. It can easily integrate with existing building monitoring or plant control systems infrastructure.The PID VOC sensing module can easily replace or calibrate by sending the device back to Oizom or our partner facility. One can also calibrate the device on-site with the help of the calibration hood and gas cylinder.The single-point continuous gas monitoring system AQBOT can communicate over multiple communication protocols. Multiple VOC monitor networks can receive output signals to a central point after configuration. Also, it has a built-in relay module, through which the user can set up a relevant threshold to trigger the Alarming system. Entries for the alarm are customizable from the Air Quality Software, which comes with an AQBot VOC monitor.
- Built-in Relay: Built-in relay for better process automation
- Wired Communications: Supports all industry-standard output signals like Modbus, Canbus, RS-485, RS-283
- Wireless Communications: Supports a wide range of wireless connectivity options like GSM / WiFi / LoRa / NBIoT
- Over-The-Air Update: Automatically upgradeable from a central server without any onsite visit (available for wireless connectivity)
