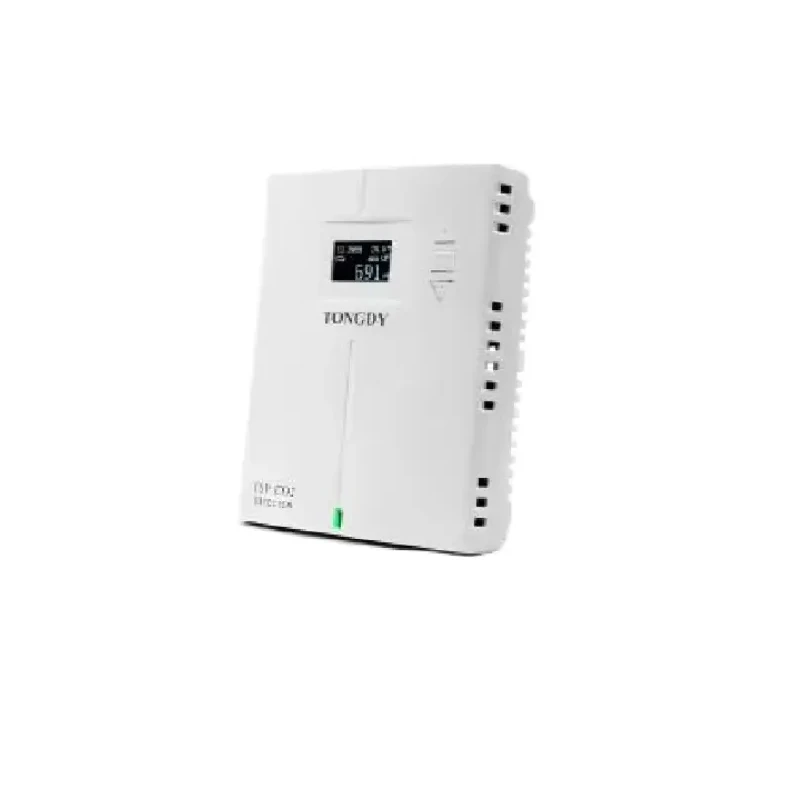

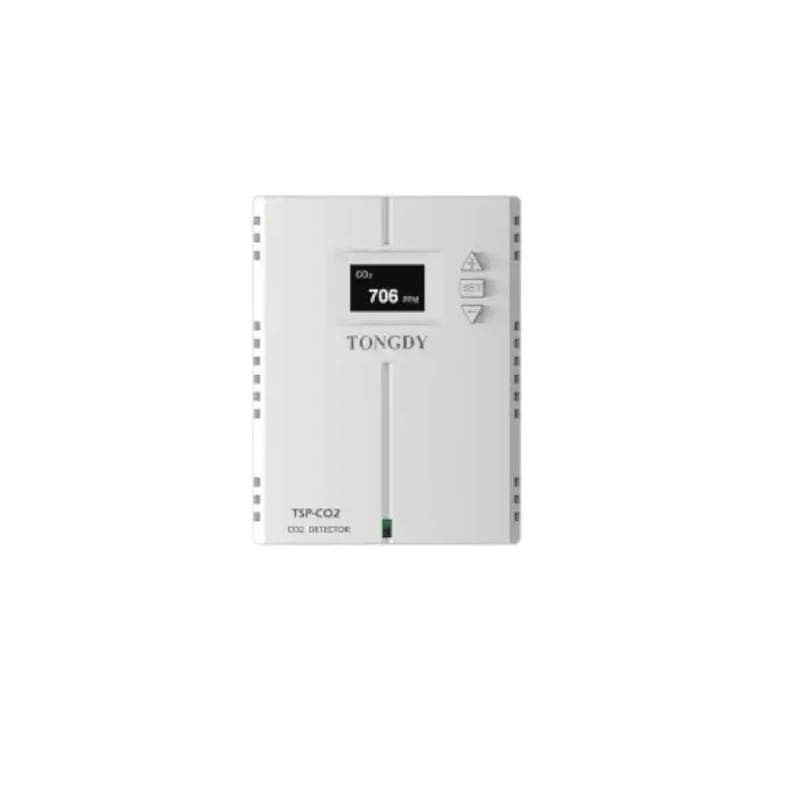

Carbon Dioxide Meter With PID Output And VAV Control

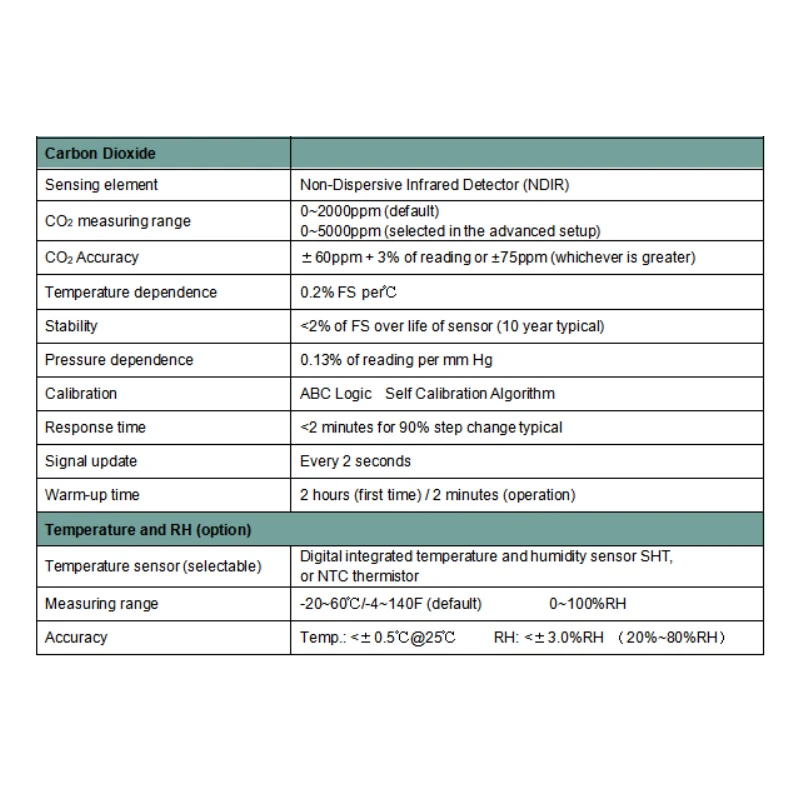

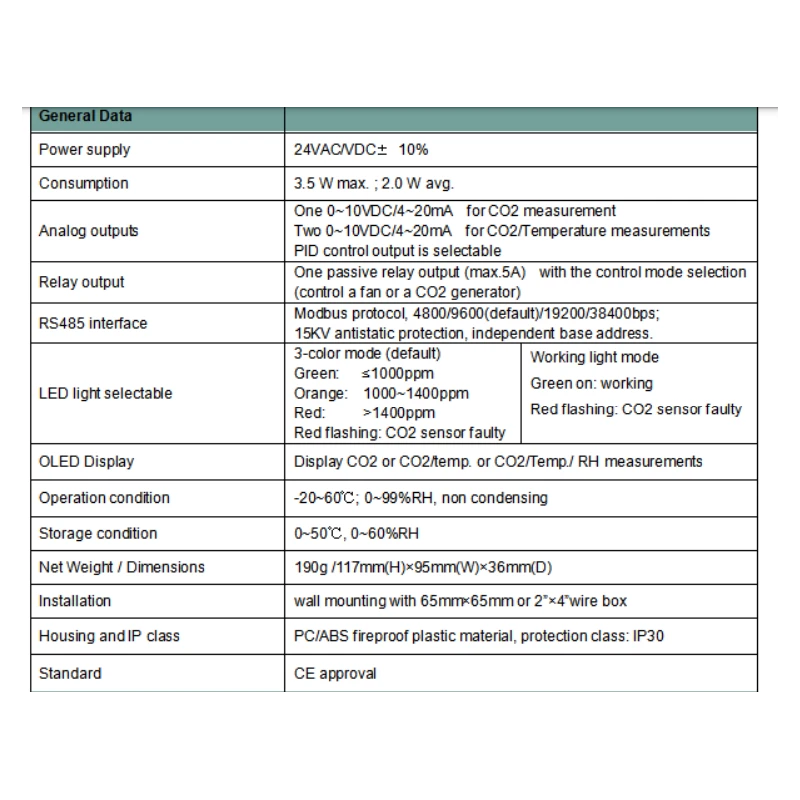

Specifications
| Power Supply | 24VAC/VDC+- 10% |
|---|---|
| Analog outputs | One 0~10VDC/4~20mA for CO2 measurement |
| INSTALLATION | wall mounting with 65mmx65mm |
| Standard | CE approval |
| Series | TSP-CO2 |
| Consumption | 3.5 W max. | 2.0 W avg. |
| Housing and IP class | PC/ABS fireproof plastic Material protection class IP30 |
Key Features
- The 3-color LED indicates three CO2 level ranges
- Optional OLED screen displays CO2/Temp/RH measurements
Product Description
Carbon Dioxide Meter With PID Output And VAV Control, designed for real-time measuring ambiance carbon dioxide and temperature and relative humidity NDIR infrared CO2 sensor inside with special Self Calibration. It makes CO2 measurement more accurate and more reliable. Up to 10 years lifetime of CO2 sensor. Provide one or two 0~10VDC/4~20mA linear output for CO2 or CO2/temp.The PID control output can be selected for CO2 measurement. One passive relay output is optional. It can control a fan or a CO2 generator. The control mode is easily selected
- Buzzer alarm for the relay control models
- Modbus RS485 communication interface
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power supply requirement is 24VAC/VDC with a tolerance of ±10%.
It provides one analog output that can be either 0~10VDC or 4~20mA for CO2 measurement.
The maximum power consumption is 3.5 W, with an average consumption of 2.0 W.
It is designed for wall mounting with a standard size of 65mm x 65mm.
The housing is made of PC/ABS fireproof plastic, and it has a protection class of IP30.
Yes, it has CE approval as a standard certification.
Yes, it features a Modbus communication interface.
It includes a buzzer alarm for the relay control models.
The optional OLED screen can display CO2 levels, temperature, and relative humidity measurements.
This model belongs to the TSP-CO2 series.
