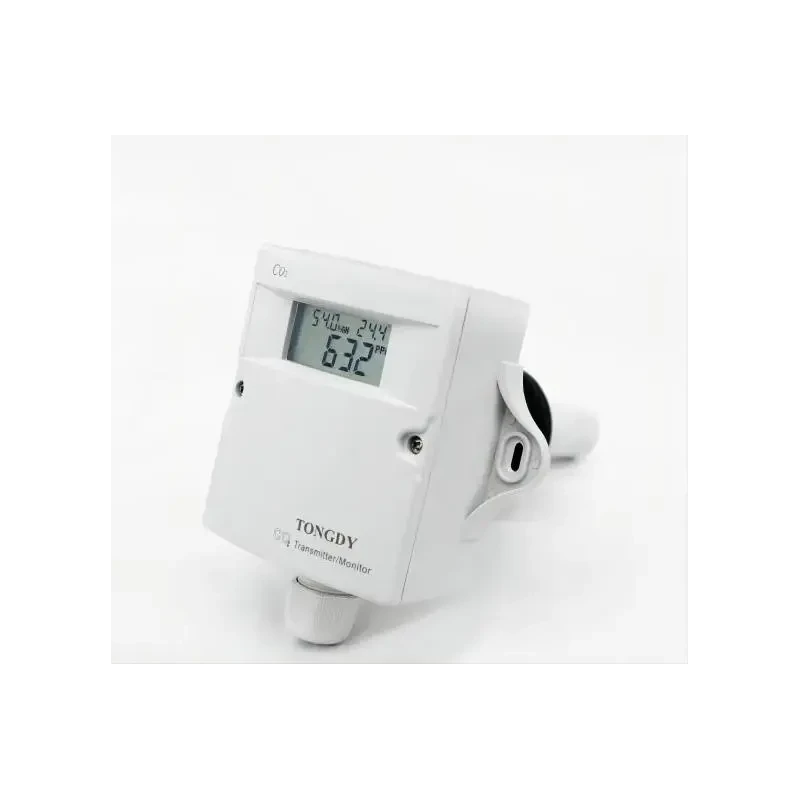

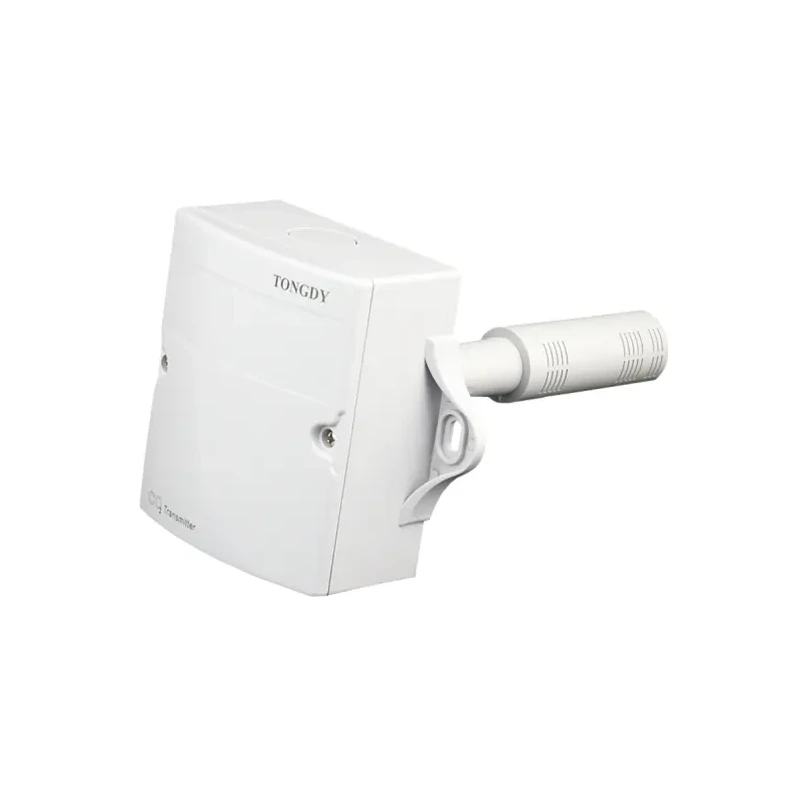

In-duct CO2 and T/RH Transmitter TG9XX8

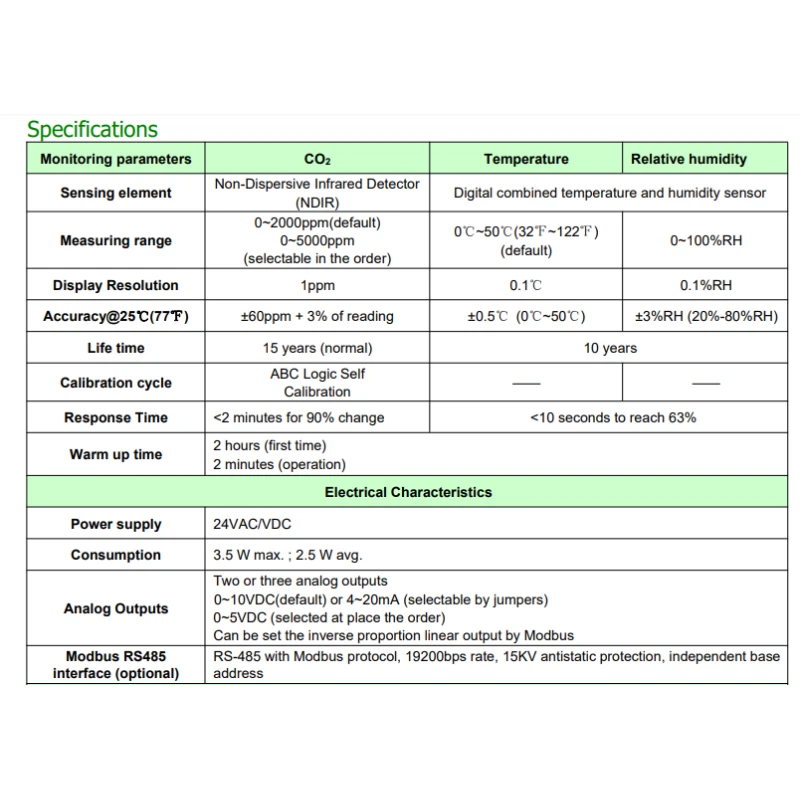

Specifications
| Power Supply | 24VAC/VDC |
|---|---|
| Model | TG9XX8 |

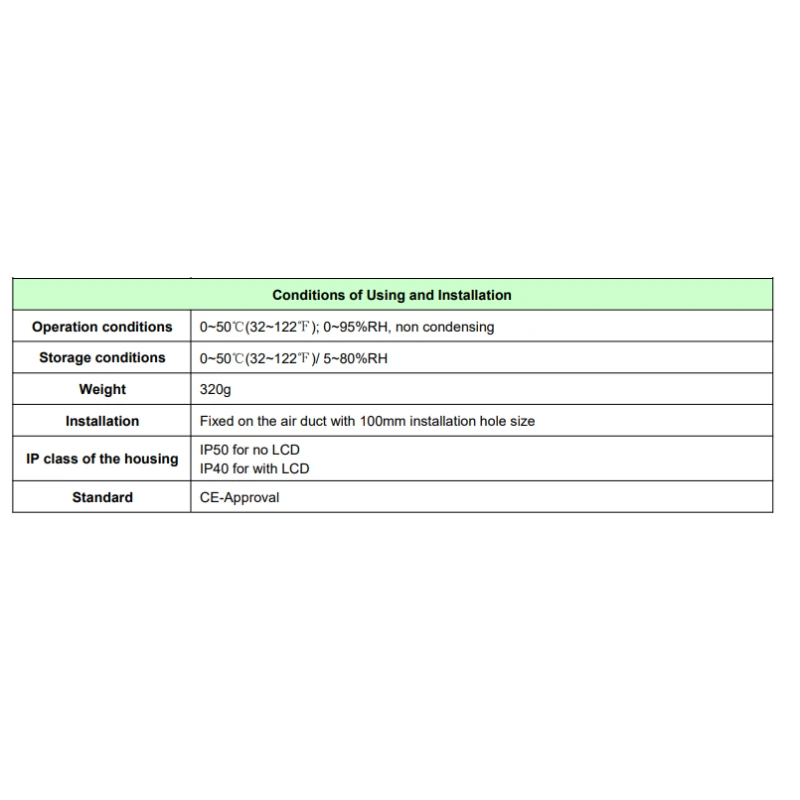

| INSTALLATION | Fixed on the air duct with 100mm installation hole size |
| Standard | CE-Approval |
| Consumption | 3.5 W max. | 2.5 W avg |
| IP class of the housing | IP50 for no LCD IP40 for with LCD |
| Modbus RS485 interface (optional) | RS-485 with Modbus protocol 19200bps rate 15KV antistatic protection independent baseaddress |
Key Features
- Real time detection carbon dioxide of the air duct
- Detection high accuracy temperature and relative humidity
- Smart sensor probe can be easily installed into any airduct
Product Description
In-duct CO2 and T/RH Transmitter TG9XX8, Designed for real-time detecting carbon dioxide,temperature, or relative humidity in air ducts. NDIR infrared CO2 sensor inside with special SelfCalibration and up to 15 years lifetime. It makes CO2 measurement more accurate and reliable. Digital temperature & humidity sensor provides high-accuracy measurement in full range. Provides up to 3 analog outputs (0~10VDC or 4~20mAor 0~5VDC) for CO2 temperature and relative humidity. Modbus RS485 communication interface
- With the water-proof and porous film around the sensor probe
- Up to 3xanalog linear outputs for measurements
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It requires a power supply of 24VAC/VDC.
The maximum power consumption is 3.5 W, with an average consumption of 2.5 W.
It is designed to be fixed on the air duct with a 100mm installation hole size.
The housing has an IP50 rating when there is no LCD and an IP40 rating when it includes an LCD.
It provides up to 3 analog outputs, which can be configured as 0~10VDC, 4~20mA, or 0~5VDC for CO2, temperature, and relative humidity.
It holds CE-Approval certification.
The specifications do not explicitly state environmental conditions, but it is designed for use in air ducts.
It is designed for real-time detection of carbon dioxide, temperature, and relative humidity in air ducts.
It is intended for monitoring air quality and indoor climate within HVAC systems.
The unit has a maximum consumption of 3.5 W and an average consumption of 2.5 W.
