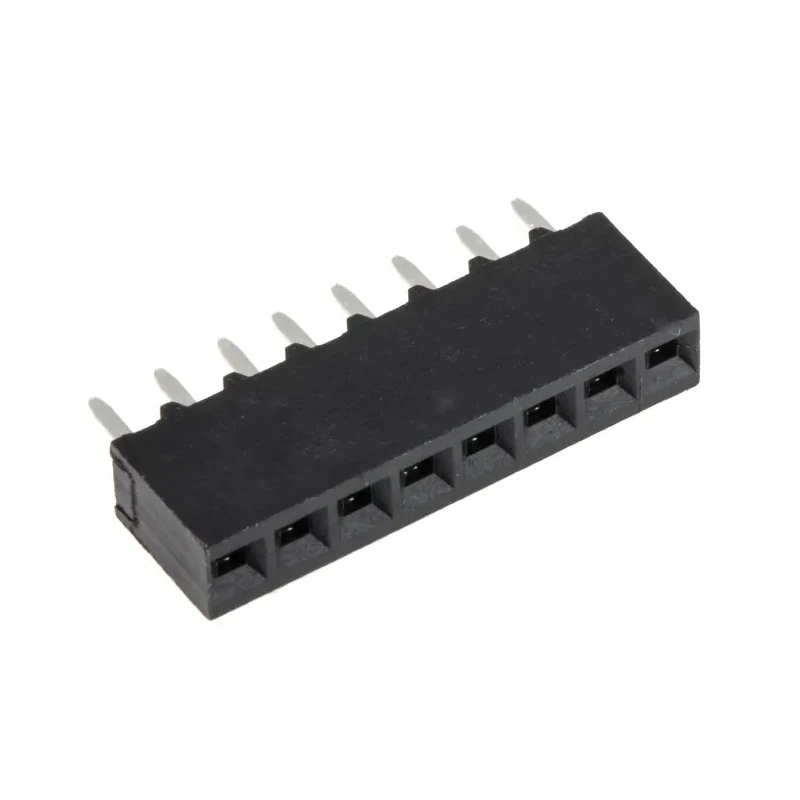

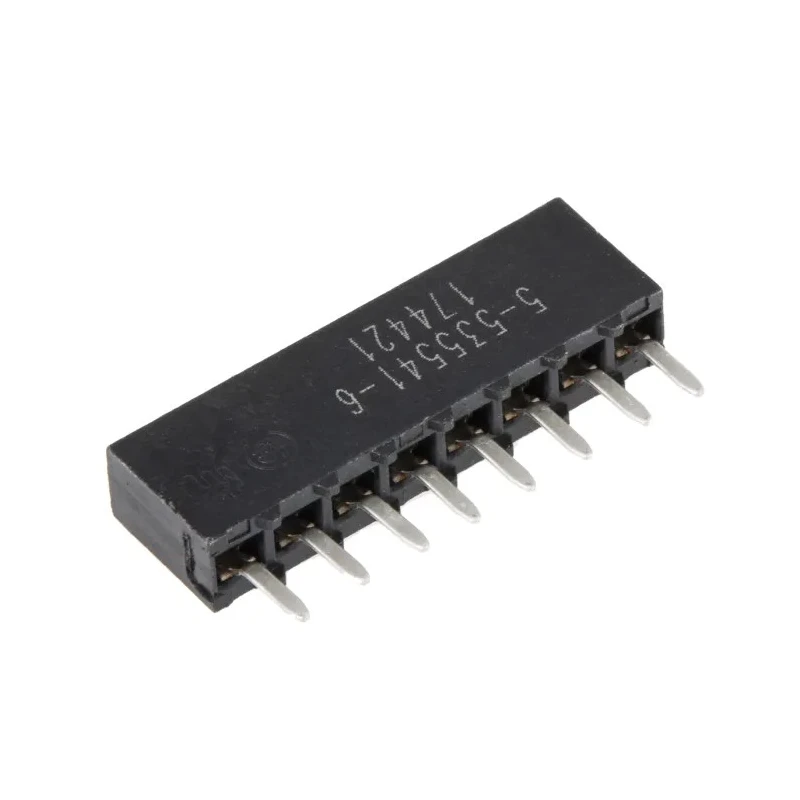

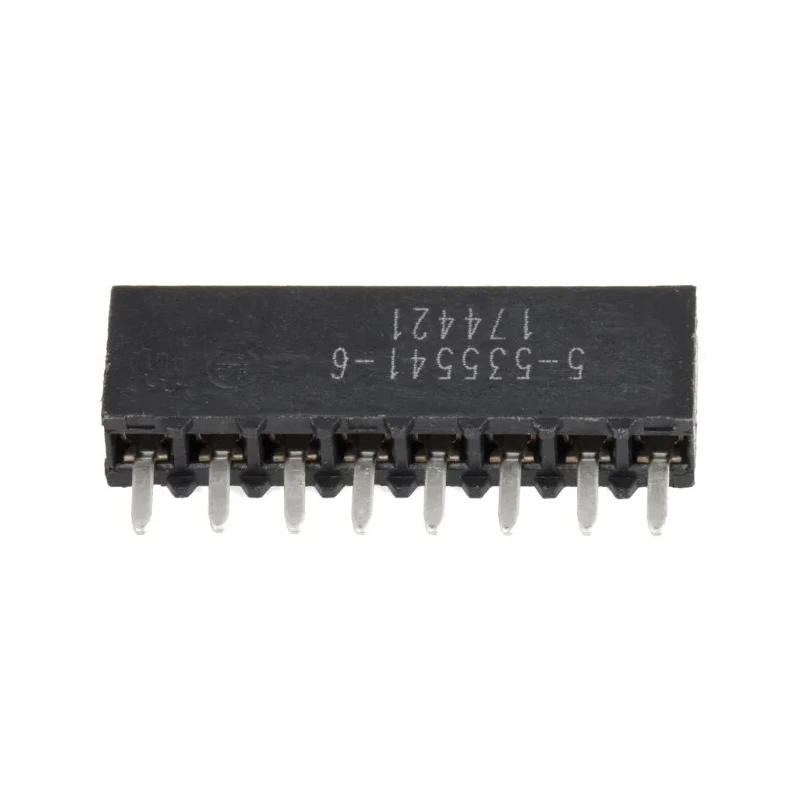

TE Connectivity AMPMODU MOD IV Series Straight Through Hole PCB Socket 8-Contact 1 Row 2.54 mm Pitch Solder 5-535541-6
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 333V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 12A |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Gold |
| Series | AMPMODU MOD IV |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Constructed with black UL 94V-0 rated glass-filled thermoplastic housing.
- Supports a current rating of 12 amperes at 333 volts.
- Features gold-plated female contacts ensuring durable and strong connectivity.
- Designed for through-hole mounting with a straight orientation.
- Operates efficiently in temperatures ranging from -65°C to 105°C.
- Compatible with AMPMODU MOD IV Series connectors for low profile applications.
- Ideal for industrial, electronic manufacturing, and PCB assembly uses.
Product Description
TE Connectivity 5-535541-6 AMPMODU MOD IV Series Straight Through Hole PCB Socket is an 8-contact, single row, board-to-board connector designed with a 2.54 mm pitch. It is engineered for high-performance and reliability in electronic components and assemblies.
The socket housing is produced from black UL 94V-0 rated glass-filled thermoplastic, making it flame retardant and durable for demanding environments. The contacts are gold-plated female type, providing excellent conductivity and corrosion resistance.
This PCB socket supports a maximum current of 12A and a voltage of 333V, suitable for various power and signal applications. Its through-hole mount and straight orientation allow for secure and precise PCB integration. Designed to withstand operating temperatures from -65°C to 105°C, it is fit for industrial and electronic manufacturing applications.
Black UL 94V-0 rated glass-filled thermoplastic housing ensures flame resistance. Gold-plated female contacts provide excellent connectivity and durability. Single row with 8 contacts arranged at 2.54 mm pitch for precise board alignment.
Through hole mounting enables stable PCB soldering and mechanical strength. High current rating of 12A at 333V accommodates varying electrical requirements. Wide operating temperature range from -65°C to 105°C for diverse industrial applications.
Part of the AMPMODU MOD IV Low Profile Series for compact board designs.
This PCB socket is widely used in industrial automation, communication equipment, instrumentation, and manufacturing sectors. It offers reliable and compact connectivity solutions for board-to-board applications.
Choose TE Connectivity AMPMODU MOD IV sockets for efficient, high-quality electronic manufacturing components listed in the PCB Sockets category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket supports a maximum current rating of 12 amperes.
It is rated for a maximum voltage of 333 volts.
The contacts are arranged at a pitch of 2.54 mm.
This model is designed for through-hole mounting, ensuring stable PCB soldering.
The housing is constructed from black UL 94V-0 rated glass-filled thermoplastic, which is flame retardant.
It features gold-plated female contacts, providing excellent conductivity and corrosion resistance.
It operates efficiently in temperatures ranging from -65°C to 105°C.
This model has a total of 8 contacts arranged in a single row.
The socket is designed with a straight orientation for easy integration onto PCBs.
It is widely used in industrial automation, communication equipment, instrumentation, and manufacturing sectors.
Yes, it is part of the AMPMODU MOD IV Low Profile Series, designed for compact board designs.
The termination type for this socket is solder, suitable for secure electrical connections.
