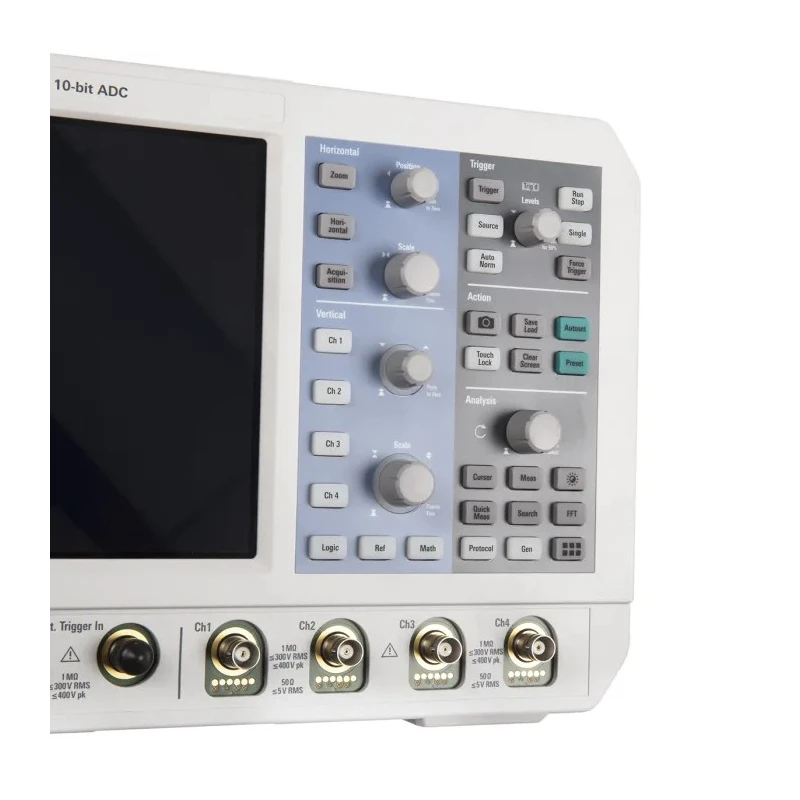

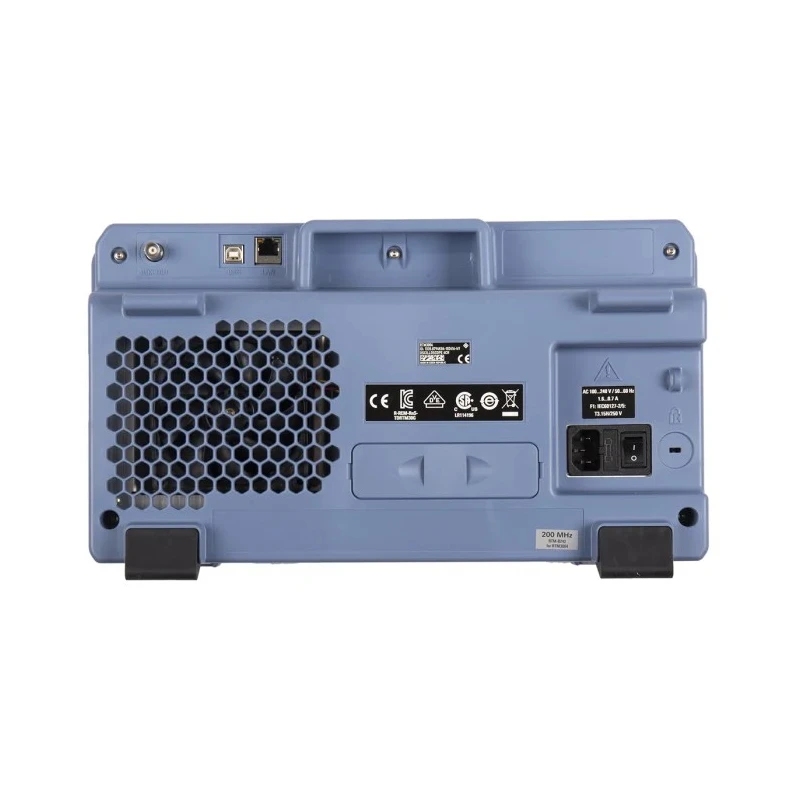

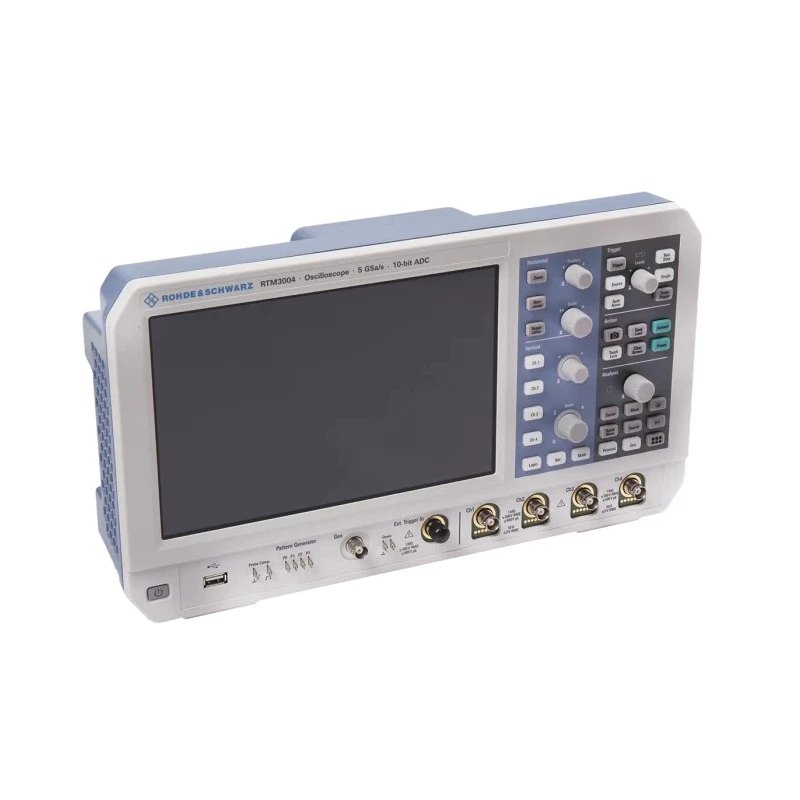

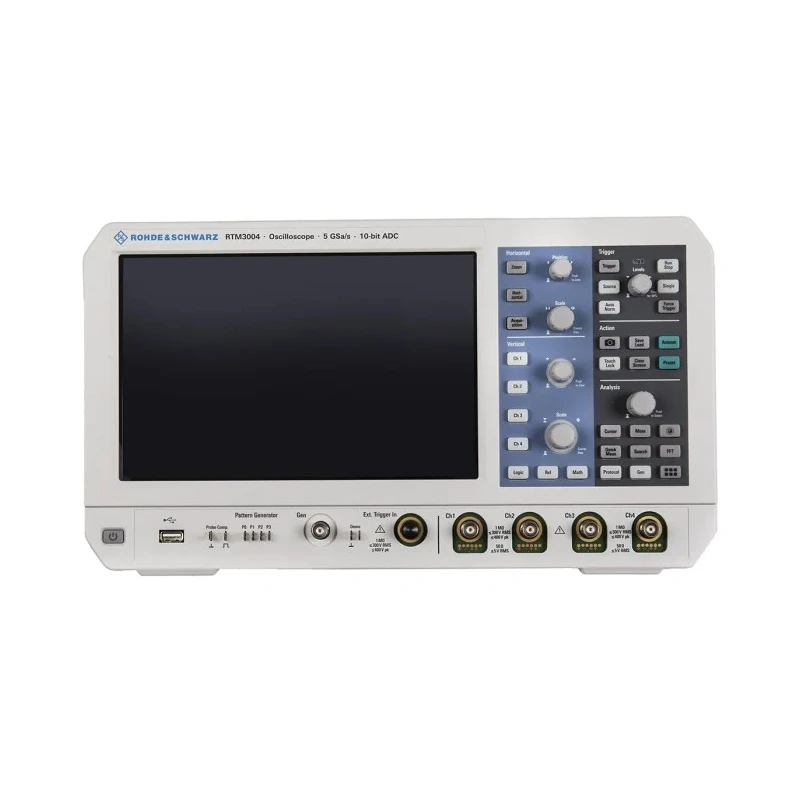

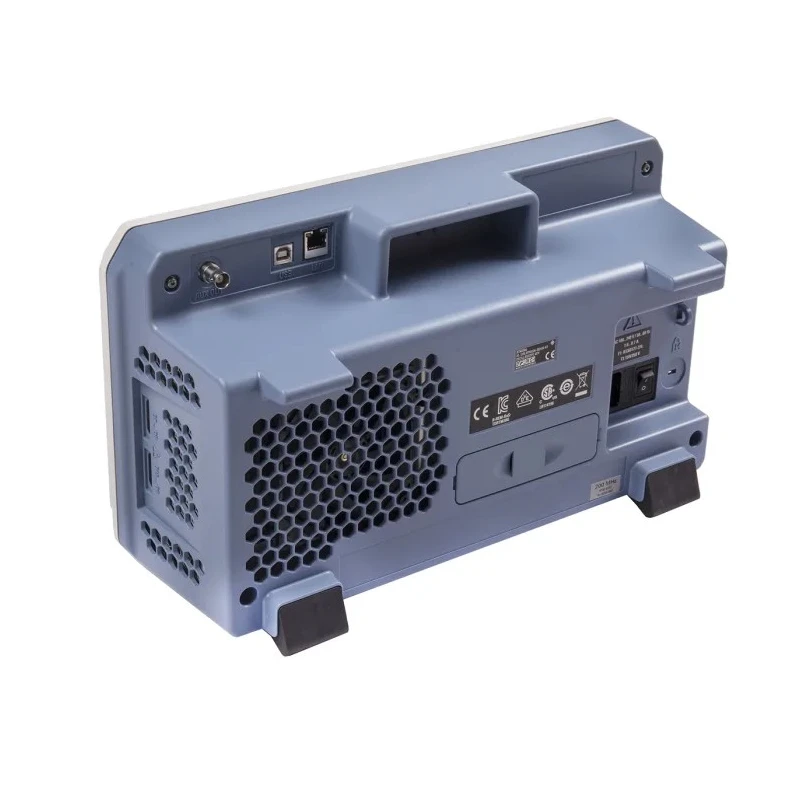

Rohde & Schwarz 200 MHz 4-Channel Bench Oscilloscope RTM3000
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | Rohde & Schwarz |
| Height | 220mm |
| Length | 390mm |
| Model | RTM3000 |
| Width | 152mm |
| Bandwidth | 200MHz |
| Series | RTM3000 |
| Number Of Channels | 4 |
| Vertical Resolution | 10 bit, 16 bit |
| Rise Time | 1.75ns |
| Interface Type | CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, USB |
| Oscilloscope Type | Bench |
| Minimum Vertical Sensitivity | 0.5mV/div |
| Minimum Time Base | 0.5ns/div |
| Maximum Vertical Sensitivity | 10V/div |
| Maximum Time Base | 500s/div |
Key Features
- Equipped with four analogue channels for versatile signal capture.
- High vertical sensitivity with a maximum of 10 V/div and minimum 0.5 mV/div.
- Large 10.1 inch capacitive touch display with 1280 x 800 resolution.
- Sampling rate up to 5 GS/s with memory depth of 40 million samples.
- 10-bit ADC for sharper waveforms and detailed signal analysis.
- Includes interfaces CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, and USB.
- Functions as a logical and protocol analyser along with waveform and pattern generator.
- Ideal for education, R&D troubleshooting, production testing, and service technicians.
Product Description
Rohde & Schwarz RTM3K-24 Bench Oscilloscope is a 200 MHz bandwidth digital measuring instrument designed for precise and detailed waveform analysis. Featuring four analogue channels and a high-resolution 10.1 inch capacitive touch screen, this oscilloscope facilitates clear viewing and comprehensive testing of electrical signals with a sampling rate up to 5 GS/s and memory depth up to 40 million samples.
The instrument employs a 10-bit analogue-to-digital converter to provide sharper waveforms and enhanced signal detail, supporting precise measurements and facilitating intricate analysis tasks in various industrial and educational settings. It supports a wide array of interfaces including CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, and USB, enabling flexible connectivity with multiple devices and protocols.
Additional functions include logical and protocol analysis, waveform generation, and acting as a digital voltmeter for simultaneous measurements. The capacitive touchscreen offers gesture support similar to smartphones for intuitive and efficient operation.
This oscilloscope is well-suited for educational institutes, R&D troubleshooting, production testing, and use by service technicians requiring reliable and versatile signal analysis. Its robust build and precision capabilities make it ideal for industrial, laboratory, and commercial test environments.
Equipped with four analog channels for diverse signal testing. Offers 200 MHz bandwidth suitable for a broad range of applications. High resolution 10-bit ADC ensures detailed waveform display. Large capacitive touchscreen enhances user interaction and data visualization.
Supports multiple communication interfaces for protocol compatibility. Includes logical and protocol analyser features for digital signal evaluation. Functions as a digital voltmeter for precise electrical measurements. Ideal for professional environments requiring rigorous testing capabilities.
Compact benchtop design with dimensions of 390 mm length, 152 mm width, and 220 mm height.
Set the benchmark for your signal analysis with the Rohde & Schwarz RTM3K-24 bench Oscilloscope, designed for accuracy, versatility, and ease of use. Explore more measuring and testing instruments to meet your advanced electronics measurement needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bandwidth of this oscilloscope is 200 MHz, making it suitable for a broad range of applications.
This model is equipped with four analogue channels, allowing for versatile signal capture and analysis.
The maximum vertical sensitivity is 10 V/div, which allows for detailed signal representation.
The minimum vertical sensitivity is 0.5 mV/div, enabling the measurement of very small signals.
It has a sampling rate of up to 5 GS/s, which facilitates high-speed signal analysis.
The dimensions of the RTM3000 are 390 mm in length, 152 mm in width, and 220 mm in height.
This model supports multiple interfaces including CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, and USB for flexible connectivity.
The rise time of the RTM3000 is 1.75 ns, which is essential for capturing fast signal transitions.
In addition to waveform analysis, it functions as a logical and protocol analyser, and can also act as a digital voltmeter.
The oscilloscope offers a vertical resolution of 10 bits, with an option for 16 bits, enhancing the detail of waveform displays.
The RTM3000 is classified as a bench oscilloscope, designed for precise and detailed waveform analysis in various settings.
It is ideal for educational institutes, R&D troubleshooting, production testing, and use by service technicians requiring versatile signal analysis.
