TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size Blue 16 AWG to 14 AWG 21.82mm Length 31903

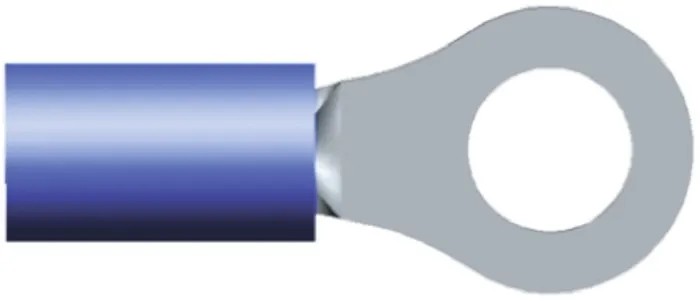

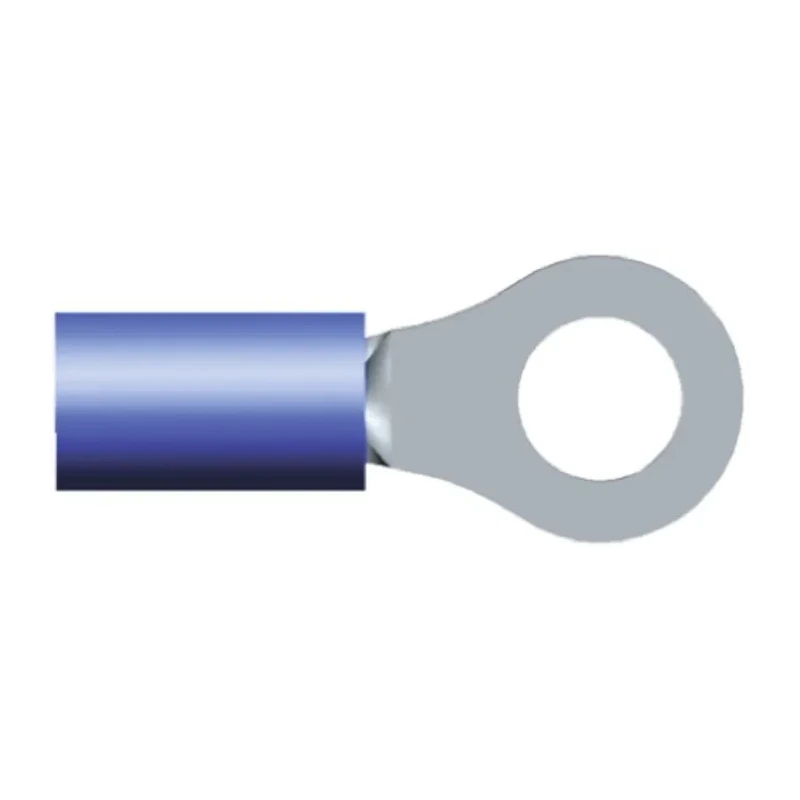

TE Connectivity 31903 PIDG Insulated Ring Terminal is engineered for reliable wire terminations featuring a pre-insulated diamond grip (PIDG) design. The terminal fits wires sized between 16 AWG and 14 AWG, with an M5 stud size, and includes a blue nylon insulation sleeve to aid wire size identification and provide enhanced insulation support.

This ring terminal boasts a high conductivity copper body with tin plating that offers excellent electrical performance and corrosion resistance. The copper sleeve within the barrel enhances wire insulation and prevents wire strand fraying. A funnelled wire entry design allows quick and precise wire insertion, ideal for automated and high-speed manufacturing processes.

The precise dimensions include an outer ring diameter of 8.71mm, inner ring diameter of 5mm, overall length of 21.82mm, and thickness of 0.84mm, providing mechanical robustness for demanding environments. The serrated wire barrel ensures maximum contact and tensile strength after crimping, yielding a reliable and uniform connection.

These PIDG ring terminals comply with demanding electrical standards and are suited for a variety of industrial environments such as instrument control panels, lighting systems, power supply units, motors, aerospace assemblies, and transportation equipment. The operating temperature range up to 105°C ensures the terminal performs safely in elevated temperature conditions.

High conductivity copper body ensures optimal electrical performance. Color-coded blue nylon insulation for quick wire size identification. Copper sleeve for improved insulation and wire strand retention. Tin plating on contacts enhances corrosion resistance.

Funnelled wire entry for efficient wire insertion. Serrated barrel design maximizes crimp reliability. Suitable for harsh industrial, automotive, aerospace, and manufacturing applications. Supports wire sizes 16 AWG to 14 AWG with M5 stud dimensions.

Maximum operating temperature of 105°C for safe use in demanding conditions. Durable construction provides consistent, reliable electrical connections.

This product is a precision electrical component designed for professional use in electronic assembly, manufacturing, maintenance, and repair. Explore more TE Connectivity Ring Terminals and related wire terminal solutions to meet diverse wiring and electrical connection requirements.
