Omron Black Tactile Switch Plunger 0.7 mm SPST 50mA 24 V dc Surface Mount B3U-3000PM

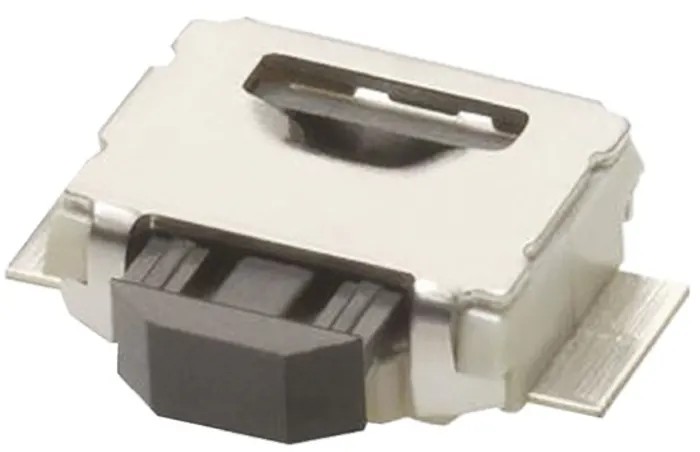

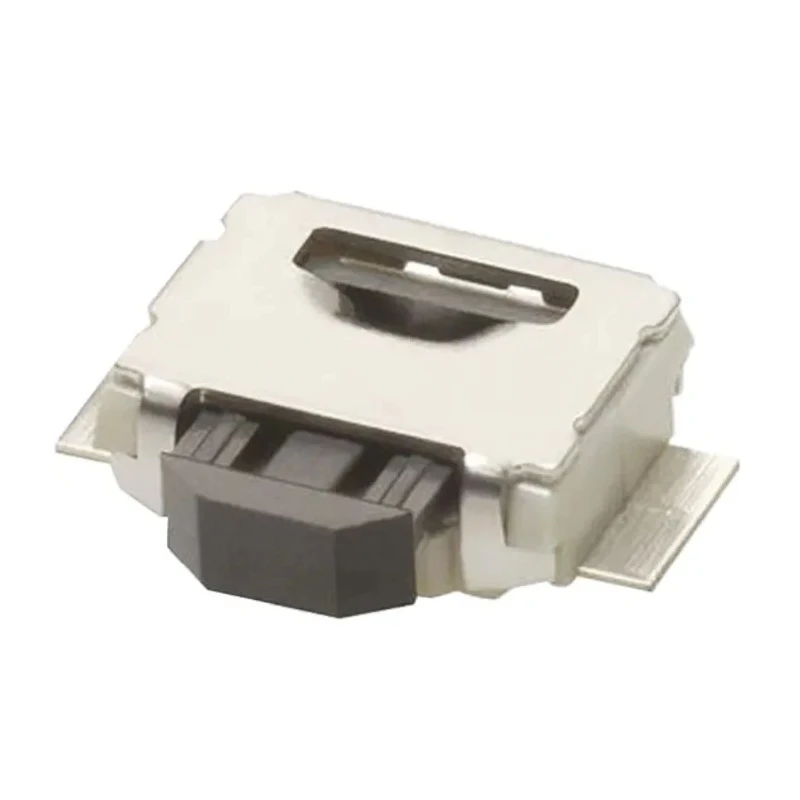

Omron B3U-3000PM is an ultra-small tactile switch plunger designed for high-density surface mount PCB applications. It features a black 0.7 mm plunger actuator with a straight orientation, providing reliable momentary SPST (Single Pole Single Throw) switch operation.

This switch supports a maximum switch contact current of 50mA and operates at a contact DC voltage of 24 V dc. Its mechanical life supports up to 100,000 operations, making it highly durable for industrial and commercial electronics.

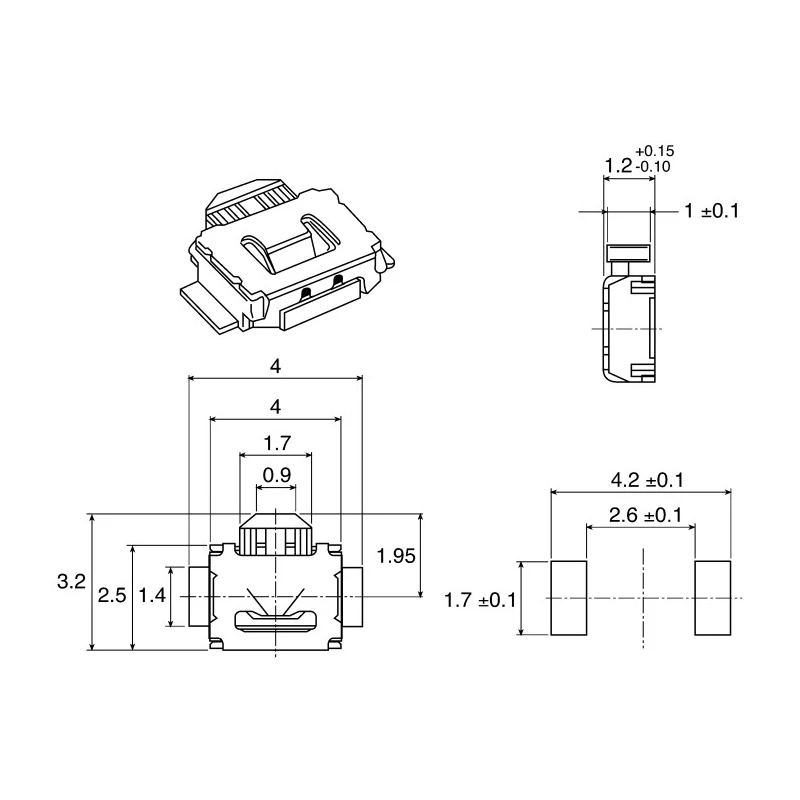

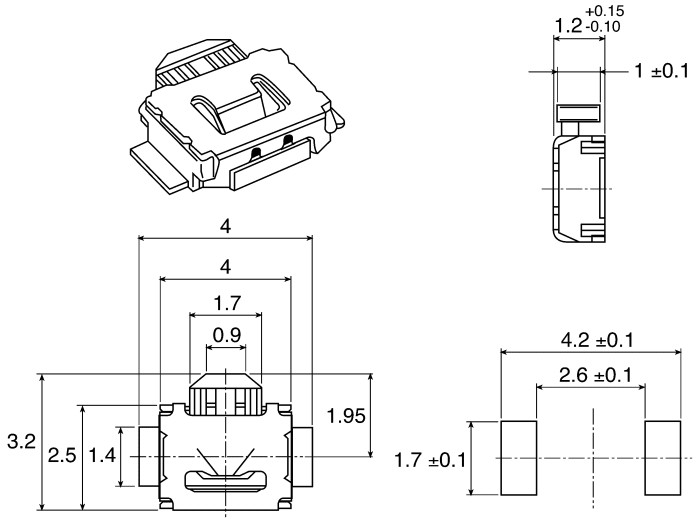

The compact dimensions of 4 mm length, 3.2 mm width, and 1.2 mm height facilitate integration into miniaturized electronic devices. The tactile switch functions reliably across a temperature range of -25°C to 70°C and conforms to RoHS standards, ensuring compliance with environmental safety regulations.

Weighing approximately 0.022 grams, this ultra-small switch is well suited for meticulous assembly on printed circuit boards, especially in applications demanding compact size and high reliability.

Typical use cases include Bluetooth headsets, hearing aids, laser pointers, blood sugar meters, and cycling computers, highlighting its versatility in consumer electronics, medical equipment, and communication devices.

Features a black plunger actuator with a straight orientation. Supports surface mount technology for PCB integration. Operates at 50mA current and 24 V dc contact voltage. Compact design with dimensions 4 mm length, 3.2 mm width, and 1.2 mm height.

Mechanical life of 100,000 operations ensuring durability. Operating temperature range from -25°C to 70°C. RoHS compliant for environmental and health safety. Lightweight at approximately 0.022 g for high-density PCB mounting.

Suitable for Bluetooth headsets, hearing aids, laser pointers, blood sugar meters, and cycling computers. Explore more Omron Tactile Switches and electronic components at EnvMart for your industrial and commercial automation needs.
