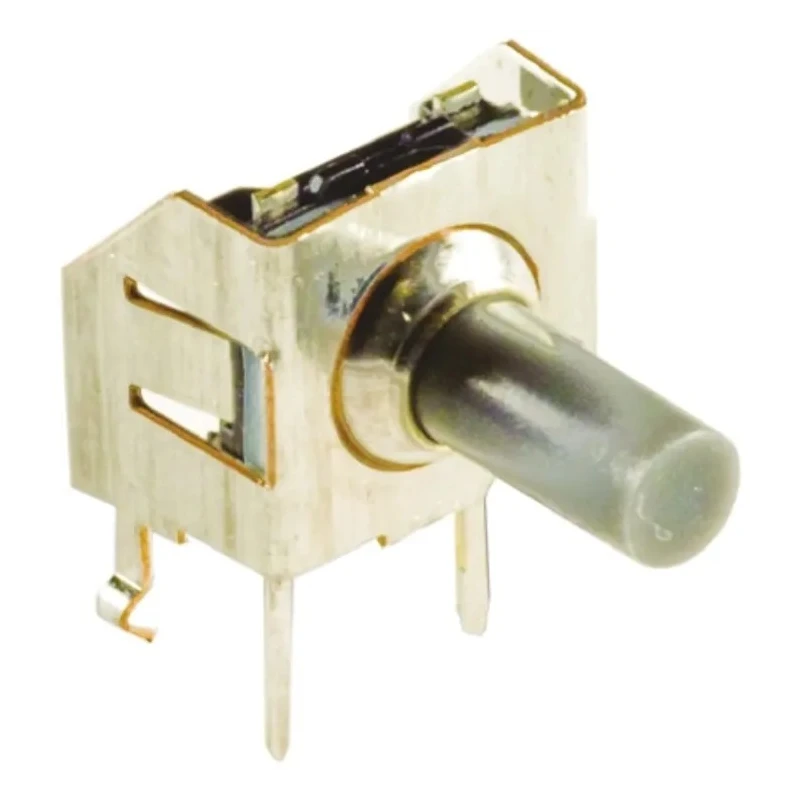

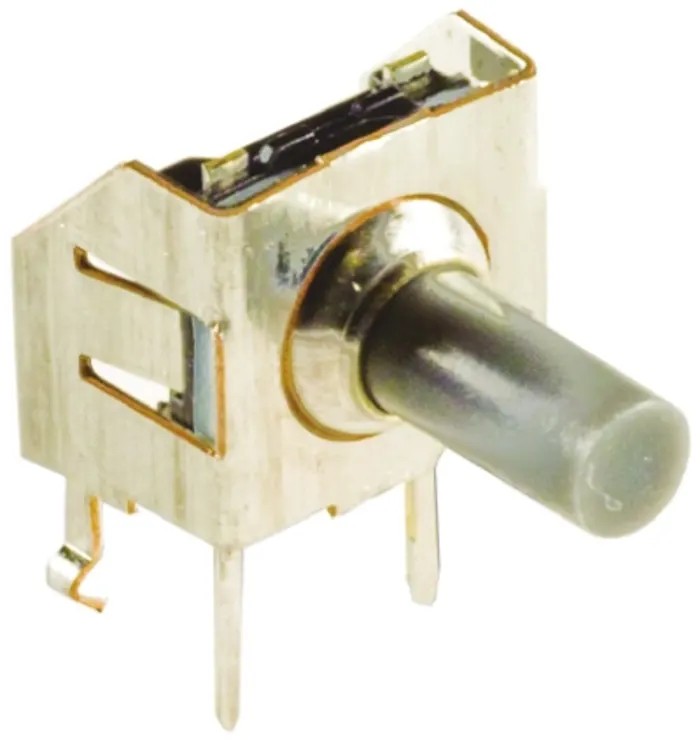

C & K IP60 Black Tactile Switch Round 6.2 mm SPST 50mA 32 V dc Through Hole KSL0V211LFT
Specifications
| Country of Origin | France |
|---|---|
| Brand | C & K |
| Height | 12.85mm |
| Length | 9.5mm |
| Model | KSL0V211LFT |
| IP Rating | IP60 |
| Width | 11.1mm |
| Mount Type | Through Hole |
| Series | KSL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | (On)-Off |
| Minimum Operating Temperature | -40°C |
| Terminal type | PC Terminal |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Actuator Length | 6.2mm |
| Contact DC Voltage | 32V dc |
| Actuator Style | Round |
| Actuator Orientation | Right Angle |
| Switch Contact Current | 50mA |
| Operating Force | 3N |
| Mechanical Life | 100000Cycles |
Key Features
- Operates with a momentary, on-off switch action suitable for precise control.
- Supports a maximum switch contact current of 50mA at 32 V dc.
- Features right angle actuator orientation with a 3N operating force for reliable feedback.
- Designed for long service life with a mechanical life of 100,000 cycles.
- Compact dimensions of length 9.5 mm, width 11.1 mm, and height 12.85 mm.
- Sealed against soldering flux and offers insulation resistance greater than 100 GΩ at 100 V dc.
- Operating temperature range from -40°C to 85°C ensuring durability in various environments.
- Manufactured in France meeting RoHS compliance standards.
Product Description
C & K KSL0V211LFT IP60 rated tactile switch is a compact and robust component featuring a black, round actuator with a length of 6.2 mm. This SPST (single pole single throw) switch supports a contact current of 50mA at 32 V dc, making it suitable for low voltage signal switching applications. The device employs a momentary switch operation with an on-off contact configuration, mounted through hole for ease of installation in printed circuit boards.
The actuator is right angled and requires an operating force of 3N to actuate, delivering high tactile feedback and reliable user control. With dimensions measuring 9.5 mm in length, 11.1 mm in width, and 12.85 mm in height, it fits well in compact electronic assemblies. The mechanical lifetime of this tactile switch is rated at 100,000 cycles, supporting extensive usage in industrial and consumer electronics.
Designed with high insulation resistance exceeding 100 GΩ at 100 V dc, the switch is sealed against soldering flux, enhancing reliability and longevity in manufacturing environments. The operating temperature spans from -40°C to 85°C, allowing performance stability under diverse environmental conditions.
As an industrial-grade product manufactured in France, this switch complies with RoHS environmental standards, reflecting its lead-free and eco-friendly design. The product is ideal for applications in electrical, automation, and control systems where precise, reliable manual input is essential.
Momentary on-off operation with SPST contact configuration. Right angle, black round actuator of 6.2 mm length. Supports 50mA contact current at 32 V dc. Through hole mounting type suitable for PCB assembly. Mechanical life of 100,000 actuation cycles ensures long-term durability.
IP60 rating provides protection against dust and particles. Wide operating temperature range from -40°C to 85°C. Insulation resistance greater than 100 GΩ at 100 V dc. RoHS compliant and manufactured in France.
This tactile switch is widely used in industrial automation systems, electronic instrumentation, telecommunications, and consumer electronics applications. Discover more Tactile Switch options and related switch components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switch contact current for this model is 50mA at 32 V dc.
It operates within a temperature range of -40°C to 85°C.
This model features a through hole mounting type, suitable for PCB assembly.
The mechanical life of this tactile switch is rated at 100,000 cycles.
The actuator style is round, and it has a right angle orientation.
It offers an insulation resistance greater than 100 GΩ at 100 V dc.
An operating force of 3N is required to actuate this model.
Yes, this switch is RoHS compliant, reflecting its lead-free and eco-friendly design.
The IP rating for this tactile switch is IP60, providing protection against dust and particles.
The dimensions are 9.5 mm in length, 11.1 mm in width, and 12.85 mm in height.
It features a momentary switch operation with an SPST (single pole single throw) configuration.
This model is manufactured in France.
