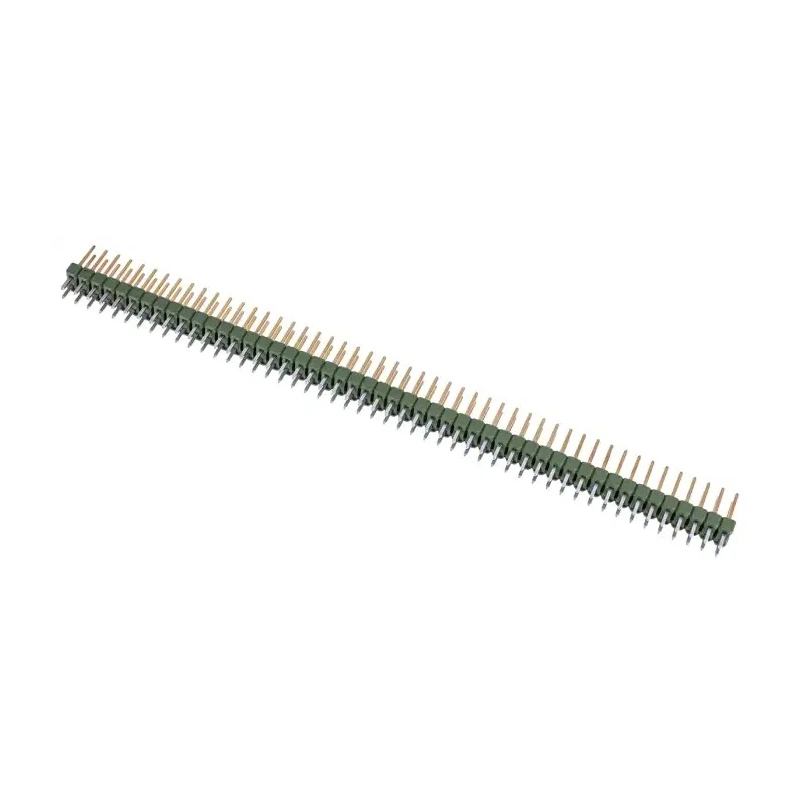

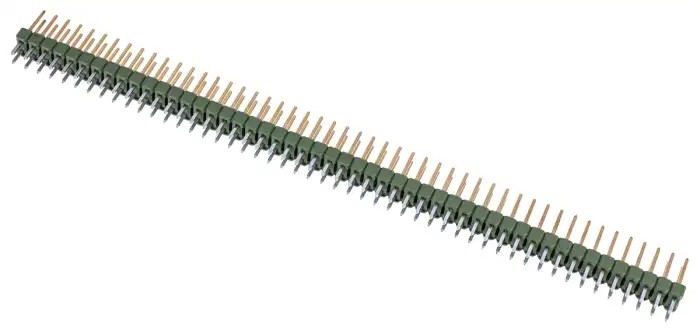

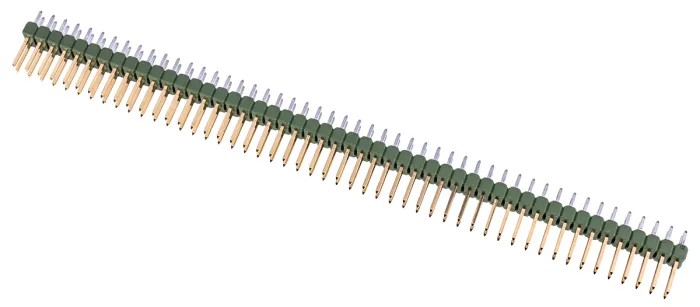

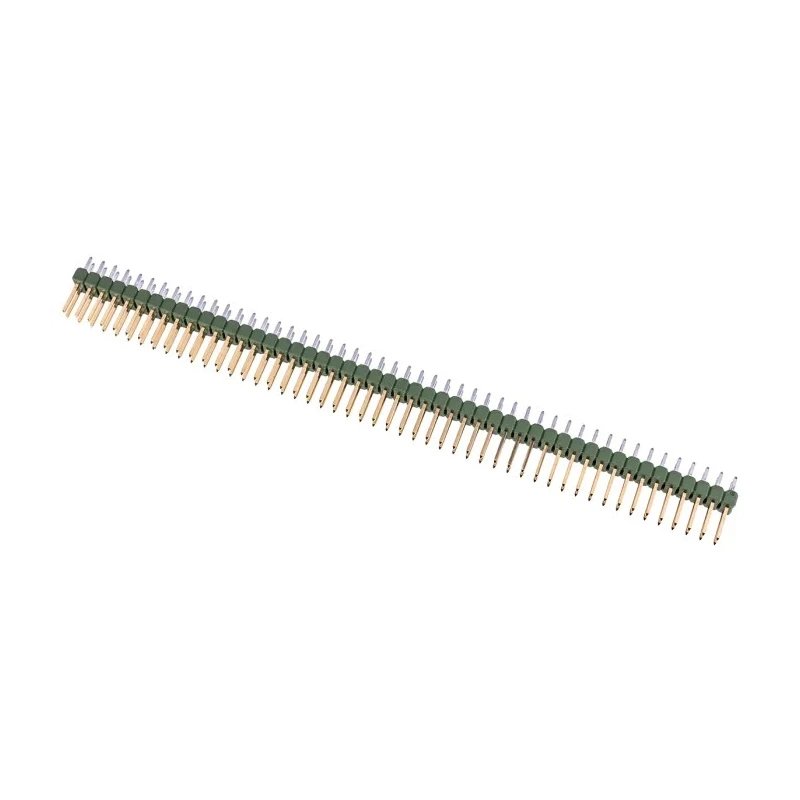

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 100 Contacts, 2.54 mm Pitch, 2 Row 5-826632-0

TE Connectivity 5-826632-0 AMPMODU MOD II Series Straight Through Hole Pin Header provides a robust and reliable connection solution for PCB assemblies. Featuring 100 male contacts arranged over two rows with a 2.54 mm pitch, this connector offers versatility for various industrial and electronic applications.

The housing is made from durable polyester material balancing electrical insulation and mechanical stability. The brass contacts plated with gold enhance conductivity and corrosion resistance, ensuring long-term reliability. Through-hole mount type and straight orientation make it suitable for soldering to printed circuit boards, allowing secure mechanical fixing and electrical contact.

This pin header supports a voltage rating of 750 V and a current rating of 3A. It operates safely in extreme temperature environments from -55°C up to 105°C, making it ideal for harsh industrial, manufacturing, and electronic sectors. The unshrouded style facilitates easy mating with corresponding receptacle housings for board-to-board and wire-to-board systems, including stacking options.

The tail pins measure 3.2 mm in length for stable solder joints, while the mating pins extend 6.7 mm, ensuring firm contact with mating connectors. This product is part of the established AMPMODU MOD II modular interconnect range, which complies with standard spacing conventions used across multiple industry verticals.

This pin header set supports applications in industrial automation, electronic instrumentation, communication equipment, and other high-reliability electronic assemblies. Its modular design concept allows customization by snapping to desired lengths, enhancing adaptability for different project requirements.

Standard 2.54 mm pitch suitable for a wide range of PCB applications. Consists of 100 male brass contacts plated with gold for reliable conductivity. Designed for through-hole mounting with a straight orientation providing robust connectivity.

Rated for 750 V and 3A current, suitable for power and signal applications. Constructed with a polyester housing for durability and thermal resistance. Operating temperature range from -55°C to 105°C, supporting harsh industrial environments.

Tail pin length of 3.2 mm and mating pin length of 6.7 mm ensure secure solder and contact engagement. Unshrouded design allows flexible mating options for board-to-board and wire-to-board connections. Complies with industrial standards and is part of the AMPMODU modular connector system.
