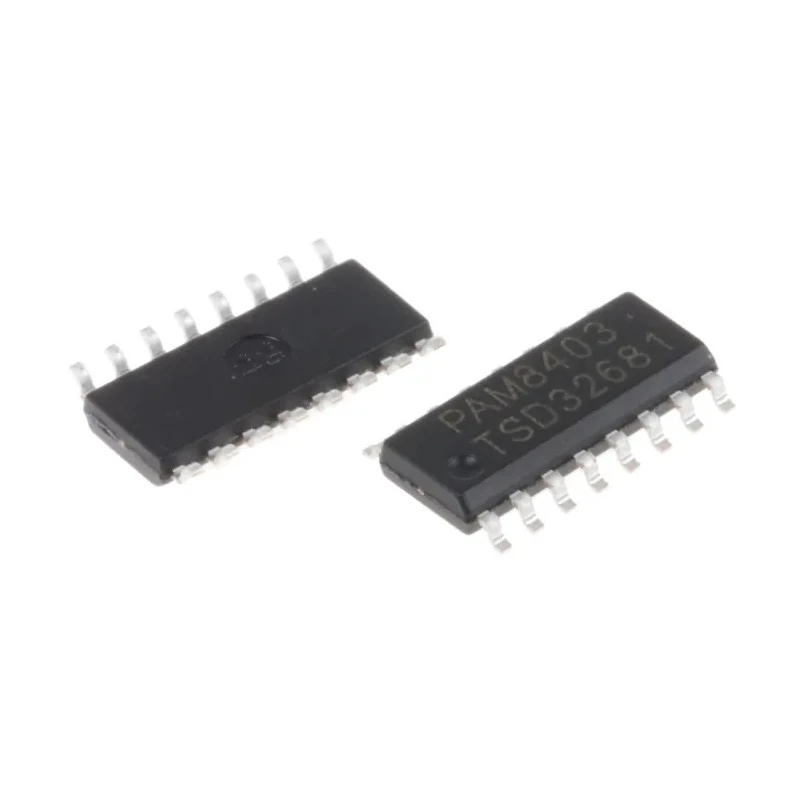

DiodesZetex Audio Amplifier IC, 16-Pin SOP Package, 3.2W Output Power, Class D, PAM8403DR
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1.75mm |
| Length | 9.8mm |
| Model | PAM8403DR |
| Width | 5.9mm |
| Output Power | 3.2W |
| Mount Type | Surface |
| Series | PAM8403 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Amplifier Type | Audio |
| Amplifier Class | Class D |
Key Features
- Operates as a Class D audio amplifier for efficient power handling.
- Single channel configuration suitable for mono amplification.
- Compact surface mount SOP package with 16 pins ensuring easy PCB integration.
- Wide supply voltage range from 2.5 V to 5.5 V for design flexibility.
- Operating temperature range from -40°C to 85°C for reliable performance.
- Audio output power rated at 3.2 W for small speaker systems.
- Manufactured in China under the PAM8403 series by DiodesZetex.
Product Description
DiodesZetex PAM8403DR is a highly integrated Class D Audio Amplifier IC designed for efficient speaker amplification. Housed in a compact 16-Pin SOP surface mount package, it delivers an output power of 3.2 W suitable for various audio applications including consumer electronics and portable sound devices.
This amplifier IC operates with a single output channel and supports a supply voltage range from 2.5 V to 5.5 V, making it flexible for different circuit designs. With an operating temperature range from -40°C to 85°C, it ensures stable audio performance across demanding environmental conditions.
The compact dimensions of 9.8 mm in length, 5.9 mm in width, and 1.75 mm in height allow easy integration on PCBs with limited space. The PAM8403DR model is part of the PAM8403 series known for low power consumption and high efficiency in Class D amplifiers.
This audio amplifier IC is ideal for professional electronics applications such as consumer audio devices, portable speakers, and other sound amplification circuits in manufacturing and development settings.
Operates as a Class D audio amplifier for efficient power handling. Single channel configuration suitable for mono amplification. Compact surface mount SOP package with 16 pins ensuring easy PCB integration. Wide supply voltage range from 2.5 V to 5.5 V for design flexibility.
Operating temperature range from -40°C to 85°C for reliable performance. Dimensions include length 9.8 mm, width 5.9 mm, and height 1.75 mm for compact design. Audio output power rated at 3.2 W for small speaker systems.
Manufactured in China under the PAM8403 series by DiodesZetex.
EnvMart offers this DiodesZetex PAM8403DR Audio Amplifier IC to support industrial, laboratory, and manufacturing needs for efficient audio component integration. Browse our full range of Audio Amplifier ICs and related electronic components to suit your design or production requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PAM8403DR audio amplifier IC has an output power rated at 3.2 W, making it suitable for small speaker systems.
This model operates within a supply voltage range of 2.5 V to 5.5 V, providing design flexibility for various applications.
The dimensions of the PAM8403DR are 9.8 mm in length, 5.9 mm in width, and 1.75 mm in height, allowing for compact PCB integration.
It comes in a compact 16-Pin SOP (Small Outline Package) surface mount package, ensuring easy integration onto PCBs.
The operating temperature range for the PAM8403DR is from -40°C to 85°C, ensuring reliable performance in various environmental conditions.
This audio amplifier IC supports a single channel configuration, making it suitable for mono amplification.
The PAM8403DR is a Class D audio amplifier, designed for efficient power handling and low power consumption.
This model is ideal for consumer audio devices, portable speakers, and other sound amplification circuits in manufacturing and development settings.
The PAM8403DR features a pin count of 16, which is typical for its compact SOP package design.
The PAM8403DR is part of the PAM8403 series, known for its low power consumption and high efficiency in Class D amplifiers.
The PAM8403DR is manufactured in China, ensuring compliance with relevant manufacturing standards.
This model is designed for surface mounting, which facilitates its integration into compact electronic designs.
