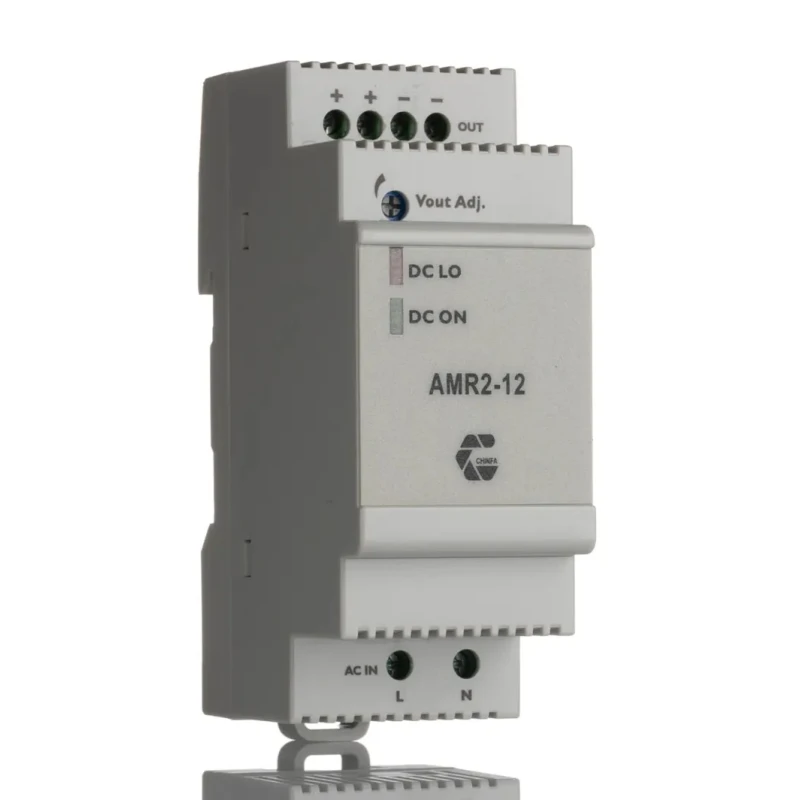

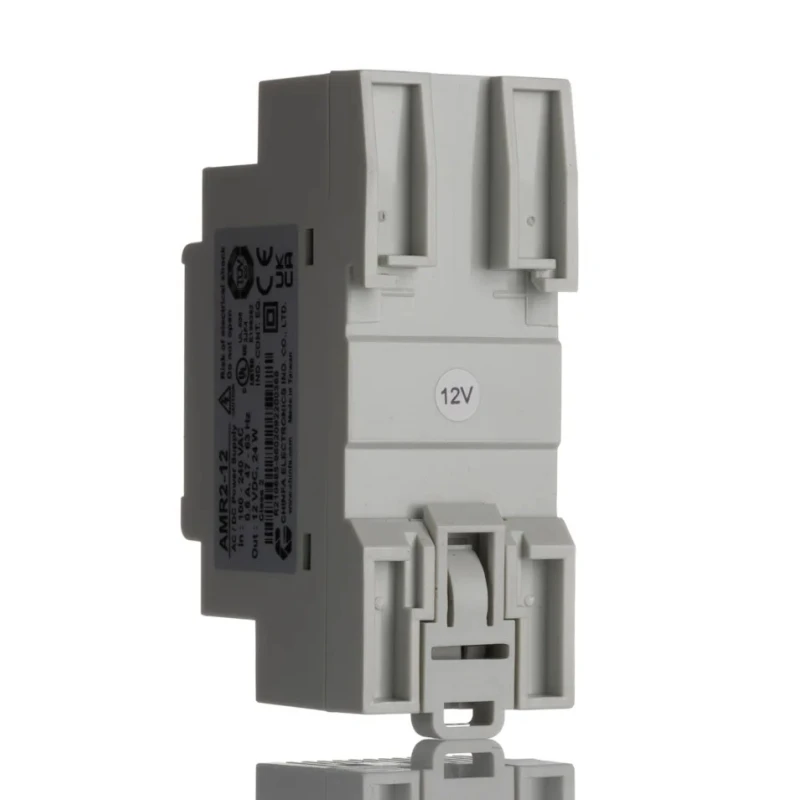

Schneider Electric Switch Mode DIN Rail Power Supply 12V dc, 2A Output, 24W Power AMR2-12
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Schneider Electric |
| Power | 24W |
| Height | 91mm |
| Model | AMR2-12 |
| Depth | 57mm |
| IP Rating | IP20 |
| Width | 56.5mm |
| Series | AMR2 |
| Output Current | 2A |
| Maximum Operating Temperature | 71°C |
| Sub Type | Switch Mode Power Supply |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Standards/Approvals | EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2 Level 3, EN 61000-4-3 Level 3, EN 61000-4-4 Level 4, EN 61000-4-5 L-N Level 3, EN 61000-6-2, EN 61000-6-3 |
| Maximum Output Voltage | 12V dc |
| Minimum Input Voltage | 90V ac |
Key Features
- The power supply supports a universal AC input voltage range from 90V to 264V AC.
- It features a single output channel with regulated 12V DC voltage and 2A output current.
- The device operates within a temperature range of -40°C to 71°C for reliable performance in harsh environments.
- It has an IP20 ingress protection rating suitable for indoor installation on DIN rails.
- High efficiency of up to 84% reduces energy loss and heat generation.
- Includes internal input filter and short circuit protection for safe operation.
- Compact dimensions of 91mm (H) x 56.5mm (W) x 57mm (D) enable easy panel mounting.
- Meets multiple EMC and safety standards including EN 55022 Class B and EN 61000 series for electromagnetic compatibility.
Product Description
Chinfa AMR2-12 Switch Mode DIN Rail Power Supply delivers a regulated 12V DC output voltage at 2A current with a total power rating of 24W. Designed for high performance and reliability, this device supports a universal AC input voltage range between 90V and 264V AC, accommodating global power standards. The power supply is optimized to function within an operating temperature range of -40°C to 71°C, making it suitable for various industrial and factory environments.

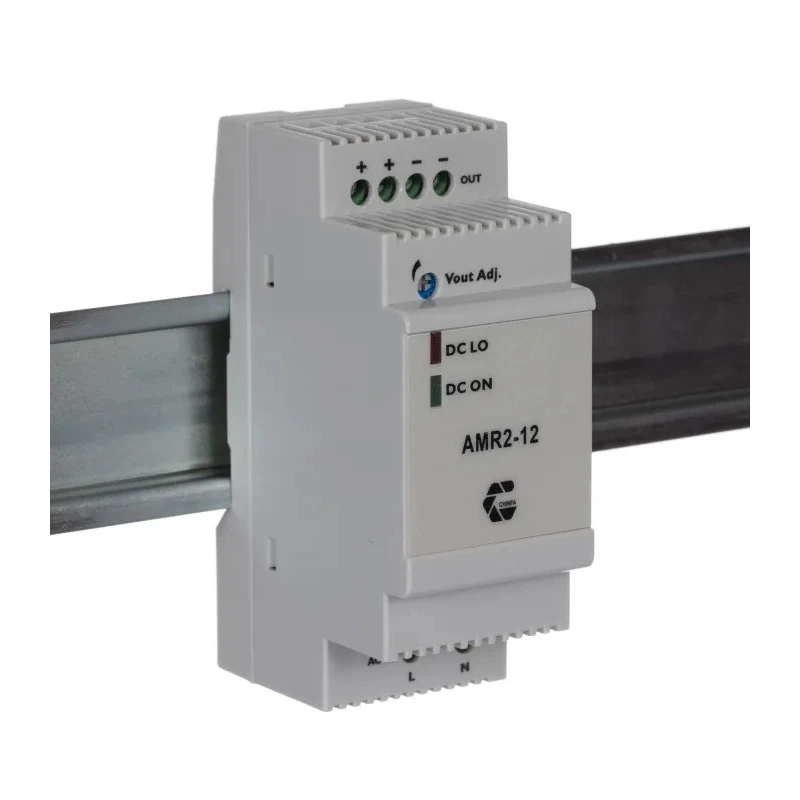

Constructed for mounting on DIN rails, the unit features a compact form factor with dimensions of 91mm height, 56.5mm width, and 57mm depth. It includes an internal input filter for improved noise suppression and provides short circuit protection to safeguard connected equipment and maintain operational safety.
The power supply is designed to deliver high energy efficiency of 84%, reducing operating costs and heat output. It complies with key electromagnetic compatibility standards such as EN 55022 Class B, EN 55024, and various EN 61000 levels to ensure minimal interference with nearby electronic equipment.
This product is CE certified and holds approvals from cUL, TUV, and UL, indicating compliance with rigorous safety and quality standards. Typical applications include building control systems, electromagnetic drives, factory and industrial automation, instrumentation, and other control apparatus requiring a stable 12V power source.
The power supply supports a universal AC input voltage range from 90V to 264V AC. Single output delivering regulated 12V DC at 2A current with 24W power. Operating temperature range from -40°C to 71°C suitable for industrial environments.
IP20 rated enclosure for protection against solid objects and indoor installation. High efficiency of 84% for energy-saving performance. Internal input filter and short circuit protection enhances reliability and safety.
Compact size with DIN rail mounting compatibility. Certified to multiple EMC standards for electromagnetic compatibility. CE certified and cUL, TUV, UL approved for international quality compliance. Used widely in building control, automation, industrial controls, and instrumentation.
Explore more products in the Power Supplies category at EnvMart for reliable industrial power solutions.
Explore more products in our DIN Rail Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of this power supply is 12V DC.
The AMR2-12 model has a power rating of 24W.
This unit operates within a temperature range of -40°C to 71°C.
The power supply has an IP20 ingress protection rating, suitable for indoor installation.
This model provides a single output channel.
The dimensions of the AMR2-12 power supply are 91mm in height, 56.5mm in width, and 57mm in depth.
The AMR2-12 is a switch mode power supply.
It complies with multiple safety standards including EN 55022 Class B and various EN 61000 levels for electromagnetic compatibility.
The output current of this power supply is 2A.
Yes, it includes short circuit protection to safeguard connected equipment.
The AMR2-12 power supply is manufactured in Taiwan.
