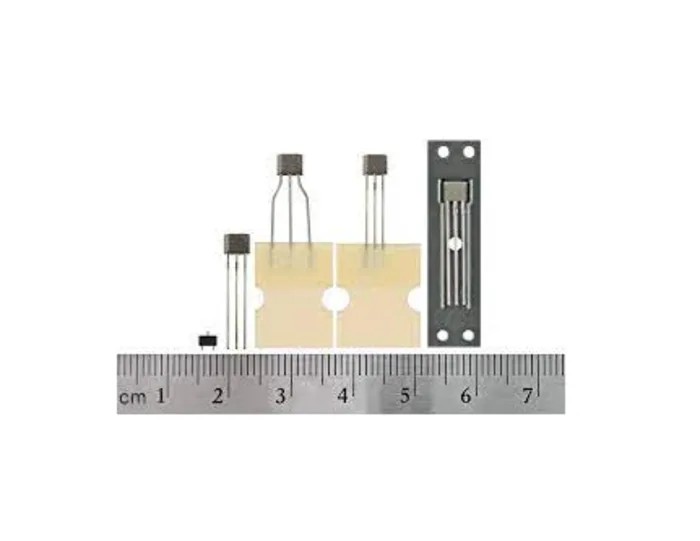

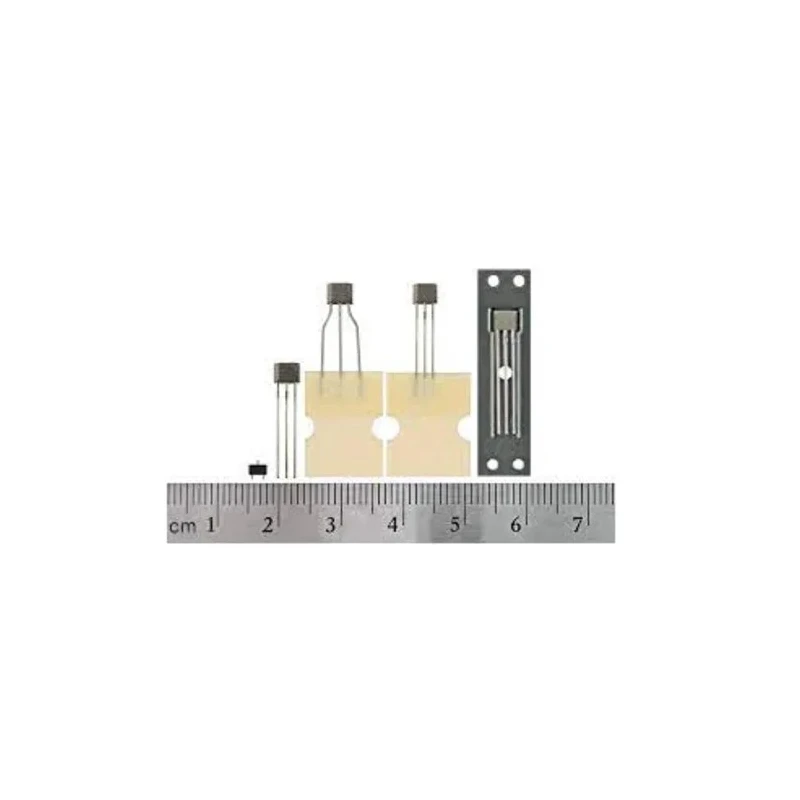

Honeywell Technologies Through Hole Hall Effect Sensor IC 3-Pin TO-92 Package 3 V to 26 V SS460S
Specifications
| Country of Origin | China |
|---|---|
| Brand | Honeywell |
| Height | 3mm |
| Length | 4.06mm |
| Model | SS460S |
| Technology | Digital |
| Sensor Type | Minute |
| Width | 1.57mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-92 |
| Minimum Operating Temperature | -40°C |
| Interface Type | IC |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Supply Voltage | 26V |
| Minimum Supply Voltage | 3V |
| Supply Current | 20mA |
| Magnetic Type | Bipolar |
Key Features
- High sensitivity latching digital Hall-effect sensor for magnetic field detection.
- Operates with bipolar magnetic types detecting alternating north and south poles.
- Wide operating temperature range from -40°C up to 150°C.
- Designed with built-in reverse voltage protection and low supply current of 20 mA.
- Suitable for sensing applications in industrial and electronic equipment.
- Complies with RoHS standards ensuring environmental safety.
- Through hole mount type for easy PCB integration.
- Ideal for magnetic sensing in automation, control, and sensing systems.
Product Description
Honeywell SS460S through hole Hall effect sensor IC is a high sensitivity latching digital sensor designed to detect magnetic fields generated by permanent magnets or electromagnets. It operates on a voltage range of 3 V to 26 V and is housed in a compact TO-92 3-pin package, measuring 4.06 mm in length, 3 mm in height, and 1.57 mm in width.
This sensor reliably switches its output states in response to alternating north and south magnetic poles with a typical sensitivity of 30 Gauss, reaching a maximum of 55 Gauss. Unlike competitive products that use chopper stabilization, the SS460S provides a clean output signal with a faster latch response time.
The device includes built-in reverse voltage protection and operates efficiently with a supply current of 20 mA. It supports operation in harsh environments with a temperature tolerance from -40°C to 150°C, making it suitable for industrial and electronic applications requiring precise magnetic sensing.
High sensitivity latching digital Hall-effect sensor for magnetic field detection. Bipolar magnetic sensing capability detecting north and south poles. Wide voltage range from 3 Vdc to 26 Vdc operation. Compact TO-92 package with through hole mounting.
Fastest response time in its class without chopper stabilization. Built-in reverse voltage protection enhances durability. Low supply current of 20 mA for energy efficient operation. Environmental compliance with RoHS standards.
Operating temperature range from -40°C to 150°C for broad applications.
This sensor is ideal for integration in industrial automation, electronic measurement, control systems, and magnetic sensing applications within the electrical and electronics sectors. It provides reliable latching functionality useful in switching, motor control, and positioning tasks.
The product originates from China and is offered new, with model number SS460S corresponding to Honeywell Technologies' proven Hall Effect Sensor ICs series. Explore more sensor solutions in the Electronics & Electricals category at EnvMart for your industrial and laboratory sensor requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SS460S operates within a voltage range of 3 V to 26 V.
It has a typical sensitivity of 30 Gauss and can reach a maximum sensitivity of 55 Gauss.
This model operates effectively in a temperature range from -40°C to 150°C.
The sensor is designed for through hole mounting, making it suitable for easy PCB integration.
It operates with a low supply current of 20 mA, enhancing energy efficiency.
Yes, it includes built-in reverse voltage protection to enhance durability.
The sensor is housed in a compact TO-92 package.
It is designed to detect bipolar magnetic types, responding to both north and south poles.
The sensor complies with RoHS standards, ensuring environmental safety.
It is suitable for sensing applications in industrial automation, control systems, and electronic measurement.
The sensor measures 4.06 mm in length, 3 mm in height, and 1.57 mm in width.
The SS460S utilizes digital technology for magnetic field detection.
