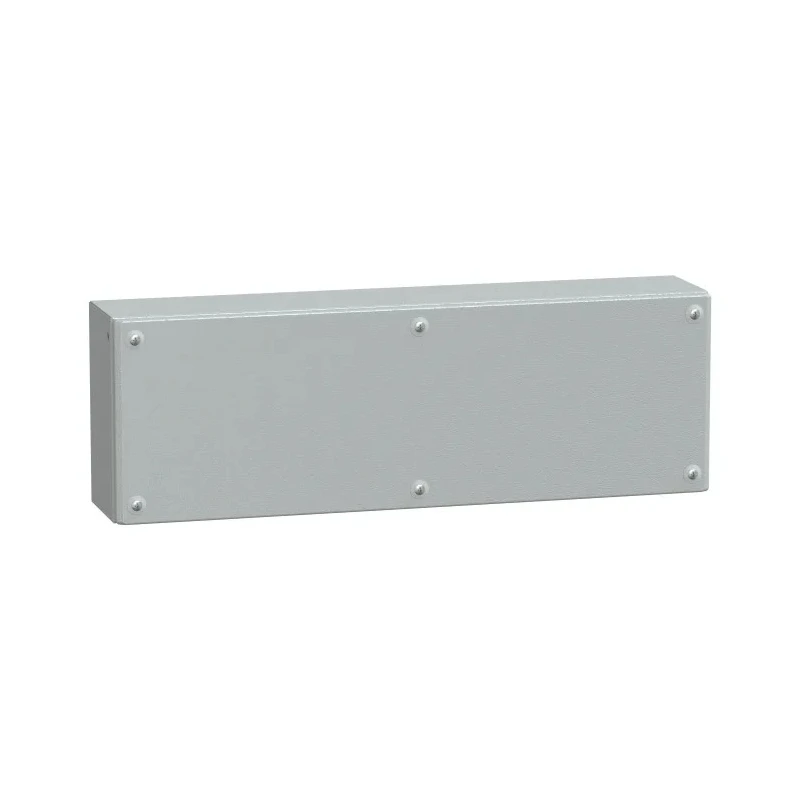

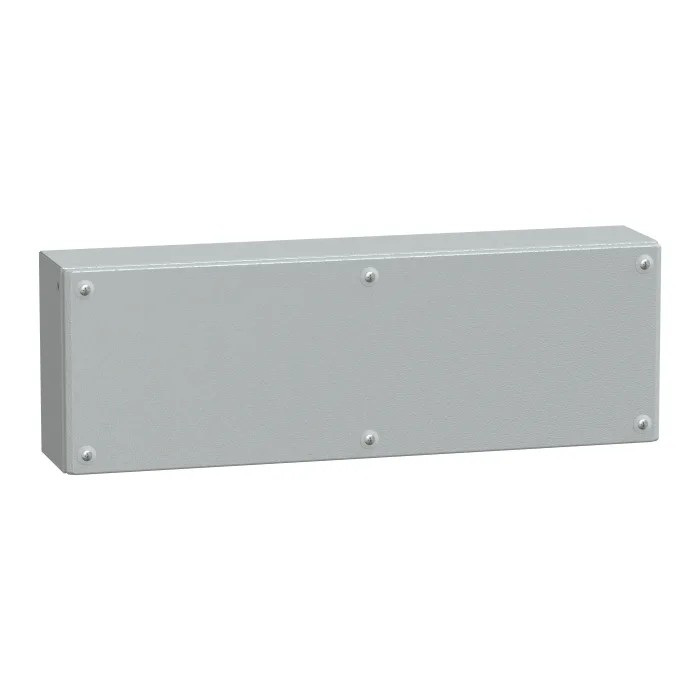

Schneider Electric PanelSeT SBM Series Steel Wall Box IP66, IK10, 200 mm x 600 mm x 120 mm NSYSBM206012

Schneider Electric NSYSBM206012 PanelSeT SBM Series industrial steel wall box enclosure is designed for rugged use in industrial and commercial electrical installations. With external dimensions of 200 mm height, 600 mm width, and 120 mm depth, it offers a flat face construction with a single folded and welded steel body sheet, finished in high-quality grey polyester powder coating (RAL 7035) to ensure corrosion resistance and durability.

This Wall Box is rated IP66 according to IEC 60529, providing complete protection against dust ingress and powerful water jets, making it ideal for outdoor and industrial environments. Additionally, it meets IK10 impact resistance standards, capable of withstanding mechanical impacts equivalent to a 5 kg object dropped from 40 cm height, ensuring robust physical protection for enclosed electronics.

The enclosure door is plain, secured by six captive half-turn PZ2 threaded screws for quick and secure access. A polyurethane sealing gasket enhances environmental sealing. A welded M6 x 16 earth stud is provided to enable safe equipotential bonding of the enclosure body to earth.

Inside, the enclosure offers multiple drilled profiles (two for this size) to mount panels and DIN rails, with 12.5 mm fixing centres. The enclosure is wall-mountable either directly via the rear or using optional fixing kits. The design is optimized for quick installation using just a screwdriver.

This product conforms to recognized international standards including IEC 62208, REACH, RoHS, UL, DNV, and others, ensuring compliance and quality assurance. It is a versatile solution suitable for applications such as industrial machine enclosures, building electrical installations, underground parking areas, road and railway tunnels, and other harsh environments requiring dust and water protection coupled with strong mechanical resistance.

Constructed from steel with a durable grey polyester powder coating for corrosion resistance. Features flat face design with a single-piece folded and welded body for strength. Equipped with a plain door secured by half-turn PZ2 captive screws for easy and secure locking.

Sealing gasket ensures protection against dust and powerful water jets meeting IP66 standards. Provides mechanical impact resistance according to IK10 standards. Designed for industrial machine and building applications with reversible mounting profiles.

Includes enclosure door/cover and six cover screws supplied with the package. Welded M6 earth stud for equipotential bonding enhances safety. Complies with standards including IEC 62208, REACH, RoHS, UL, DNV and others. Suitable for harsh environments such as underground parking, tunnels, and outdoor installations.
