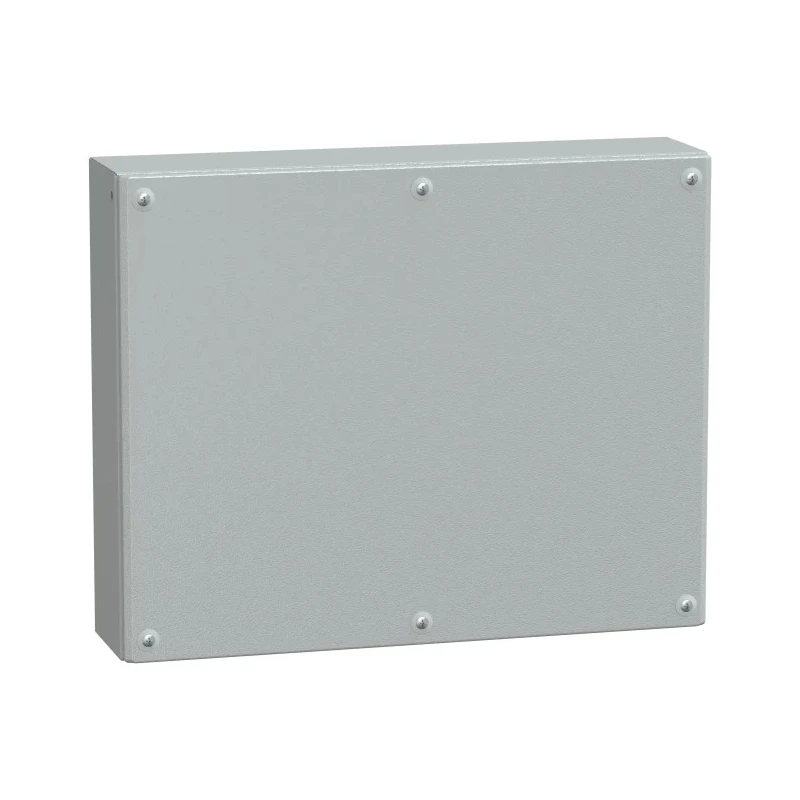

Schneider Electric PanelSeT SBM Series Steel Wall Box Enclosure IP66 400 mm x 500 mm x 120 mm NSYSBM405012

Schneider Electric NSYSBM405012 PanelSeT SBM Series Steel Wall Box enclosure is engineered for robust industrial and commercial protection of sensitive electrical and automation devices.

This wall-mounted enclosure measures 400 mm in height, 500 mm in width, and 120 mm in depth, providing a sturdy housing made from sheet steel finished with a grey polyester powder coating (RAL 7035). Its construction features a single-piece folded and welded body and a plain removable door secured with captive screws ensuring secure closure and easy maintenance access.

The enclosure is rated IP66 according to IEC 60529, guaranteeing dust-tight protection and resistance against strong jets of water, making it ideal for harsh indoor and outdoor environments. It also adheres to IK10 standards (IEC 62262), providing high mechanical impact resistance, suitable for areas prone to physical hazards.

The door incorporates PZ2 screwdriver captive screws offering secure locking, while a welded M6 x 16 earth stud ensures proper equipotential bonding with the enclosure body for safety.

Designed under the PanelSeT SBM series, this enclosure complies with multiple international standards including LR, BV, IEC 62208, UL, REACH, RoHS, and DNV, reflecting high manufacturing and environmental compliance quality.

Applications include industrial machines, building installations, underground parking, road and railway tunnels, and other environments requiring durable protective enclosures. The package includes one enclosure body, one removable cover/lid, and six cover screws.

Constructed from powder-coated steel for corrosion resistance and durability. IP66 rating provides sealed protection from dust and water ingress. IK10 rating offers superior mechanical impact resistance. Single-piece body with folded gutters for structural strength.

Captive screw lock system for secure and accessible door fastening. Certified to multiple international standards for safety and quality assurance. Designed for easy installation and maintenance in industrial settings. Explore more Schneider Electric enclosures and reliable industrial electrical protection solutions at EnvMart.
