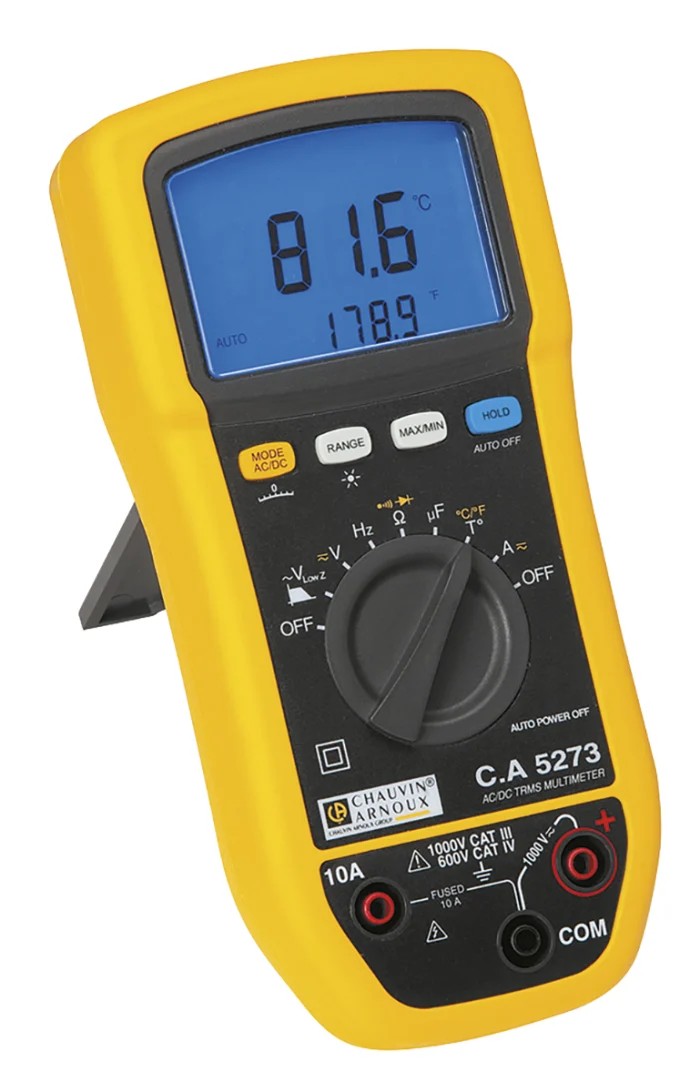

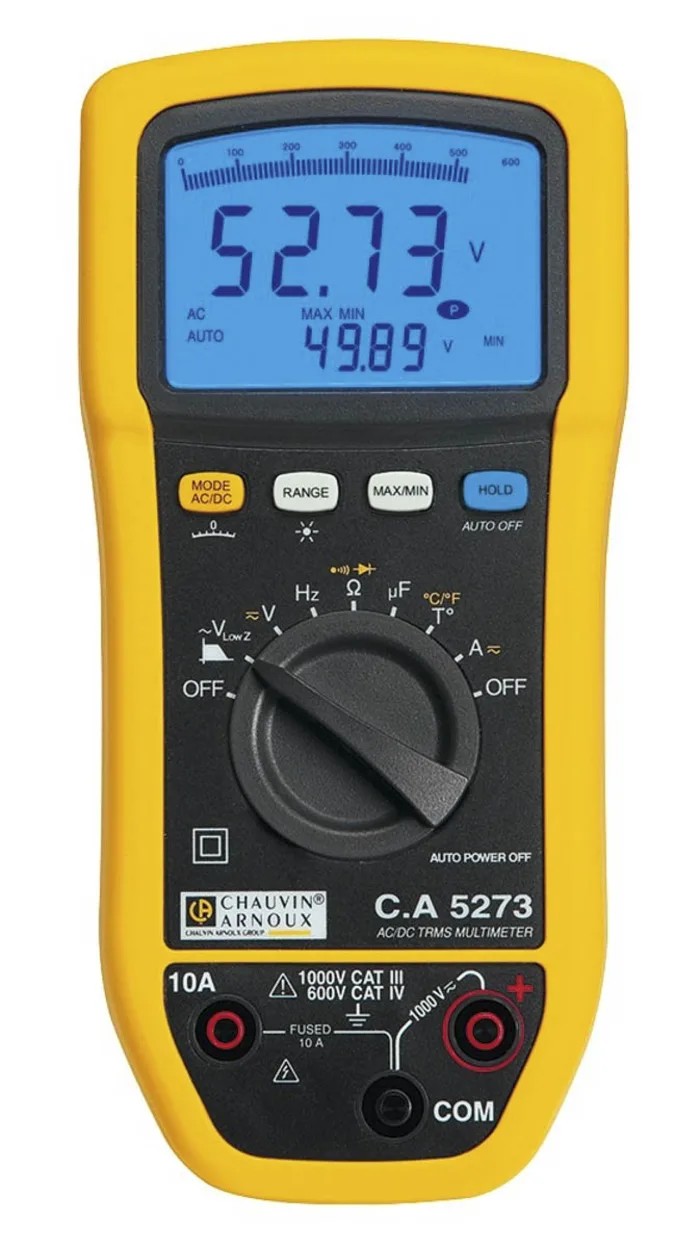

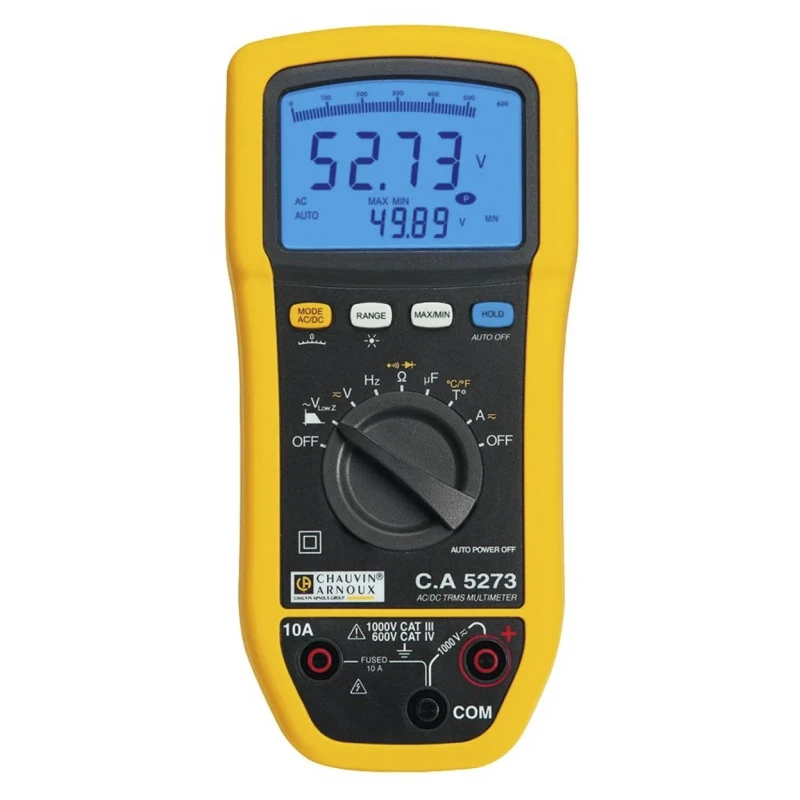

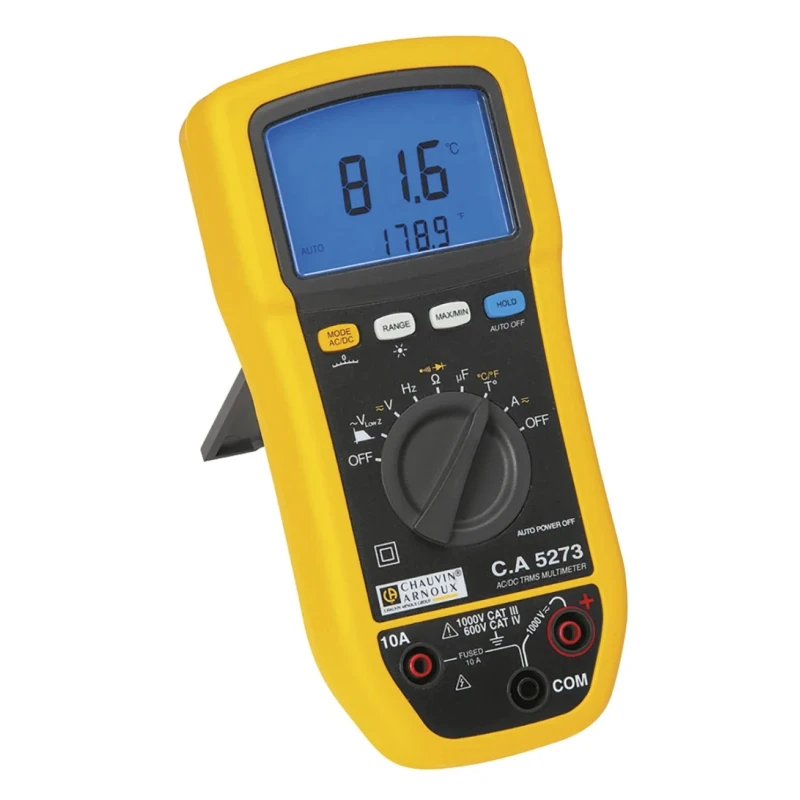

Chauvin Arnoux Handheld Digital Multimeter CA 5273 True RMS 1kV 6000 Counts LCD Display P01196773

Chauvin Arnoux P01196773 handheld digital multimeter CA 5273 is a professional true RMS measuring instrument designed for electrical maintenance and troubleshooting of installations and machines. It features a high-resolution dual 6000-count backlit LCD display with a 61+2 segment bar graph offering precise visual feedback. This compact multimeter is easy to handle, measuring just 190mm in height, 90mm in length, and 45mm in width.

The multimeter supports measurement of AC and DC voltage up to 1000 V, and AC and DC current up to 10 A, suitable for a wide range of electrical applications. It includes advanced features such as low impedance voltage measurement to avoid ghost voltages, multiple resistance ranges up to 60 MΩ, and capacitance measurement with 8 ranges from 6,000 nF to 60 mF. Frequency measurement capabilities extend up to 3 kHz.

Temperature measurement is supported from -59.6°C to +1200°C using the supplied K thermocouple and adapter. The device also provides continuity and diode test functions. Safety is assured with CAT III and CAT IV ratings at 1 kV, making it suitable for industrial and commercial environments where electrical safety is critical.

The instrument operates reliably in temperatures from -10°C up to 50°C and has an IP54 rating, protecting against dust and water ingress. The battery life is approximately 150 hours using a standard IEC 6LR61 9 V alkaline battery. It is supplied complete with one set of banana leads, one set of test probes, one IEC 6LR61 9 V alkaline battery, and one K thermocouple with adapter.

This multimeter is ideal for industrial, laboratory, HVAC, manufacturing, construction, and electrical maintenance applications requiring reliable and accurate electrical measurements.

Dual 6000-count backlit LCD display and 61+2-segment bar graph with remanence. Measures AC/DC voltages up to 1000 V and AC/DC currents up to 10 A. Temperature measurement from -59.6°C to +1200°C with K thermocouple. Low impedance voltage measurement prevents false readings.

Resistance and capacitance measurement across broad ranges. Safety ratings CAT III and CAT IV at 1 kV ensure user protection. Compact size and light weight for portability. IP54 rated for protection against dust and water in harsh conditions.

Includes banana leads, test probes, alkaline battery, and thermocouple. Explore more digital Multimeters from Chauvin Arnoux and other precision measuring instruments at EnvMart.
