Lascar PanelPilot TFT Digital Panel Multifunction Meter Current Measurement 74 mm x 92 mm SGD 35-M420
Specifications
| Country of Origin | China |
|---|---|
| Display Type | TFT |
| Display | 3.5" colour TFT screen |
| Brand | Lascar |
| Model | SGD 35-M420 |
| Depth | 17.7mm |
| Series | PanelPilot |
| Maximum Operating Temperature | 40°C |
| Meter Type | Digital |
| Minimum Operating Temperature | 0°C |
| Interfaces | USB interface |
| Properties Measured | Current |
| Cutout Height | 74mm |
| Cutout Width | 92mm |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
Key Features
- Features a 3.5" colour TFT touchscreen for easy interfacing.
- Programmable via USB interface using free PanelPilot M software compatible with Windows 7, 8.1, and 10.
- Measures 4-20mA current loops with alarm outputs and smart graphical display.
- Supports various display configurations including bar-graphs, tank level, analog styles, and trend graphs.
- Operating voltage range from 4V to 30V d.c.
- Simple panel mounting with screw terminal connections.
- Operating temperature between 0°C and 40°C.
- Ideal for marine, test & measurement, and industrial applications.
Product Description
Lascar SGD 35-M420 Digital Panel Multifunction Meter is a high-precision 3.5" programmable TFT process meter designed to measure current accurately using two 4-20mA analogue inputs. The vibrant colour touchscreen allows for intuitive user interaction and customization.
This device is programmable through a USB interface utilizing the free PanelPilot M software compatible with Windows 7, 8.1, and 10 operating systems. Users can customize display parameters including bar graphs, tank levels, analogue styles, and trend graphs, as well as configure colours, text labels, splash screens, and input voltage scaling, which can be saved both on the meter and computer.
The meter integrates seamlessly into control panels using a straightforward panel mounting solution with screw terminals and operates reliably within an environment temperature range of 0°C to 40°C. Operating voltage ranges from 4V up to 30V d.c., making it suitable for varied installations.
Key industrial applications include marine systems, test and measurement setups, and diverse industrial processes requiring precise current monitoring. The meter complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards ensuring quality and reliability.
3.5" colour TFT touchscreen display for versatile graphical readouts. Free, Windows-compatible PanelPilot software for customization and programming. Dual 4-20mA analogue input channels with smart current loop indicators.
Alarm outputs with programmable thresholds enhance process safety. Flexible display configurations including bar graphs and trend visualization. Simple and secure panel mounting through screw terminal connections. Operating temperature range of 0°C to 40°C ensures broad applicability.
Operating voltage of 4V to 30V d.c. supports various power setups.
Set contains one Lascar PanelPilot TFT Digital Panel Multifunction Meter SGD 35-M420 ready for integration in industrial automation systems. Explore the full range of digital panel meters and automation instruments available at EnvMart for your control and measurement needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It measures current using two 4-20mA analogue inputs, suitable for various industrial applications.
The operating voltage range is from 4V to 30V d.c., accommodating different power setups.
The cutout dimensions needed for installation are 74mm in height and 92mm in width.
It operates effectively within a temperature range of 0°C to 40°C.

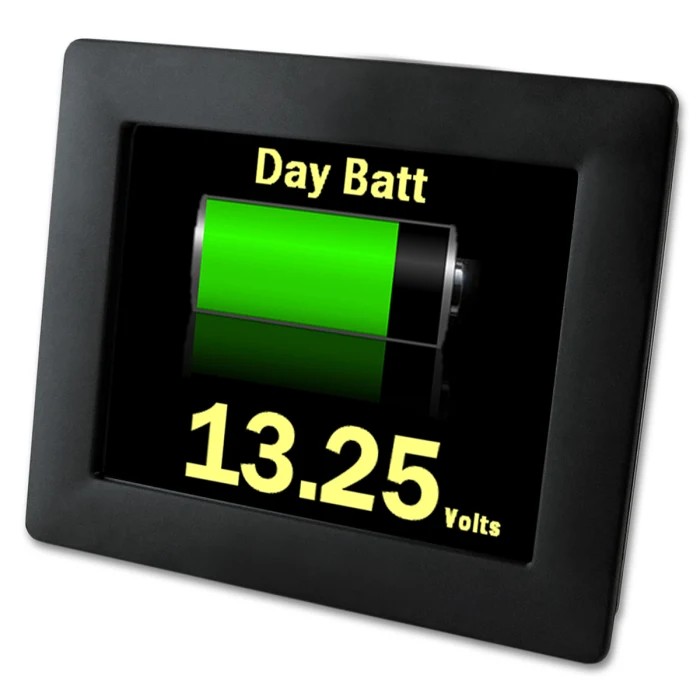

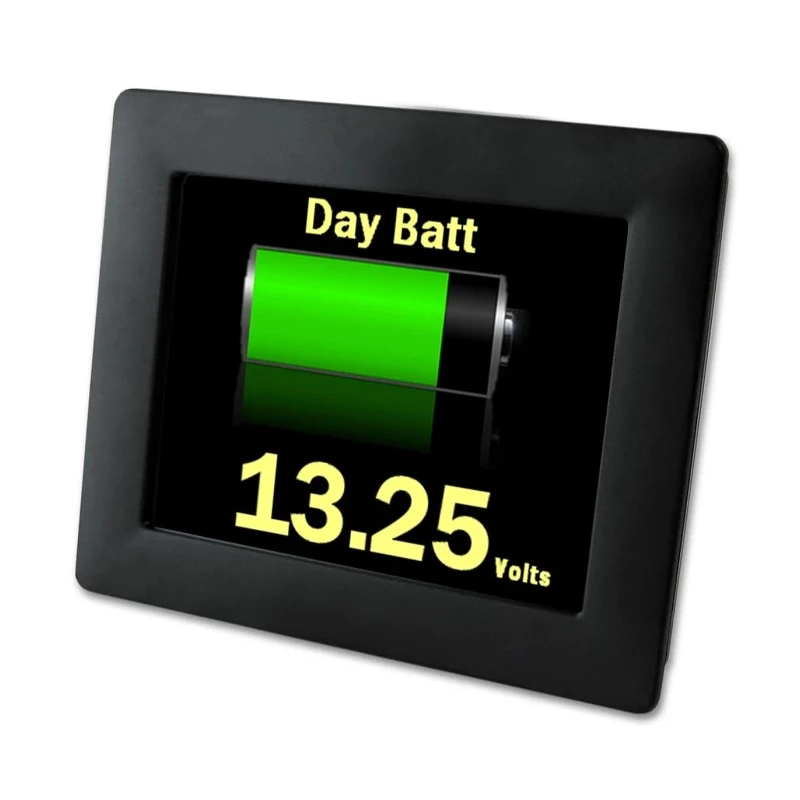

The 3.5" colour TFT touchscreen allows for intuitive user interaction and customization of display parameters.
It is programmable via a USB interface using the free PanelPilot M software, which is compatible with Windows 7, 8.1, and 10.
It supports various display configurations, including bar graphs, tank levels, analogue styles, and trend graphs.
The meter complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, ensuring quality and reliability.
It is suitable for marine systems, test and measurement setups, and various industrial processes requiring precise current monitoring.

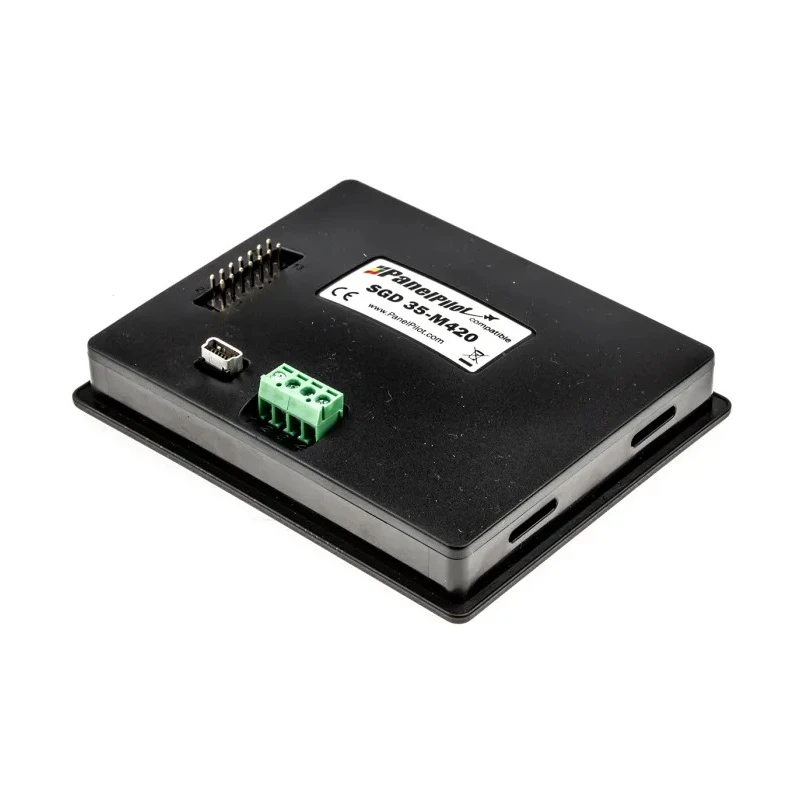

It features simple panel mounting with screw terminal connections for secure installation.
Yes, it includes alarm outputs with programmable thresholds to enhance process safety.
The display type is a 3.5" colour TFT screen, providing versatile graphical readouts.
