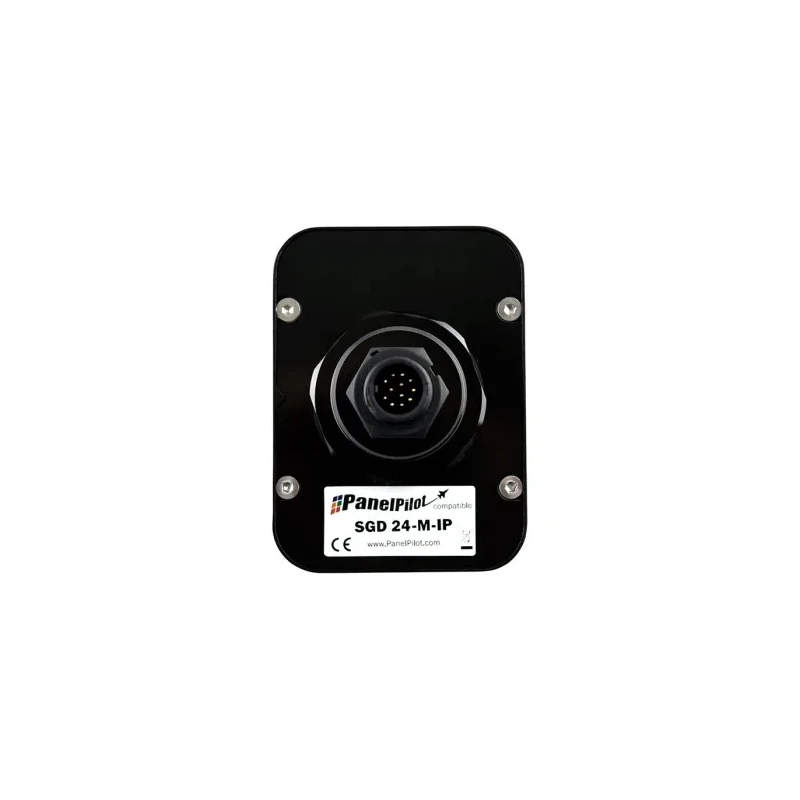

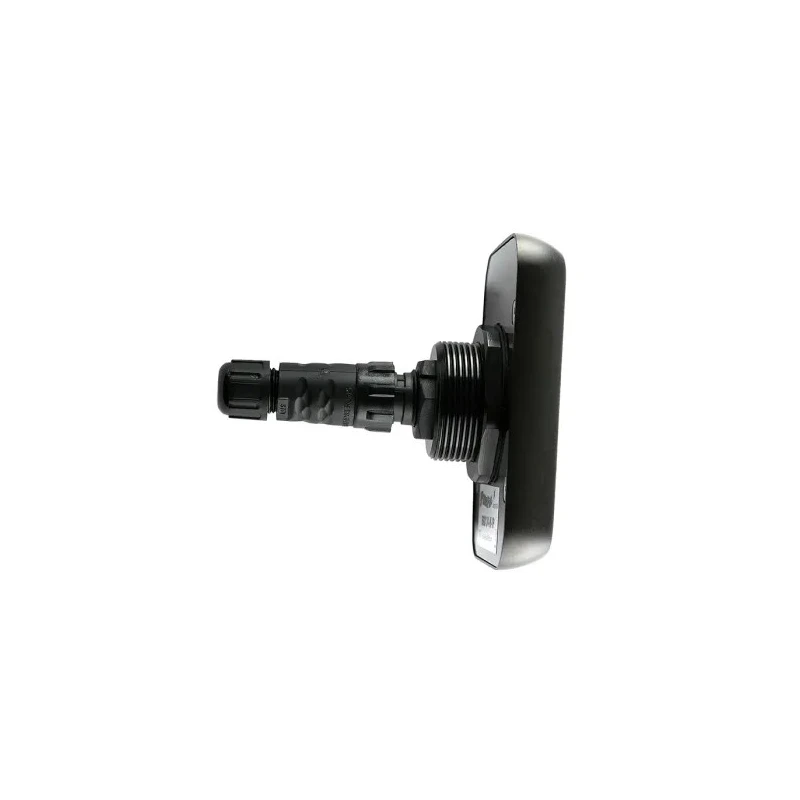

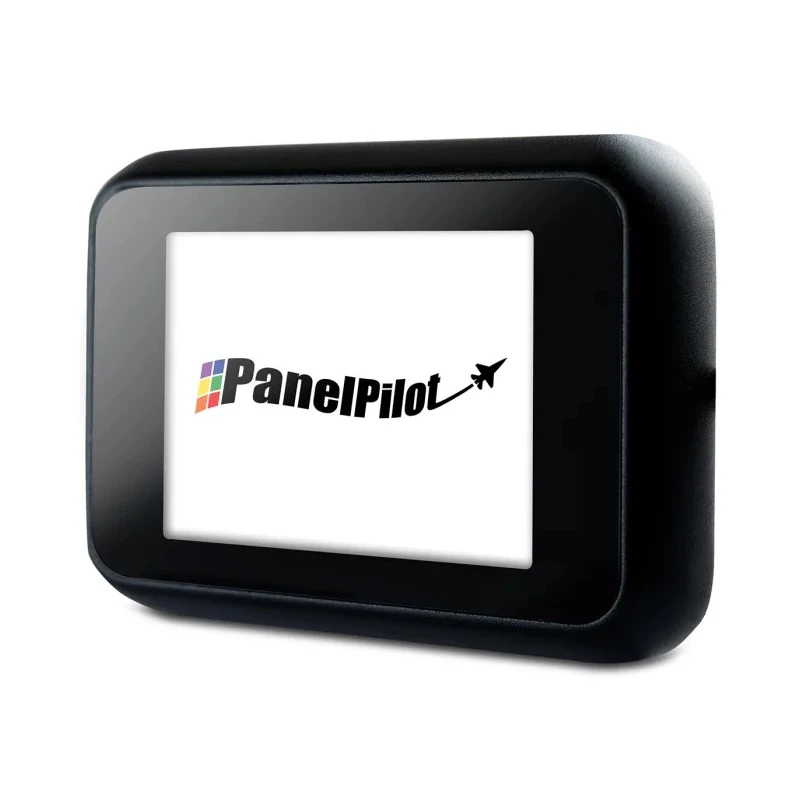

Lascar PanelPilot TFT Digital Panel Multifunction Meter Voltage Measurement 33 mm Cutout SGD 24-M-IP
Specifications
| Country of Origin | China |
|---|---|
| Display Type | TFT |
| Brand | Lascar |
| Model | SGD 24-M-IP |
| Depth | 13.7mm |
| Series | PanelPilot |
| Maximum Operating Temperature | 40°C |
| Meter Type | Digital |
| Minimum Operating Temperature | 0°C |
| Interfaces | USB interface |
| Properties Measured | Voltage |
| Cutout Width | 33mm |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Maximum Measurement | 240 V |
Key Features
- Measures voltage up to 240 V with high accuracy and reliability.
- Equipped with a 2.4 inch colour TFT screen with 320 x 240 pixel resolution.
- IP-67 rated rugged design with Corning Gorilla glass window for durability.
- Simple USB interface enabling easy programmable configuration with free Windows software.
- Operates efficiently in temperatures ranging from 0°C to 40°C.
- Designed for easy panel mounting with 12-way connection for secure installation.
- Wide operating voltage range from 4V to 30V DC for flexible applications.
- Ideal for industrial, marine, energy, and automated control system use cases.
Product Description
Lascar SGD 24-M-IP PanelPilot TFT Digital Panel Multifunction Meter is a high-performance voltage measuring instrument designed for industrial and commercial applications. It features a 2.4 inch TFT colour display protected by scratch-resistant Corning Gorilla glass, with a resolution of 320 x 240 pixels for clear and crisp readings. This meter supports an operating voltage range from 4 V to 30 V DC and measures voltages up to 240 V DC, making it suitable for a broad range of monitoring requirements.
The device is programmable via a USB interface using complimentary PanelPilot software compatible with Windows 7, 8.1, and 10. This allows users to customize readout types, colour schemes, text labels, splash screens, and input voltage scaling to their specific needs. The SGD 24-M-IP is IP-67 rated and approved to NEMA-6 standards, ensuring robust performance in harsh environments including marine and energy sectors.
Its compact form factor with a 33 mm cutout width and 13.7 mm depth facilitates straightforward panel mounting, supported by a secure 12-way connection system. The meter operates reliably between 0°C and 40°C with no compromise on stability or accuracy.
Measures voltage up to 240 V DC with accurate digital readout. Features high-resolution 2.4 inch colour TFT display with rugged Gorilla glass. Provides IP-67 and NEMA-6 environmental protection ratings. Programmable through USB with free Windows-based software.
Wide operating voltage: 4 V to 30 V DC, ensuring adaptability. Compact 33 mm cutout for easy panel integration. Operates within ambient temperatures of 0°C to 40°C. Complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards.
Suitable for industrial automation, marine, energy, and control gear applications.
This multifunction panel meter combines versatility with durability and ease of customization, making it an excellent choice for monitoring voltage in demanding industrial, laboratory, and commercial environments. Its IP-67 waterproof rating protects against dust and water ingress, ensuring long operational life and reliability in challenging conditions.
Explore a wide range of industrial measurement and control products to complement this panel meter in your automation systems through EnvMart's Electronics & Electricals Industrial Automation category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage measurement for this model is 240 V DC.
This unit operates reliably within a temperature range of 0°C to 40°C.
It features a 2.4 inch TFT colour display with a resolution of 320 x 240 pixels.
It is programmable via a USB interface using complimentary PanelPilot software compatible with Windows 7, 8.1, and 10.
The required cutout width for installation is 33 mm.
This panel meter is IP-67 rated and approved to NEMA-6 standards, ensuring protection against dust and water ingress.
The minimum operating voltage for this model is 4 V DC.
It complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards.
It is suitable for industrial automation, marine, energy, and control gear applications.
The depth of this model is 13.7 mm.
This multifunction meter measures voltage.
Yes, configuration requires the use of the complimentary PanelPilot software available for Windows.
