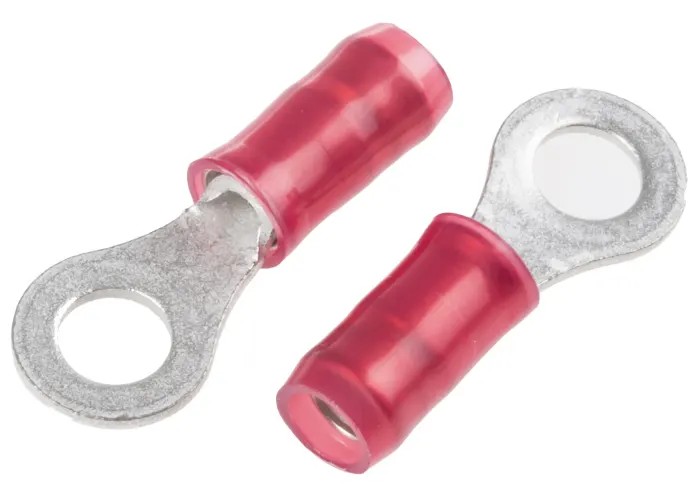

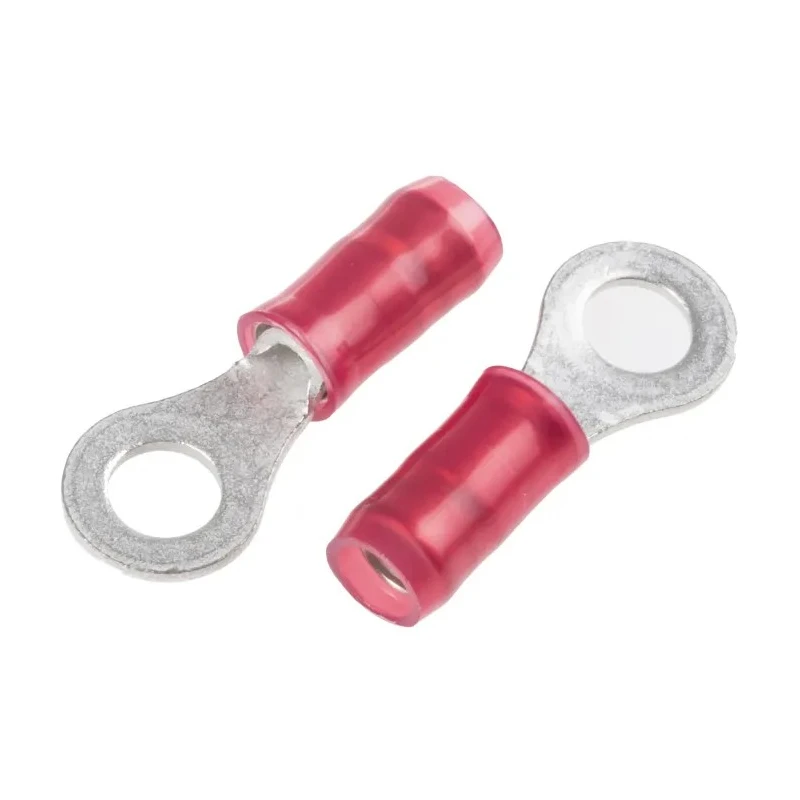

TE Connectivity PIDG Insulated Ring Terminal M4 Stud Size 22 AWG 16 AWG Wire Size Nylon Insulation Red 320551
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| Model | 320551 |
| Insulation | Insulated |
| Overall Length | 21.44mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 7.92mm |
| Inner Ring Diameter | 4.34mm |
| Stud Size | M4 |
Key Features
- Constructed with high conductivity copper body for superior electrical performance.
- Features nylon insulated sleeve with red color coding for easy wire size identification.
- Serrated copper wire barrel provides maximum contact and tensile strength after crimping.
- Funnelled wire entry design allows easy and fast wire insertion.
- Designed for uniform, reliable crimps compatible with specialized tool dies.
- Suitable for industrial, aerospace, automotive, and electrical panel applications.
- Operates reliably at temperatures up to 105°C for durability.
Product Description
TE Connectivity 320551 PIDG Insulated Ring Terminal M4 Stud Size is a high-quality wire crimp terminal designed for reliable and uniform connectivity in demanding environments. Constructed with a precision-formed high conductivity copper body and copper sleeve for enhanced wire insulation support, it prevents wire fraying and ensures excellent electrical contact.
The insulating nylon sleeve is color-coded red to assist in quick wire size identification and facilitate high-speed production insertion. Serrations inside the wire barrel maximize contact and tensile strength after crimping, providing durable performance.
With an overall length of 21.44mm and compatibility with wire sizes ranging from 22 AWG to 16 AWG (0.26mm² to 1.65mm²), this ring terminal fits M4 stud sizes and operates safely up to 105°C. The tin-plated copper contacts resist corrosion, ensuring longevity and reliability.
Applications include aerospace, instrumentation, control wiring, power supplies, automotive assemblies, lighting, panel building, and lifting equipment. Its compliance with numerous industry demands makes it ideal for electronics and electrical power connector tasks across industrial, manufacturing, and commercial sectors.
This product comes manufactured in the United States, meeting strict quality and material standards. Constructed with a high conductivity copper body to optimize electrical flow. Nylon insulated, red color-coded sleeve for easy identification and handling.
Serrated copper wire barrel ensures maximum contact and tensile strength after crimping. Funnelled wire entry facilitates fast and efficient wire insertion. Reliable uniform crimps using specialized tooling dies for enhanced durability.
Suitable for a wide range of industrial and aerospace wiring applications. Tin plated contacts provide corrosion resistance for extended product life. Explore high-performance Ring Terminals and wiring connectors in the EnvMart Electronics & Electricals category for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This ring terminal operates reliably at temperatures up to 105°C.
It is compatible with wire sizes ranging from 22 AWG to 16 AWG, or 0.26mm² to 1.65mm².
The overall length of this ring terminal is 21.44mm.
It features a high conductivity copper body and a nylon insulated sleeve, with tin plating on the contacts for corrosion resistance.
This model is designed for M4 stud sizes.
It has a funnelled wire entry design that allows for easy and fast wire insertion.
It is suitable for applications in aerospace, automotive, electrical panel, and instrumentation wiring.
The inner ring diameter is 4.34mm and the outer ring diameter is 7.92mm.
The serrated copper wire barrel maximizes contact and tensile strength after crimping, ensuring durable performance.
This ring terminal is manufactured in the United States.
The insulation material used is nylon, which provides electrical insulation and is color-coded red for easy identification.
The contact material is copper, which is designed for superior electrical performance.
