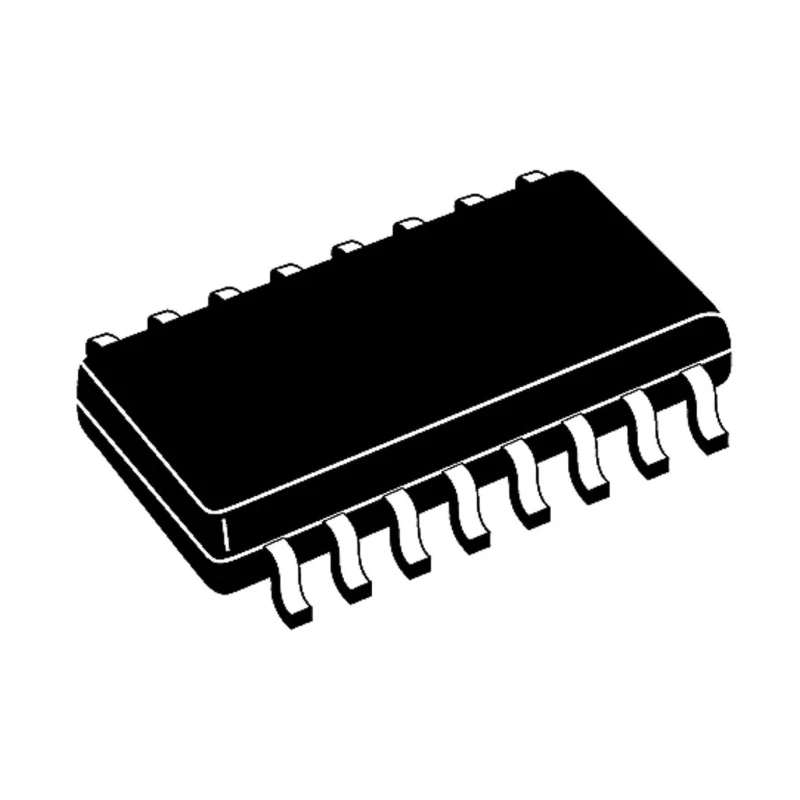

Nexperia Dual Single-Pole Quad-Throw Analog Switch Multiplexer Demultiplexer 74HC4052D,653 CMOS 16-Pin SO-16

Nexperia 74HC4052D,653 is a dual single-pole quad-throw analog switch (2 x SP4T) multiplexer and demultiplexer IC manufactured using CMOS technology. Packaged in a 16-pin SO-16 surface mount format, it integrates five independent elements on a single chip. The device operates efficiently over a wide supply voltage range from 2V to 10V and functions reliably in temperatures ranging between -40°C and 125°C, suitable for harsh environmental conditions commonly found in industrial and electronic applications.

The 74HC4052D,653 device is equipped with four independent inputs/outputs (nY0, nY1, nY2, nY3) and a common input/output (nZ) for each switch. It provides digital enable and select inputs that control signal routing with precision, enabling complex multiplexing and demultiplexing functions. The inclusion of clamp diodes protects the device during voltage excursions and allows interface to voltage levels higher than VCC with current limiting resistors.

Key benefits include low on-state resistance (maximum 225Ω) which minimizes power loss and distortion, low leakage current, and a flat on resistance characteristic that ensures consistent signal quality. This IC is ideal for multiplexing analog sensor signals as well as in communication and audio signal routing where low total harmonic distortion is critical.

Its small footprint of 10 mm length, 4 mm width, and 1.45 mm height facilitates use in compact PCB designs. The part is RoHS compliant, and the non-automotive grade device supports high ESD protection, ensuring durability and reliability.

Operates with a supply voltage range of 2V to 10V for versatile power requirements. Includes 5 CMOS elements per chip, supporting dual 2x SP4T switching. Features low on-state resistance of 225Ω, reducing power loss and signal distortion.

Wide operating temperature range from -40°C to 125°C caters to various environments. Surface-mount SO-16 package dimensions: 10 mm (L) x 4 mm (W) x 1.45 mm (H). Integrated clamp diodes allow voltage tolerance beyond VCC levels.

Designed for applications in audio, communication, sensor multiplexing, and industrial electronics. High ESD protection and RoHS compliant construction ensure durability.

This multiplexer/demultiplexer IC is widely utilized in electronic circuit designs requiring analog and digital signal routing with efficient and reliable switching performance. It is suitable for laboratory, industrial automation, communications, audio processing, and general electronic equipment.
