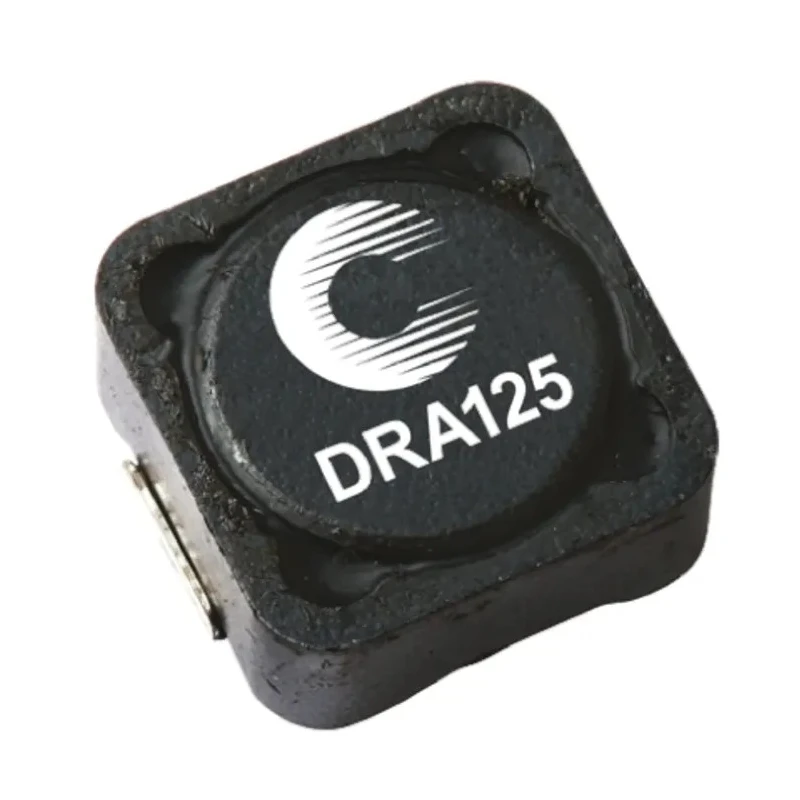

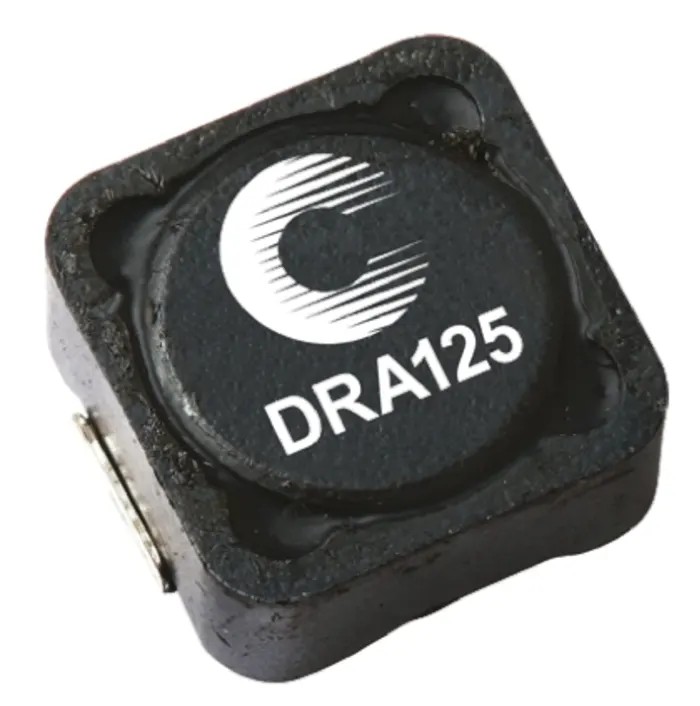

Eaton Shielded Wirewound Surface Mount Inductor with Ferrite Core 47 μH ±20% 3.13 A IDC, Surface Mount Package DRA125-470-R
Specifications
| Country of Origin | India |
|---|---|
| Brand | Eaton |
| Height | 6mm |
| Length | 12.5mm |
| Model | DRA125-470-R |
| Depth | 12.5mm |
| Packaging | Reel |
| Series | DRA |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 47μH |
| Standards/Approvals | RoHS |
| Package/Case | 0125 |
| Maximum DC Current | 3.13A |
| Pin Count | 2 |
| Maximum DC Resistance | 97mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with a ferrite core for excellent magnetic properties.
- Designed for surface mount applications, package size 0125.
- Rated for high temperature up to 165°C suitable for automotive environments.
- Features magnetic shielding to reduce electromagnetic interference.
- Has a compact length of 12.5 mm and height of 6 mm for tight PCB layouts.
- Complies with automotive standard AEC-Q200 ensuring reliability in demanding conditions.
- Maximum DC resistance of 97 mΩ minimizes power loss during operation.
- Wirewound construction enhances performance and durability in high shock and vibration applications.
Product Description
Eaton DRA125-470-R is a shielded wirewound surface mount inductor featuring a ferrite core, providing an inductance of 47 μH with ±20% tolerance. It supports a maximum DC current of 3.13 A, making it ideal for automotive and industrial electronics requiring robust inductive components.
This inductor is designed for surface mount technology with a compact 0125 package size, having a length of 12.5 mm and height of 6 mm. It is magnetically shielded to minimize electromagnetic interference, enhancing circuit reliability especially in noisy environments.
Operating temperature ranges from -40°C to a maximum of 165°C, conforming to the stringent automotive AEC-Q200 standard. Its wirewound construction on a ferrite core provides superior thermal dispersion aided by thermal conductive epoxy molding that guarantees long-term stability under thermal and mechanical stress.
Applications include automotive electronics both under the bonnet and interior/exterior systems, telematics, DC-DC converters (buck, boost, forward, and resonant converters), noise filtering, and filter chokes in demanding industrial environments.
Ferrite core improves magnetic efficiency. Magnetically shielded to reduce EMI. High maximum DC current rating of 3.13 A. Complies with automotive AEC-Q200 standard. Compact physical dimensions suitable for tight PCB layouts.
Wirewound construction ensures mechanical and electrical reliability. High maximum operating temperature of 165°C. Maximum DC resistance of 97 mΩ for energy efficiency. Supports frequencies up to 100 kHz improving filtering performance.
This product is a new condition Eaton inductor supplied on reels for automated PCB insertion. It is well-suited for industrial, automotive, and electronic manufacturing applications requiring reliable inductance, efficiency, and robust performance.
Explore similar inductors and electronics components in the Surface Mount Inductors category on EnvMart for comprehensive industrial grades and specifications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance of this model is 47 μH with a tolerance of ±20%.
It supports a maximum DC current of 3.13 A.
The inductor has a length of 12.5 mm and a height of 6 mm, making it suitable for tight PCB layouts.
The maximum operating temperature is 165°C, which is suitable for automotive environments.
It is constructed with a ferrite core, which enhances its magnetic properties.
The maximum DC resistance is 97 mΩ, minimizing power loss during operation.
Yes, it complies with the automotive standard AEC-Q200, ensuring reliability in demanding conditions.
The termination style is surface mount, designed for automated PCB insertion.
It has a maximum self-resonant frequency of 100 kHz, improving its filtering performance.
It is supplied on reels for convenient automated PCB insertion.
This inductor is suitable for automotive electronics, telematics, DC-DC converters, and noise filtering in industrial environments.
It features a wirewound construction, which enhances performance and reliability in high shock and vibration applications.
