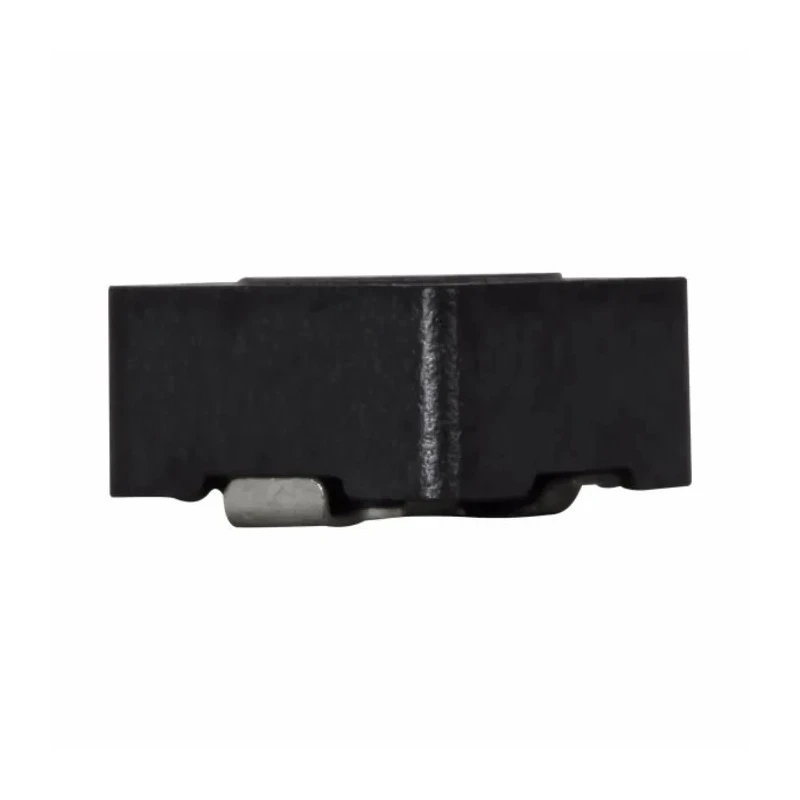

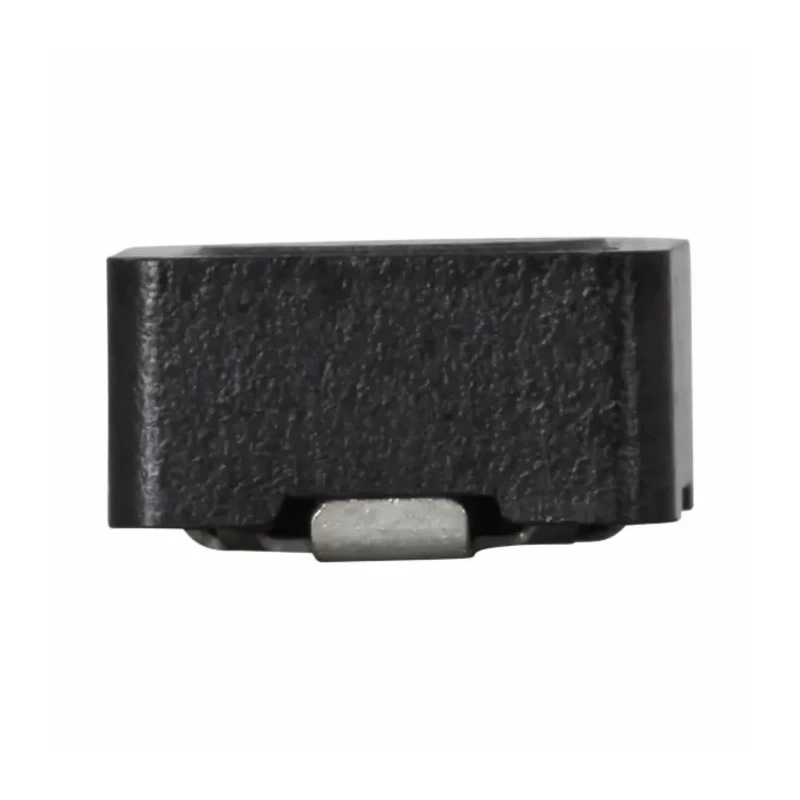

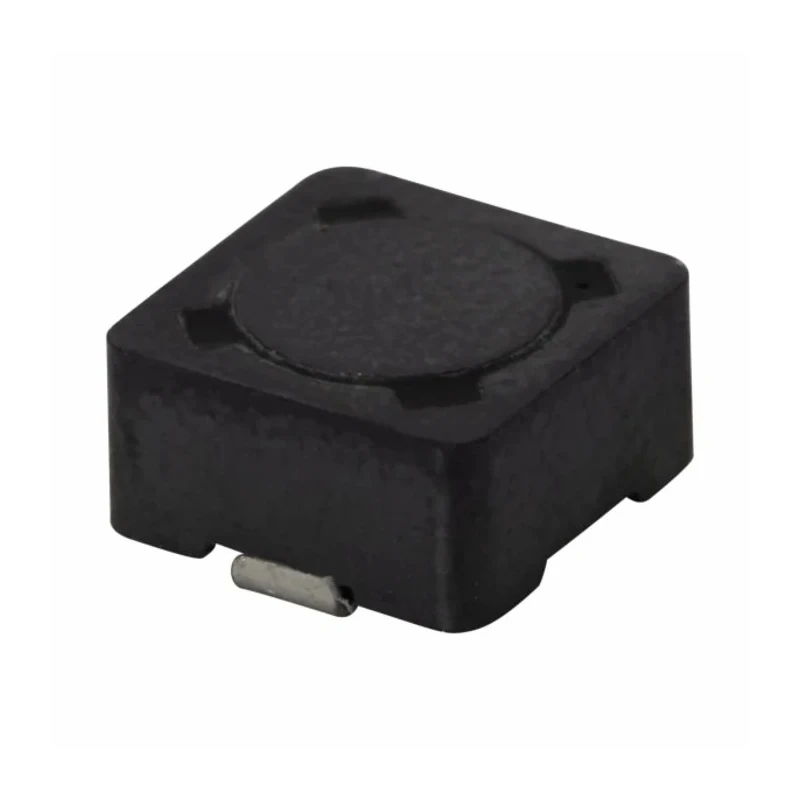

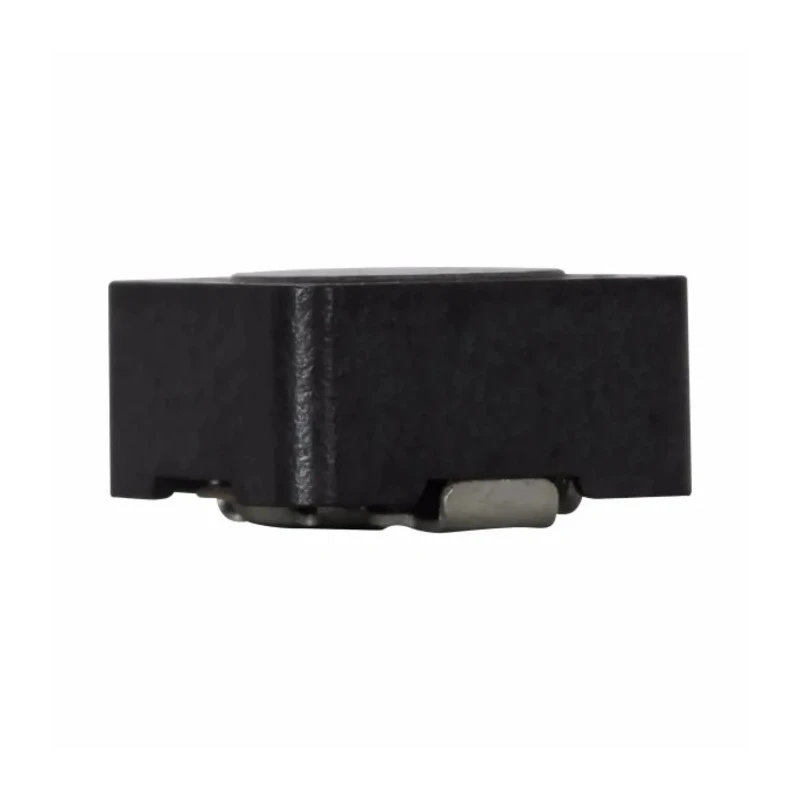

Eaton Wirewound Shielded Wirewound Surface Mount Inductor with Ferrite Core 33 μH ±20 % 1.73 A Idc 0704 DR74-330-R
Specifications
| Country of Origin | China |
|---|---|
| Brand | Eaton |
| Height | 4.35mm |
| Length | 7.6mm |
| Model | DR74-330-R |
| Depth | 7.6mm |
| Packaging | Reel |
| Series | DR |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 33μH |
| Standards/Approvals | RoHS |
| Package/Case | 0704 |
| Maximum DC Current | 1.73A |
| Pin Count | 2 |
| Maximum DC Resistance | 143mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
Key Features
- Compact 0704 package with precise 33 μH inductance and ±20 % tolerance.
- Ferrite core enhances current handling and protects against faults.
- Shielded construction minimizes electromagnetic interference.
- Operates reliably across a wide temperature range of -40°C to 125°C.
- Surface mount style ensures secure and vibration-proof PCB attachment.
- Maximum DC resistance of 143mΩ promotes efficient performance.
- Suitable for use in LCD panels, DC-DC converters, and media players.
- Supplied in reel packaging for multiple application installations.
Product Description
Eaton DR74-330-R is a wirewound shielded surface mount inductor featuring a ferrite core with an inductance of 33 μH and tolerance of ±20 %. It supports a maximum DC current of 1.73 A, making it suitable for various electronics applications requiring energy storage and reliable power transmission.
The compact 0704 package measures 7.6mm in length and depth, with a height of 4.35mm, designed for efficient installation in space-constrained circuit boards. Its ferrite core provides resistance against high currents and minimizes damage from electrical faults. Shielding helps reduce electromagnetic interference (EMI), ensuring consistent device operation.
This inductor operates effectively in a wide temperature range from -40°C to 125°C, making it robust for use in demanding environments such as LCD panels, DC-DC converters, DVD players, and media devices.
Its surface mount termination style provides secure and vibration-resistant attachment to PCBs. The device has a maximum DC resistance of 143mΩ and a maximum self-resonant frequency of 100kHz, designed for precision in signal integrity.
The inductor is supplied in reels facilitating automated assembly and use in multiple applications. Compliance with RoHS standards guarantees the product meets environmental regulations suitable for modern electronics manufacturing.
Compact 0704 package dimensions with precise inductance. Ferrite core improves current handling and durability. Shielded for electromagnetic interference reduction. Wide operating temperature suitability from -40°C to 125°C.
Surface mount terminations for reliable PCB assembly. Maximum DC resistance of 143mΩ for efficient performance. Ideal for LCD panels, DC-DC converters, and media players. Reel packaging supports mass production needs. RoHS compliant ensuring environmentally safe manufacturing.
Explore more of Eaton's high-quality electronic components and find specialized Surface Mount Inductors for your industrial, laboratory, or manufacturing projects through EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance of 33 μH with a tolerance of ±20 %.
It supports a maximum DC current of 1.73 A, making it suitable for various electronics applications.
The compact 0704 package measures 7.6 mm in length and depth, with a height of 4.35 mm.
The maximum DC resistance is 143 mΩ, which promotes efficient performance in circuits.
It operates reliably across a wide temperature range of -40°C to 125°C.
It features a ferrite core, which enhances current handling and protects against faults.
It is supplied in reel packaging, facilitating automated assembly and use in multiple applications.
The maximum self-resonant frequency is 100 kHz, ensuring precision in signal integrity.
This unit features a surface mount termination style for secure and vibration-resistant attachment to PCBs.
It complies with RoHS standards, ensuring it meets environmental regulations suitable for modern electronics manufacturing.
It is suitable for use in LCD panels, DC-DC converters, and media players, among other electronics applications.
This inductor is constructed using a wirewound design, which is common for inductors requiring energy storage.
