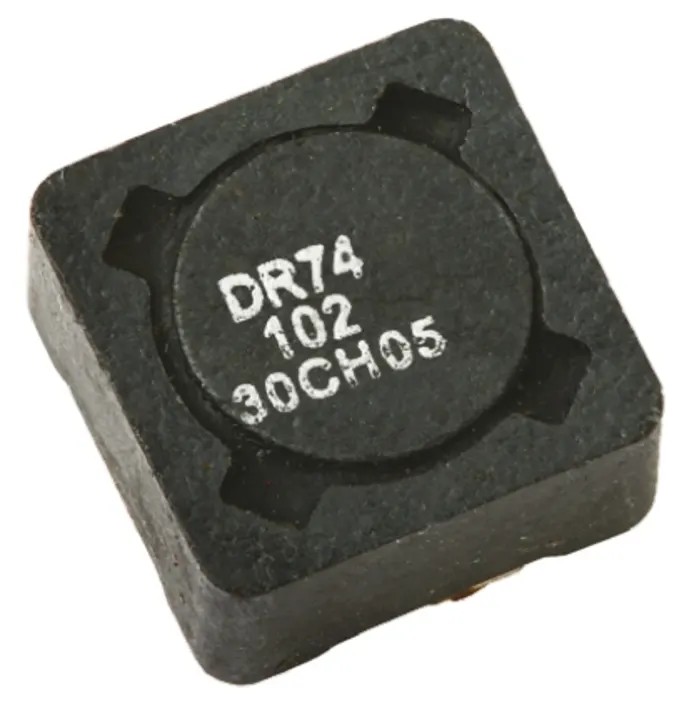

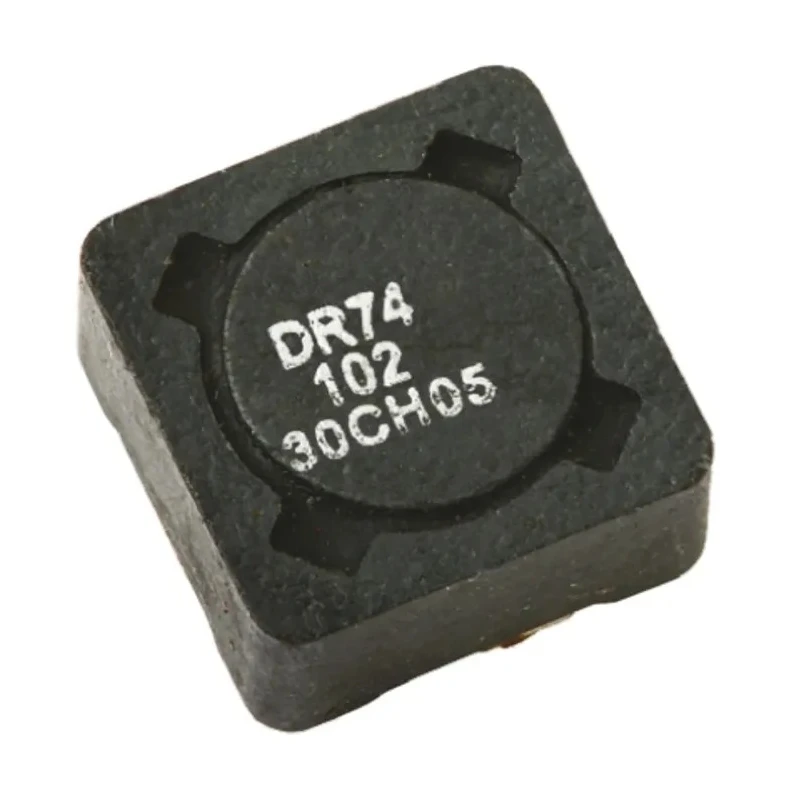

Eaton Shielded Surface Mount Inductor 22 μH ±20 % 2.13 A Idc Ferrite Core DR74-220-R
Specifications
| Country of Origin | China |
|---|---|
| Brand | Eaton |
| Height | 4.35mm |
| Length | 7.6mm |
| Model | DR74-220-R |
| Depth | 7.6mm |
| Packaging | Reel |
| Series | DR |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | 0704 |
| Maximum DC Current | 2.13A |
| Pin Count | 2 |
| Maximum DC Resistance | 92.5mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
Key Features
- High efficiency wirewound inductor with magnetic shielding for reduced EMI.
- Operational temperature range from -40°C to 125°C ensuring reliability in harsh conditions.
- Ferrite core construction with moulded encapsulation for mechanical stability and durability.
- Suitable for use in DC-DC converters, noise filtering, and electronics in computers and portable devices.
- Compliant with RoHS standards and manufactured with high quality control in China.
Product Description
Eaton DR74-220-R is a magnetically shielded surface mount inductor with a ferrite core, engineered to provide 22 μH inductance with a tolerance of ±20 % and support a maximum DC current of 2.13 A. Featuring a 0704 package case, this wirewound inductor employs a moulded construction to maintain mechanical integrity and reliability across an operating temperature range from -40°C to 125°C.
This inductor is designed to reduce electromagnetic interference (EMI) through its magnetic shielding, making it ideal for compact electronic circuits where space and noise reduction are critical. Its compact size with dimensions of 7.6 mm length, 4.35 mm height, and 7.6 mm depth allows integration into dense printed circuit board layouts.
The Eaton DR series inductors are commonly used in DC-DC buck, boost, forward, and resonant converters as well as noise filtering applications in computers, DVD players, LCD panels, and portable electronic devices. The ferrite core provides high power density and efficiency, supporting robust electronic performance.
Magnetically shielded wirewound construction minimizes EMI and electromagnetic noise. Reliable performance under automotive standard exclusion conditions with a maximum operating temperature of 125°C. Surface mount termination style facilitates automated PCB assembly with reel packaging.
Compliant with RoHS directives ensuring environmental compliance. Manufactured in China ensuring quality standards adherence.
This product is categorized under Surface Mount Inductors within Electronics Components. Its robust features make it suitable for industrial, commercial, and laboratory applications requiring efficient power management and noise reduction in electronic designs.
Explore more high-quality inductors and surface mount electronic components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 22 μH with a tolerance of ±20%.
It supports a maximum DC current of 2.13 A.
This inductor has dimensions of 7.6 mm in length, 4.35 mm in height, and 7.6 mm in depth.
It operates within a temperature range of -40°C to 125°C.
The core material is ferrite, which contributes to its efficiency and performance.
It features a surface mount termination style, facilitating automated PCB assembly.
The maximum self-resonant frequency is 100 kHz.
Yes, it is compliant with RoHS standards, ensuring environmental compliance.
It is suitable for use in DC-DC converters, noise filtering, and various electronic devices such as computers and portable electronics.
This model is packaged in a reel format, which is convenient for automated assembly processes.
The magnetic shielding reduces electromagnetic interference (EMI), making it ideal for compact electronic circuits.
The maximum DC resistance is 92.5 mΩ, which contributes to its efficiency.
