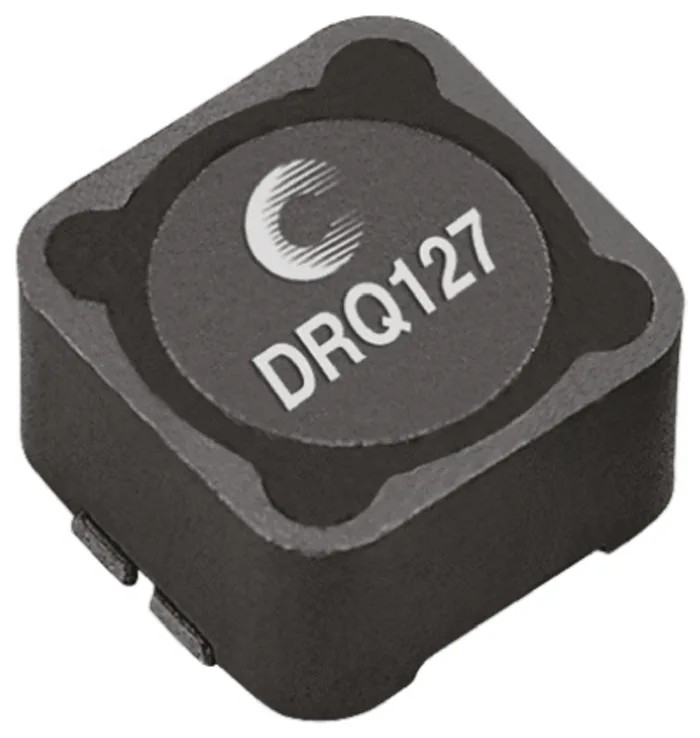

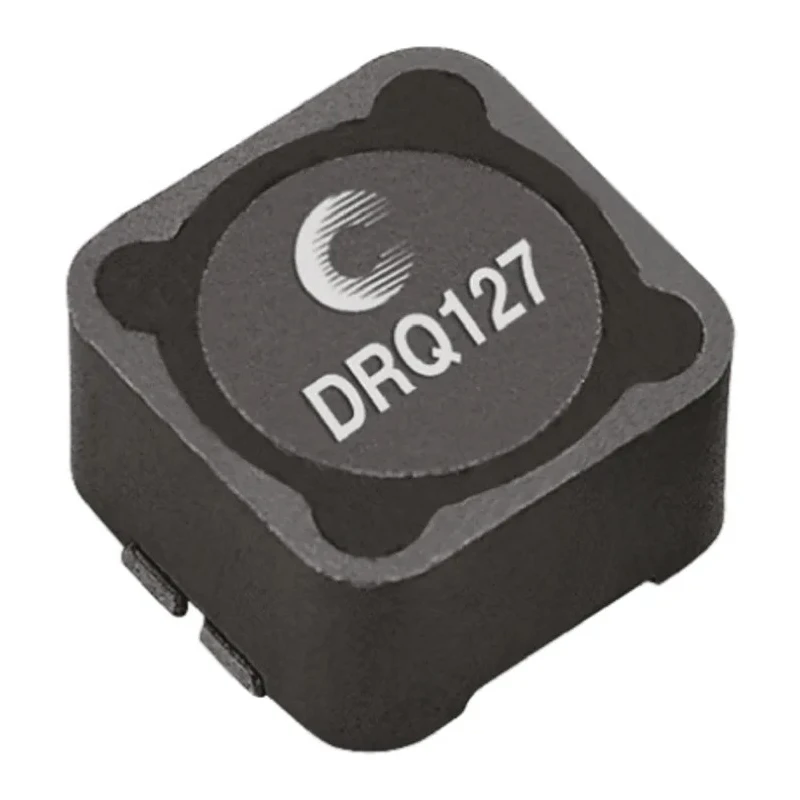

Eaton Shielded Surface Mount Inductor with Ferrite Core 33 μH ±20 % 6.22 A Idc DRQ127-330-R
Specifications
| Country of Origin | India |
|---|---|
| Brand | Eaton |
| Height | 8mm |
| Length | 12.5mm |
| Model | DRQ127-330-R |
| Depth | 12.5mm |
| Packaging | Reel |
| Series | DRQ |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 33μH |
| Standards/Approvals | RoHS |
| Package/Case | 0127 |
| Maximum DC Current | 6.22A |
| Pin Count | 4 |
| Maximum DC Resistance | 241mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
Key Features
- Shielded design helps reduce electromagnetic interference.
- Constructed with a ferrite core for efficient magnetic performance.
- Rated for a maximum operating temperature of 125°C.
- Surface mount package size 0127 with dimensions 12.5mm length, 12.5mm depth, and 8mm height.
- Wirewound inductor construction ensures reliability and stability.
- Inductance tolerance is ±20% for precision applications.
- Maximum DC resistance is 241 mΩ, limiting power loss.
- Supports up to 100kHz maximum self-resonant frequency.
Product Description
Eaton DRQ127-330-R Shielded Surface Mount Inductor is a high-performance component designed for reliable operation in electronic circuits. It features a ferrite core that provides excellent magnetic properties for inductance of 33 μH with a tolerance of ±20%. The component supports a maximum DC current rating of 6.22 A and can operate safely up to 125°C.
This inductor uses a wirewound construction in a compact 0127 surface mount package, measuring 12.5 mm in length and depth, and 8 mm in height. Designed to be shielded, it effectively reduces electromagnetic interference, making it suitable for sensitive electronic environments.
The DRQ series inductors are suitable for a variety of industrial and commercial applications including DC-DC converters, VRM inductors for CPU and DDR power supplies, input and output filter chokes, and use as transformers in SEPIC or flyback topologies.
The maximum DC resistance of 241 mΩ ensures minimal power dissipation, while the maximum self-resonant frequency of 100 kHz allows operation in high-frequency circuits. The product complies with RoHS standards ensuring environmentally responsible manufacturing.
Shielded design helps reduce electromagnetic interference. Ferrite core material enhances magnetic efficiency. Wirewound inductor construction provides durability. Supports high current of 6.22 A DC. Surface mount 0127 package with compact dimensions.
Inductance tolerance ±20% suitable for precision applications. Maximum operating temperature of 125°C for rugged use. RoHS compliant for environmental safety.
This inductor is ideal for applications in electronic manufacturing, telecommunications, computing devices, and power supply units. Eaton’s DRQ series offers reliable performance where compact size and high electrical characteristics are required.
Explore more Surface Mount Inductors and related electronic components in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 33 μH with a tolerance of ±20%.
The maximum DC current rating for this inductor is 6.22 A.
The surface mount package size is 0127, with dimensions of 12.5 mm in length, 12.5 mm in depth, and 8 mm in height.
It can operate safely at a maximum temperature of 125°C.
This inductor is constructed with a ferrite core, which enhances its magnetic efficiency.
The maximum self-resonant frequency is 100 kHz, allowing it to operate in high-frequency circuits.
The maximum DC resistance is 241 mΩ, which helps to minimize power dissipation.
The termination style is surface mount, suitable for various electronic applications.
It features a wirewound construction, providing reliability and stability in performance.
Yes, the DRQ127-330-R complies with RoHS standards, ensuring environmentally responsible manufacturing.
This inductor is suitable for applications such as DC-DC converters, VRM inductors for CPU and DDR power supplies, and input/output filter chokes.
The minimum operating temperature for this inductor is -40°C.
