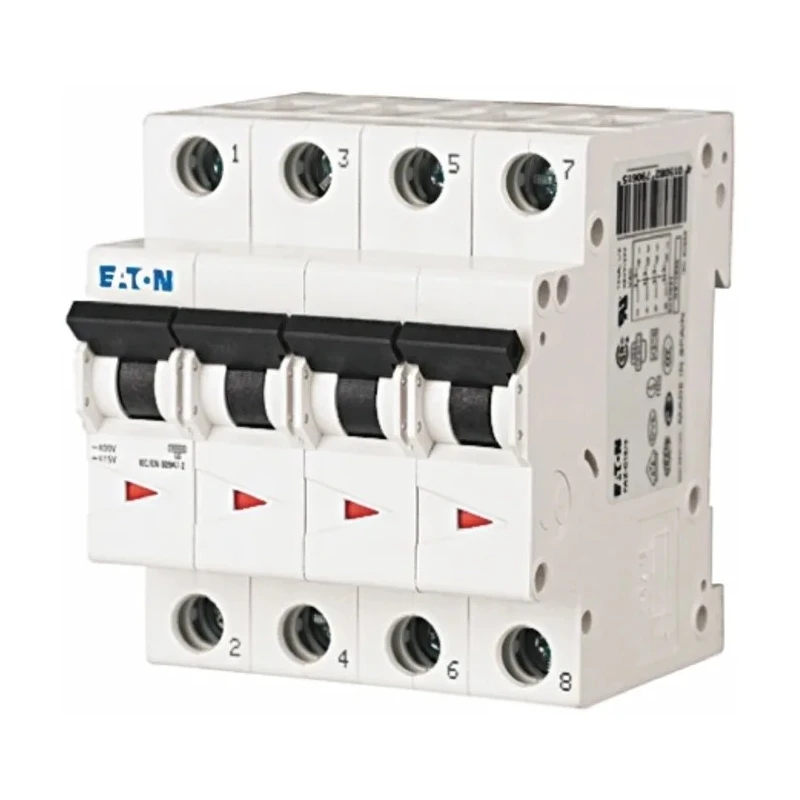

Eaton xEffect Miniature Circuit Breaker, 4-Pole, 6A, Type C, 400V AC, 6 kA Breaking Capacity FAZ6

Free Delivery in India | Lowest Global Shipping Charges

Eaton xEffect Miniature Circuit Breaker, 4-Pole, 6A, Type C, 400V AC, 6 kA Breaking Capacity FAZ6

Name: Eaton xEffect Miniature Circuit Breaker, 4-Pole, 6A, Type C, 400V AC, 6 kA Breaking Capacity FAZ6
Brand: Eaton
SKU: 230406
Price: 238.12 USD
Availability: InStock



Category Miniature Circuit Breaker Brand Eaton Condition New

Specifications

Country of Origin	India
Range	xEffect
Brand	Eaton
Model	FAZ6
Depth	62mm
IP Rating	IP20
Width	17.5mm
Mount Type	DIN Rail
Current Rating	6A
Series	xEffect
Breaking Capacity	6kA
Number of Poles	4
Standards/Approvals	EN 60898, IEC
Rated AC Voltage	400V ac
Tripping Characteristics	Type C
Tripping Mechanism	Thermal Magnetic
Reset Actuator Type	Toggle Switch
Break Time	Instantaneous
Type B	Instantaneous trip when the electrical current through the device is 3 to 5 times the rated current. The type B trip curve MCBs are designed for standard circuit protection, typically protection of generators, persons and very long cables
Type C	Instantaneous trip when the flow-through current is 5 to 10 times the rated current
Type D	Instantaneous trip when the flow-through current is 10 to 14 times the rated current
Type K	Instantaneous trip when the flow-through current is 10 to 14 times the rated current
Type S	Instantaneous trip when the flow-through current is 13 to 17 times the rated current
Type Z	Instantaneous trip when the flow-through current is 2 to 3 times the rated current
MCB Module widths	1P 17.5mm, 2P 35mm and 3P 52.5mm

Key Features

4-pole configuration for comprehensive circuit protection.
Type C tripping curve with instantaneous trip at 5 to 10 times rated current.
Rated AC voltage of 400V suitable for industrial applications.
6 kA breaking capacity ensures safe interruption of short circuits.
Thermal magnetic tripping mechanism with toggle switch reset actuator.
Compact width of 17.5mm per pole fits densely in electrical panels.
DIN rail mounting simplifies installation and maintenance.
IP20 finger-proof protection for enhanced safety.

Product Description

Eaton FAZ6 miniature circuit breaker is a 4-pole device rated at 6A current with Type C tripping characteristics and a breaking capacity of 6 kA at 400V AC. It is engineered for fast short-circuit interruption and overload protection to safeguard electrical systems in industrial, commercial, and residential settings.

This breaker includes thermal and electromagnetic releases, offering reliable protection against overload and short circuits. The device’s compact modular design (17.5mm width per pole) allows high-density installation on DIN rails, saving panel space and cost.

Featuring a toggle switch reset actuator and a trip-free mechanism, the FAZ6 series prevents the breaker from being held in the ON position to ensure safety during faults. It also provides IP20 finger-proof protection, minimizing hazard risks for operators working on live panels.

Manufactured to meet EN 60898 and IEC standards, the xEffect series from Eaton is suitable for electrical distribution boards, control circuits, and industrial equipment protection. The device’s clear contact position indication and robust design support ease of installation and reliable long-term operation.

4-pole configuration for comprehensive circuit protection. Type C tripping curve with instantaneous trip at 5 to 10 times rated current. Rated AC voltage of 400V suitable for industrial applications. 6 kA breaking capacity ensures safe interruption of short circuits.

Thermal magnetic tripping mechanism with toggle switch reset actuator. Compact width of 17.5mm per pole fits densely in electrical panels. DIN rail mounting simplifies installation and maintenance. IP20 finger-proof protection for enhanced safety.

Conforms to EN 60898 and IEC standards for quality assurance. Designed to prevent operation by holding handle in ON position, ensuring trip-free mechanism.

This Eaton miniature circuit breaker is ideal for industrial, commercial, electrical automation, and infrastructure applications requiring reliable circuit protection and compliance with international standards. Explore more in the Miniature Circuit Breaker category at EnvMart for a wide range of electrical protection devices.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The breaking capacity of the Eaton FAZ6 miniature circuit breaker is 6 kA, allowing for safe interruption of short circuits.

This model is rated for an AC voltage of 400V, making it suitable for industrial applications.

The FAZ6 features Type C tripping characteristics, which provide an instantaneous trip when the current is between 5 to 10 times the rated current.

The width of this circuit breaker is 17.5mm per pole, allowing for high-density installation in electrical panels.

This unit is designed for DIN rail mounting, which simplifies installation and maintenance.

The depth of this circuit breaker is 62mm.

It includes IP20 finger-proof protection to minimize hazard risks for operators working on live panels.

The circuit breaker utilizes a thermal magnetic tripping mechanism, which provides reliable protection against overload and short circuits.

This model conforms to EN 60898 and IEC standards, ensuring quality assurance for electrical protection.

The toggle switch reset actuator allows for easy resetting of the breaker after a trip, and the trip-free mechanism prevents it from being held in the ON position during faults.

The current rating of this miniature circuit breaker is 6A.

This circuit breaker is suitable for industrial, commercial, electrical automation, and infrastructure applications requiring reliable circuit protection.
