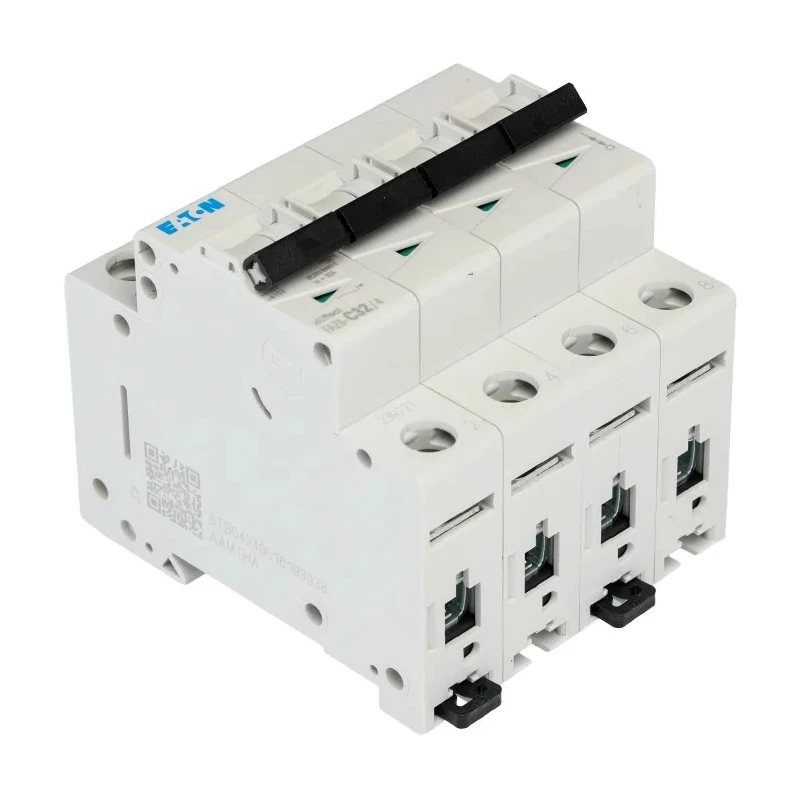

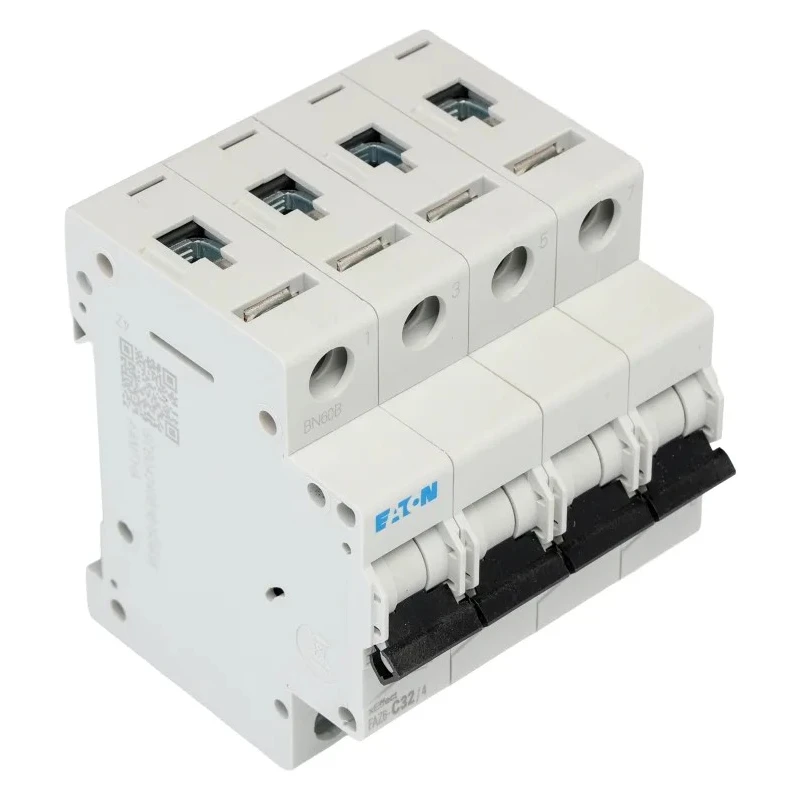

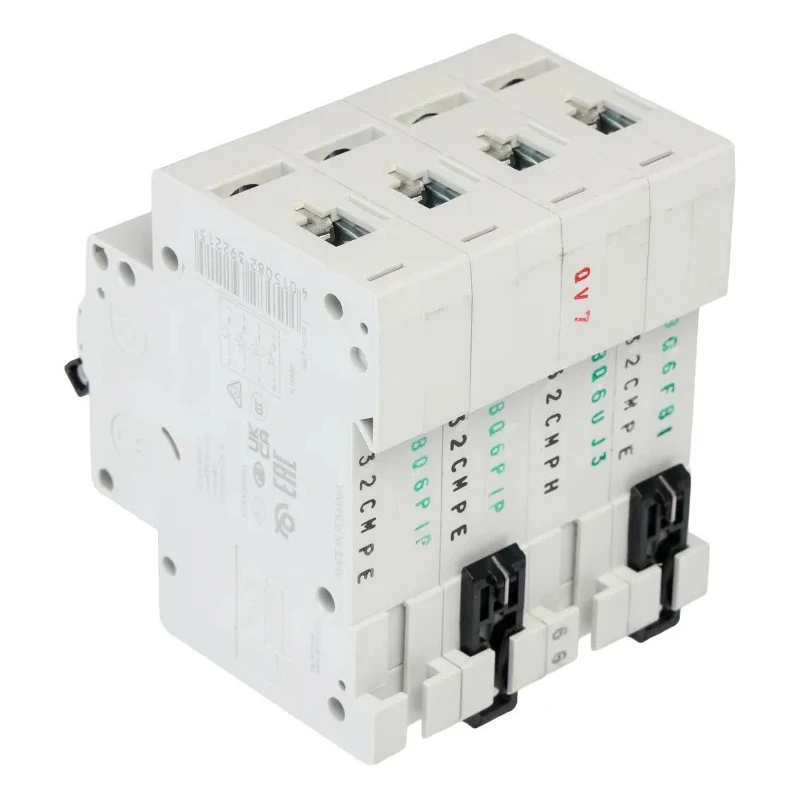

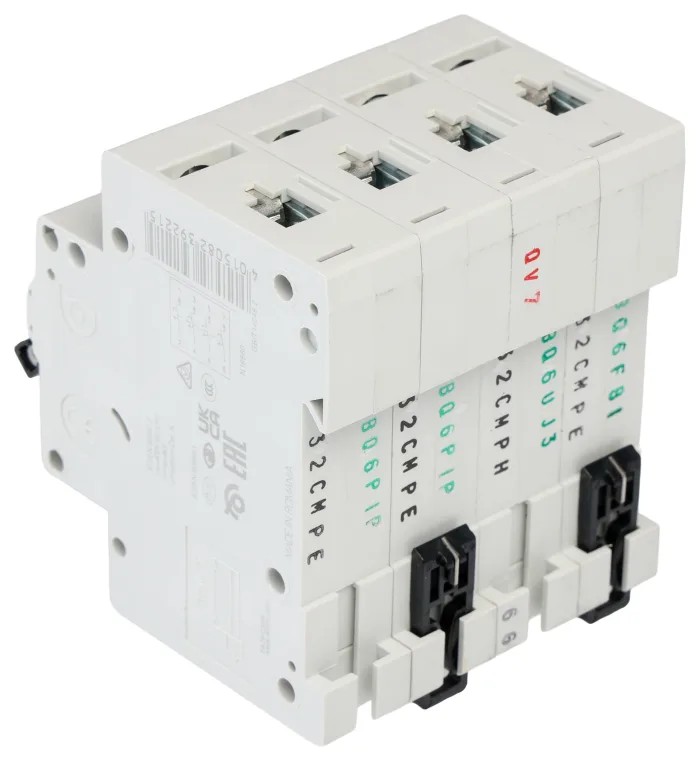

Eaton xEffect Miniature Circuit Breaker, 4-Pole, 32A, Type C, 400V AC, 6 kA Breaking Capacity FAZ6

Eaton FAZ6 Miniature Circuit Breaker is a high-performance electrical protection device designed for low voltage applications requiring reliable circuit breaking capability. This 4-pole MCB is rated at 32 amperes with a type C tripping characteristic, ideal for handling high inrush currents commonly found in industrial and commercial installations. It supports rated voltages up to 400V AC, making it adaptable across multiple electrical distribution scenarios.

The device features a thermal magnetic trip mechanism combined with instantaneous breaking time for fast fault clearance and enhanced safety. Installation is facilitated by DIN rail mounting compatibility and a compact form factor measuring 17.5mm in width and 62mm in depth. With an IP20 rating, it provides protection against solid foreign objects, suitable for typical indoor electrical environments.

Conductor accommodation is broad, allowing connection of both solid and multi-core cables with cross-sections from 1 to 25 mm², ensuring versatile wiring options. Compliance with IEC/EN 60947-2 standards guarantees that the MCB meets stringent international quality and safety requirements.

Its breaking capacity of 6 kA ensures effective interruption of short circuits, minimizing damage and downtime in power distribution systems. This MCB is well-suited for powering motor control, power distribution, residential and commercial wiring applications, and is designed to operate reliably within a temperature range of -25°C to 75°C.

Regular inspection and maintenance of connections and mechanical components are recommended to maintain optimal performance, especially in demanding industrial environments. Eaton, formerly known as Moeller, delivers trusted industrial electrical safety components with this FAZ6 series MCB.

Type C tripping characteristic suitable for high inrush currents. Rated for 400V AC voltage ensuring versatility for various electrical systems. 6 kA breaking capacity effectively interrupts short-circuits enhancing system safety.

Compact size with DIN rail mount for easy installation in industrial and residential setups. Supports conductor cross-sections ranging from 1 to 25 mm² for flexible wiring. IP20 rated providing basic protection against solid objects.

Thermal magnetic tripping mechanism for dependable performance. Toggle switch reset actuator enables quick manual reset. Complies with IEC/EN 60947-2 standards for quality assurance. Operates reliably in ambient temperatures from -25°C to 75°C.
