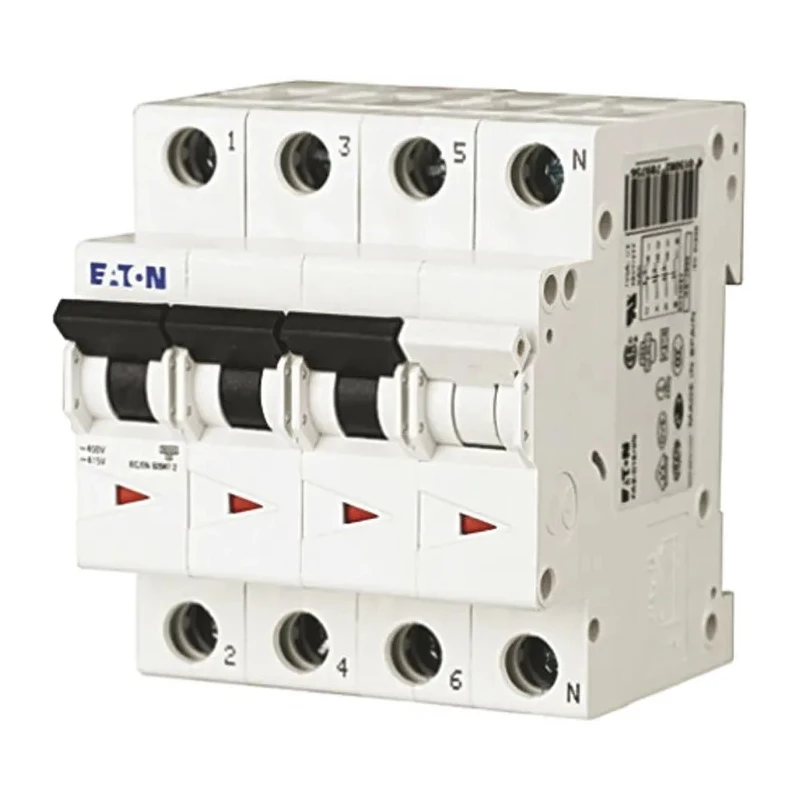

Eaton xEffect Miniature Circuit Breaker, 4-Pole, 20A, Type C, 400V AC, 6 kA Breaking Capacity FAZ6

Free Delivery in India | Lowest Global Shipping Charges

Eaton xEffect Miniature Circuit Breaker, 4-Pole, 20A, Type C, 400V AC, 6 kA Breaking Capacity FAZ6

Name: Eaton xEffect Miniature Circuit Breaker, 4-Pole, 20A, Type C, 400V AC, 6 kA Breaking Capacity FAZ6
Brand: Eaton
SKU: 230394
Price: 196.79 USD
Availability: InStock



Category Miniature Circuit Breaker Brand Eaton Condition New

Specifications

Country of Origin	India
Range	xEffect
Brand	Eaton
Model	FAZ6
Depth	62mm
IP Rating	IP20
Width	17.5mm
Mount Type	DIN Rail
Current Rating	20A
Series	xEffect
Breaking Capacity	6kA
Number of Poles	4
Standards/Approvals	IEC, EN 60898
Rated AC Voltage	400V ac
Tripping Characteristics	Type C
Tripping Mechanism	Thermal Magnetic
Reset Actuator Type	Toggle Switch
Break Time	Instantaneous
Type B	Instantaneous trip when the electrical current through the device is 3 to 5 times the rated current. The type B trip curve MCBs are designed for standard circuit protection, typically protection of generators, persons and very long cables
Type C	Instantaneous trip when the flow-through current is 5 to 10 times the rated current
Type D	Instantaneous trip when the flow-through current is 10 to 14 times the rated current
Type K	Instantaneous trip when the flow-through current is 10 to 14 times the rated current
Type S	Instantaneous trip when the flow-through current is 13 to 17 times the rated current
Type Z	Instantaneous trip when the flow-through current is 2 to 3 times the rated current
MCB Module widths	1P 17.5mm, 2P 35mm and 3P 52.5mm

Key Features

Thermal-magnetic overcurrent protection ensures reliable circuit interruption.
Suitable for 400V AC rated voltage applications.
Compact DIN rail mount design with 17.5 mm module width per pole.
Supports up to 6 kA breaking capacity for high short-circuit current conditions.
Toggle switch reset actuator with clear contact position indication.
Finger-proof and trip-free mechanism enhances operator safety.
Complies with IEC and EN 60898 standards for circuit breakers.
Quick and easy installation with secure terminal connection guide.

Product Description

Eaton FAZ6 Miniature Circuit Breaker, model FAZ6-C20/3N, is a 4-pole device designed for overload and short-circuit protection in electrical circuits with a current rating of 20A and a Type C tripping characteristic. It operates at rated voltages up to 400V AC and features a thermal-magnetic breaker mechanism to ensure fast and reliable interruption of fault currents.

This MCB excels in protecting control circuits and electrical distribution boards, providing enhanced safety with a trip-free mechanism that cannot be overridden by holding the switch in the ON position. The device is also finger-proof, reducing the risk of accidental electrical contact.

The compact design allows easy DIN rail mounting with a slim module width of 17.5 mm per pole, saving panel space and cost. Its breaking capacity of 6 kA accommodates typical short-circuit currents found in industrial and commercial installations.

Standards compliance includes IEC and EN 60898, ensuring the circuit breaker meets international safety and performance requirements. The product comes with technical features such as an instantaneous break time and a toggle switch reset actuator for user-friendly operation.

Thermal-magnetic overcurrent protection prevents damage from overloads and faults. Short-circuit breaking capacity of 6 kA enhances system safety and reliability. Compact 4-pole design supports balanced three-phase protection.

Module widths for single and multi-pole versions optimize panel space. Easy and secure installation using DIN rail mounting with terminal guides. Designed for electrical distribution in industrial, commercial, and residential applications.

Trip-free mechanism prevents inadvertent operation, enhancing safety. Clear indication of switch position ensures operational transparency.

This Eaton FAZ6 MCB is ideal for use in industrial manufacturing, electrical distribution systems, construction sites, HVAC systems, and commercial electrical protection. It provides dependable circuit interruption to safeguard personnel and equipment from electrical faults.

Explore additional circuit protection solutions in the Electronics & Electricals category at EnvMart for reliable and high-quality electrical components.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The Eaton FAZ6 Miniature Circuit Breaker has a current rating of 20A.

This model has a breaking capacity of 6 kA, suitable for high short-circuit current conditions.

It is rated for a maximum AC voltage of 400V.

The Eaton FAZ6 is a 4-pole circuit breaker.

It uses a thermal-magnetic tripping mechanism for reliable circuit interruption.

The dimensions are 62mm in depth and 17.5mm in width per pole.

This circuit breaker is designed for DIN rail mounting.

It complies with IEC and EN 60898 standards for circuit breakers.

The toggle switch reset actuator allows for user-friendly operation and clear indication of the switch position.

The Eaton FAZ6 has an IP20 rating, indicating protection against solid objects greater than 12.5 mm but not against water.

It is suitable for use in industrial manufacturing, electrical distribution systems, construction sites, HVAC systems, and commercial electrical protection.

The break time for this model is instantaneous, ensuring rapid interruption of fault currents.
