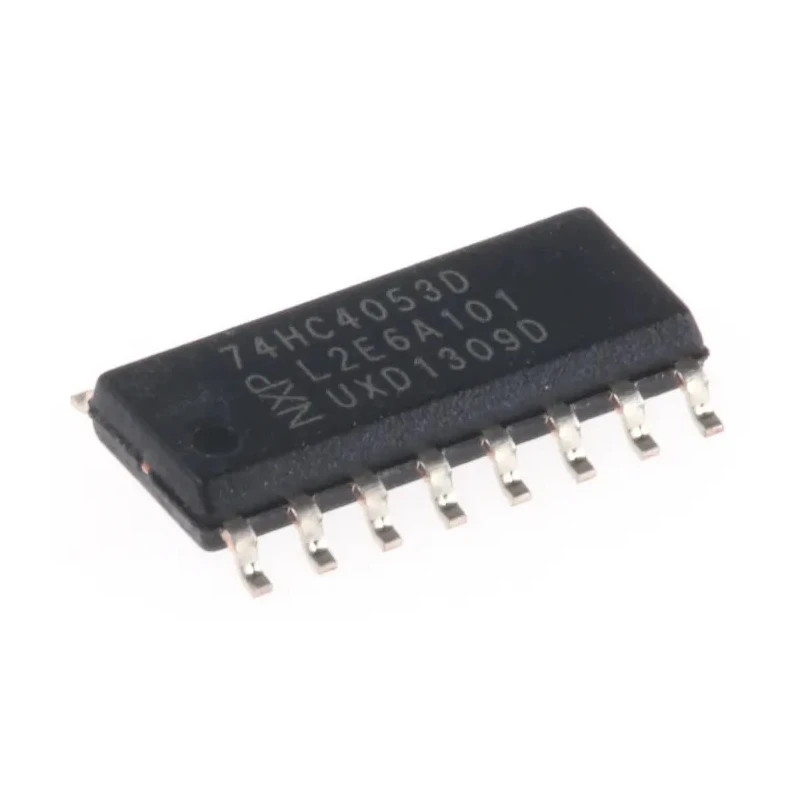

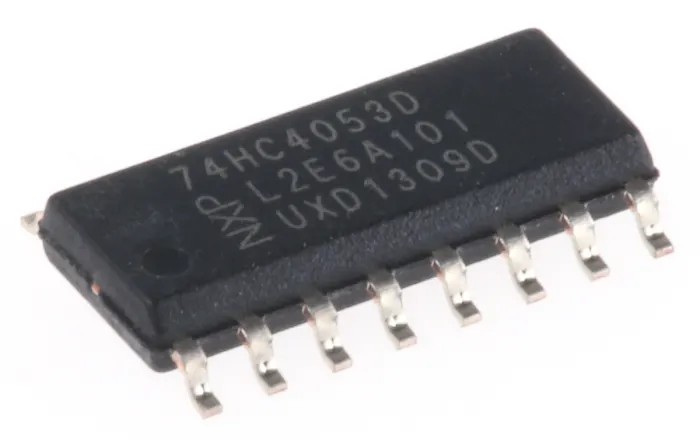

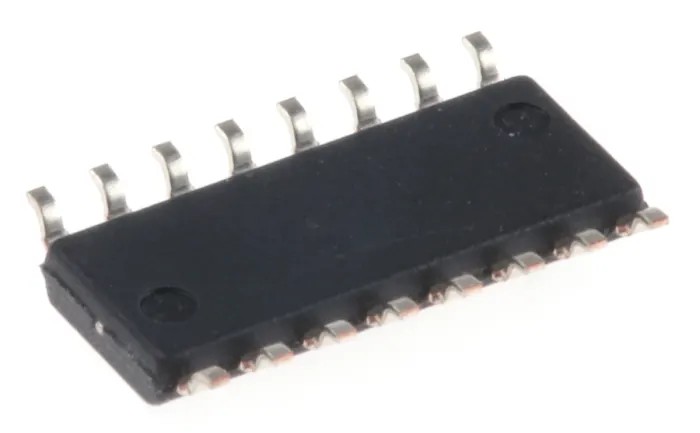

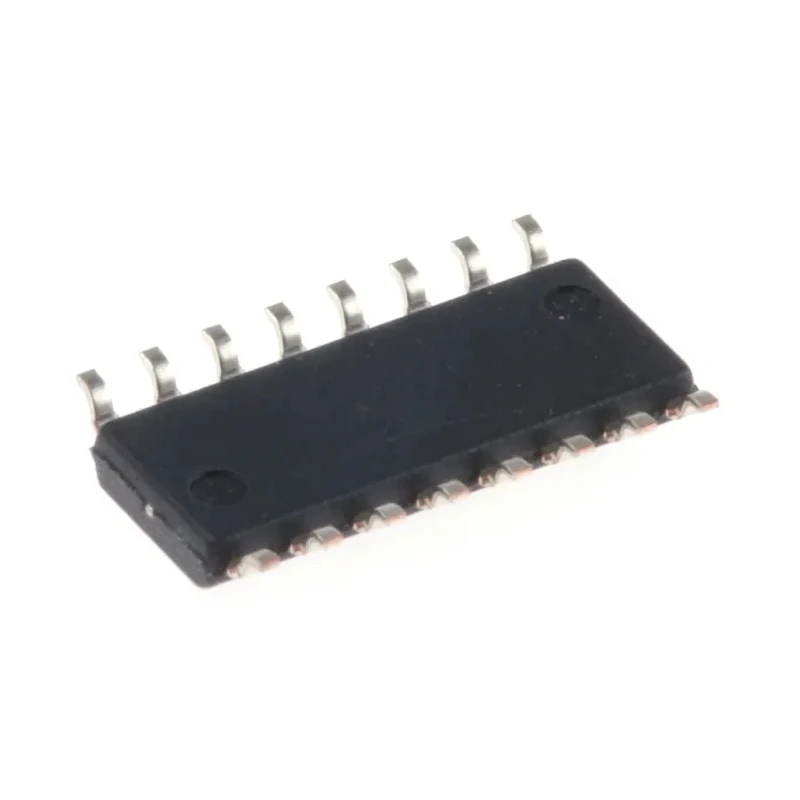

Nexperia Multiplexer/Demultiplexer CMOS Logic IC 16-Pin SOIC Triple Configuration 2 to 6 V Operating Voltage 74HC4053D,652

Nexperia 74HC4053D,652 Multiplexer/Demultiplexer CMOS logic integrated circuit is designed for high-speed signal multiplexing and demultiplexing applications. Operating within a voltage range of 2 to 6 V, this device combines three independent CMOS multiplexers/demultiplexers in a single 16-pin SOIC surface-mount package with dimensions 10 mm length, 4 mm width, and 1.45 mm height. It features a maximum on-state resistance of 180 ohms and supports operation from -40°C to 125°C.

This triple configuration IC is compatible with CMOS logic families, providing low power consumption and high-speed performance, making it suitable for digital switching and signal routing in diverse electronic systems.

The Nexperia 74HC4053D,652 is widely used in industrial controls, communication equipment, laboratory instrumentation, and other electronic devices requiring reliable and efficient multiplexing solutions. Its robust design and surface-mount form factor facilitate integration into modern printed circuit boards.

This device integrates three analog multiplexers/demultiplexers in one chip for multiplexing signals efficiently. CMOS technology allows for low power consumption and high-speed operation. The SOIC package enables compact, surface-mount PCB designs.

Suitable for operating voltages from 2 V to 6 V with maximum supply voltage up to 10 V. Capable of functioning across a wide temperature range of -40°C to 125°C for industrial reliability. Max on-state resistance of 180 ohms helps maintain signal integrity during switching.

Compatible with CMOS logic input and output levels for seamless interfacing. Ideal for use in electronic, industrial, and laboratory multiplexing/demultiplexing applications. Explore the extensive Nexperia range of CMOS logic ICs on EnvMart for your electronic component needs.
