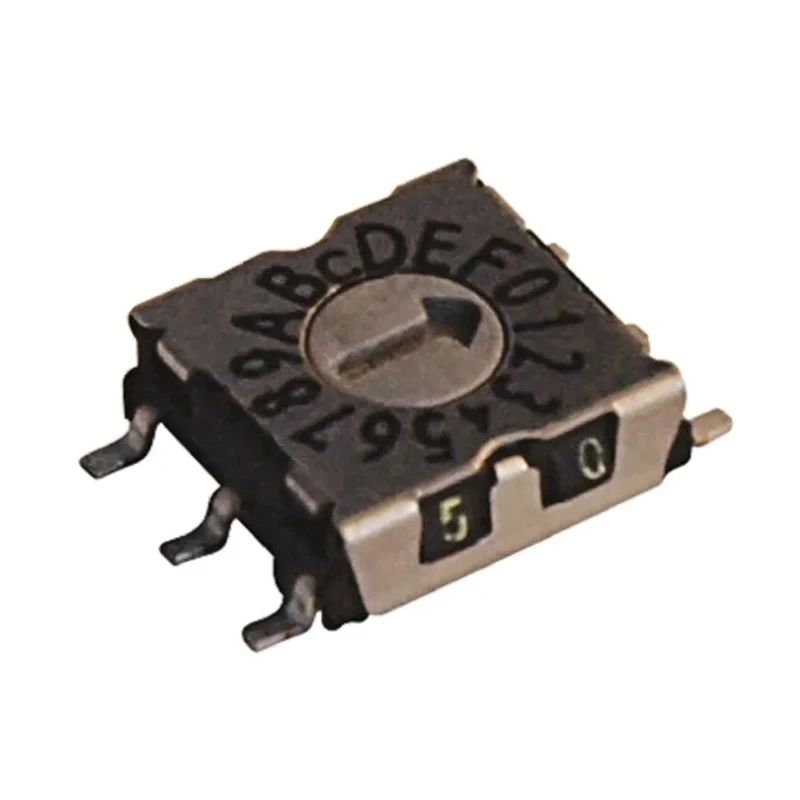

Hartmann Slotted Spindle Rotary Coded DIP Switch Surface Mount Through Hole P25SMT103
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Hartmann |
| Model | P25SMT103 |
| Mount Type | Surface |
| Series | P25 |
| Actuator Type | Slotted spindle |
| Terminal type | Through Hole |
| Footprint/pin spacing | 2.54mm between pins and 5.08mm between rows |
| Subminiature build | 2.5mm height, 7.0mm length |
Key Features
- Subminiature build with 2.5mm height and 7.0mm length for compact applications.
- Solid tinned PCB pins ensure reliable connections and assembly.
- Hard gold plated contacts provide low and stable contact resistance with abrasion resistance.
- Lateral C-contact design with the common contact running across the top of the switch.
- Pin spacing footprint of 2.54mm between pins and 5.08mm between rows for standard PCB compatibility.
- Features a precise detention mechanism for quick and accurate rotary positioning.
- Manufactured in Germany ensuring high quality and performance reliability.
Product Description
Hartmann P25SMT103 is a slotted spindle rotary coded DIP switch designed for surface mount applications with through hole terminals. This subminiature switch from the P25 series offers a highly compact solution measuring 2.5mm in height and 7.0mm in length, ideal for space-constrained electronic assemblies. It incorporates solid tinned PCB pins that deliver trouble-free assembly and secure, stable connections to the printed circuit board.
The contacts are hard gold plated to resist abrasion and provide low, stable contact resistance, enhancing durability and performance. Its lateral C-contact design ensures that the common contact runs across the top of the switch, improving reliable current flow. The switch also features clearly visible figures and a precise detention mechanism, allowing fast and easy operation.
This rotary coded DIP switch uses a footprint with pin spacing of 2.54mm between pins and 5.08mm between rows, adhering to common PCB standards. Manufactured in Germany, the P25SMT103 assures superior quality and consistency for use in electrical, industrial automation, and electronic device manufacturing applications.
Typical use cases for the Hartmann P25SMT103 include industrial control systems, consumer electronics, instrumentation, and any application requiring reliable and precise rotary switch actuation in a compact form factor.
Compact subminiature build for space-saving integration. Robust gold-plated contacts for low resistance and durability. Standard PCB footprint facilitating easy board mounting. Reliable lateral C-contact configuration for stable electrical connections.
Precise deterrent mechanism enabling quick rotary positioning. High manufacturing standards from Germany ensuring reliability. Explore more Rotary Coded DIP Switches and electronic components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a subminiature build with a height of 2.5mm and a length of 7.0mm, making it suitable for compact applications.
It utilizes through hole terminals, ensuring secure connections to the printed circuit board.
The switch has a pin spacing of 2.54mm between pins and 5.08mm between rows, adhering to standard PCB compatibility.
This model features a slotted spindle actuator type, allowing for precise rotary positioning.
It is manufactured in Germany, ensuring high quality and performance reliability.
It incorporates a lateral C-contact design with the common contact running across the top, which enhances reliable current flow.
The contacts are hard gold plated, providing low and stable contact resistance and enhancing durability.
It is typically used in industrial control systems, consumer electronics, instrumentation, and other applications requiring reliable rotary switch actuation in a compact form factor.
The P25SMT103 belongs to the P25 series of rotary coded DIP switches.
This unit is designed for surface mounting, making it easy to integrate into various electronic assemblies.
The switch features a precise detention mechanism that allows for quick and accurate rotary positioning, facilitating easy operation.
Key features include a subminiature build, solid tinned PCB pins for reliable connections, hard gold plated contacts, and a standard PCB footprint for easy mounting.
