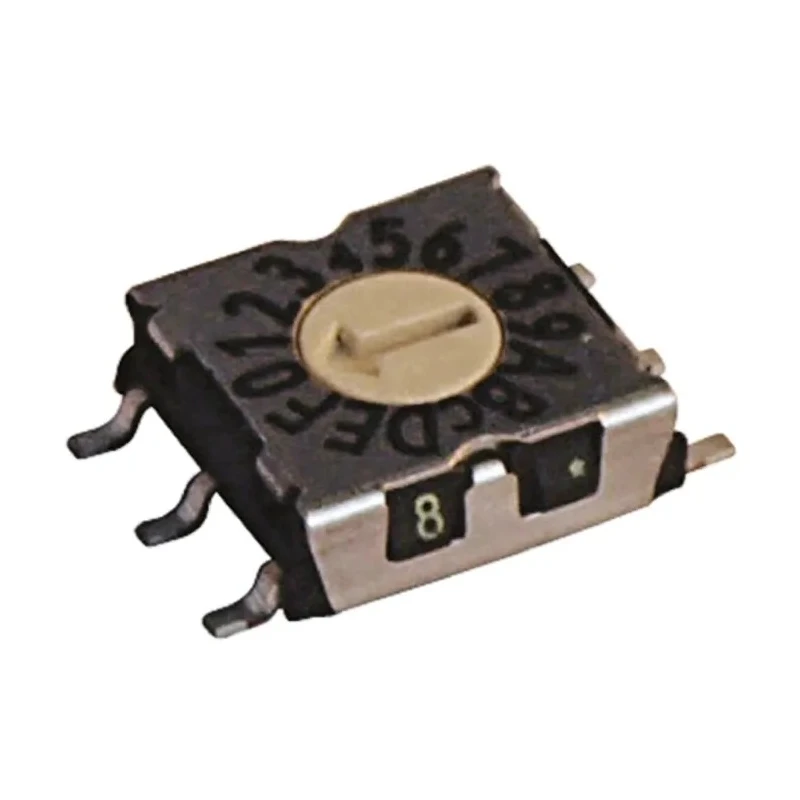

Hartmann Slotted spindle Rotary Coded DIP Switch Surface Mount Through Hole P25SMT106
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Hartmann |
| Model | P25SMT106 |
| Mount Type | Surface |
| Series | P25 |
| Actuator Type | Slotted spindle |
| Terminal type | Through Hole |
| Footprint/pin spacing | 2.54mm between pins and 5.08mm between rows |
| Subminiature build | 2.5mm height, 7.0mm length |
Key Features
- The P25 series offers a compact 2.5mm height and 7.0mm length subminiature build.
- Features abrasion-resistant hard gold plated contacts for low contact resistance.
- Lateral C-contact design with common contact running across the switch top.
- Solid tinned PCB pins ensure reliable assembly and stable connections.
- Precise detention mechanism and clearly visible figures for easy operation.
- Pin spacing footprint is 2.54mm between pins and 5.08mm between rows.
Product Description
Hartmann P25SMT106 is a subminiature rotary coded DIP switch designed for reliable and compact switching needs in electronic circuits. The slotted spindle actuator allows precise multi-position coding with surface mount capability on PCBs using through-hole pins.
This model belongs to Hartmann's P25 series, featuring a small form factor of 2.5mm height and 7.0mm length, ideal for space-constrained industrial and laboratory electronics.
Contact points are hard gold plated to ensure long-lasting, low resistance connections, resistant to wear and oxidation. The switch utilizes a lateral C-contact configuration, where the common contact spans across the switch's top surface, enhancing conductivity and mechanical stability.
The solid tinned PCB pins provide robust mechanical fix and electrical connectivity, with a standardized footprint offering 2.54mm pin pitch and 5.08mm row spacing, compatible with typical PCB layouts.
This rotary coded DIP switch is suitable for use in industrial automation systems, electronic equipment, instrumentation, and any application requiring accurate, reliable coding in a miniature footprint.
The P25 series is known for fast, easy operation due to its clear numeric indicators and precise detent mechanism. It is manufactured in Germany to high quality standards, ensuring durability and performance. Ideal for rotary encoded DIP switch applications in automation and control systems.
Explore more Hartmann Rotary Coded DIP Switches and compatible electronic components at EnvMart for your industrial and laboratory automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a subminiature build with a height of 2.5mm and a length of 7.0mm.
The P25SMT106 is designed for surface mounting on PCBs using through-hole pins.
The pin spacing footprint is 2.54mm between pins and 5.08mm between rows.
It features a slotted spindle actuator, allowing for precise multi-position coding.
This switch is manufactured in Germany to high quality standards.
The switch utilizes abrasion-resistant hard gold plated contacts for low contact resistance.
It is suitable for use in industrial automation systems, electronic equipment, and instrumentation requiring reliable coding.
The P25SMT106 features a precise detent mechanism, providing clear feedback and easy operation.
This model belongs to the P25 series of rotary coded DIP switches.
It has a through-hole terminal type, ensuring reliable assembly and stable connections.
The switch utilizes a lateral C-contact design, with the common contact running across the switch top.
It includes clearly visible figures for easy operation and a precise detent mechanism for fast action.
