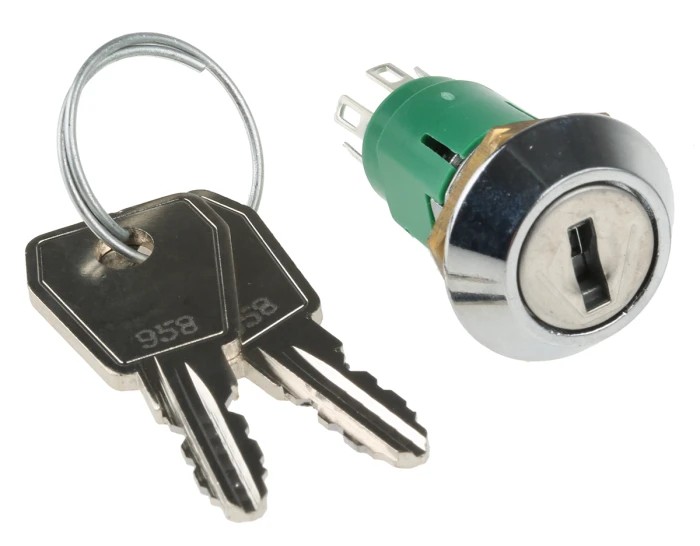

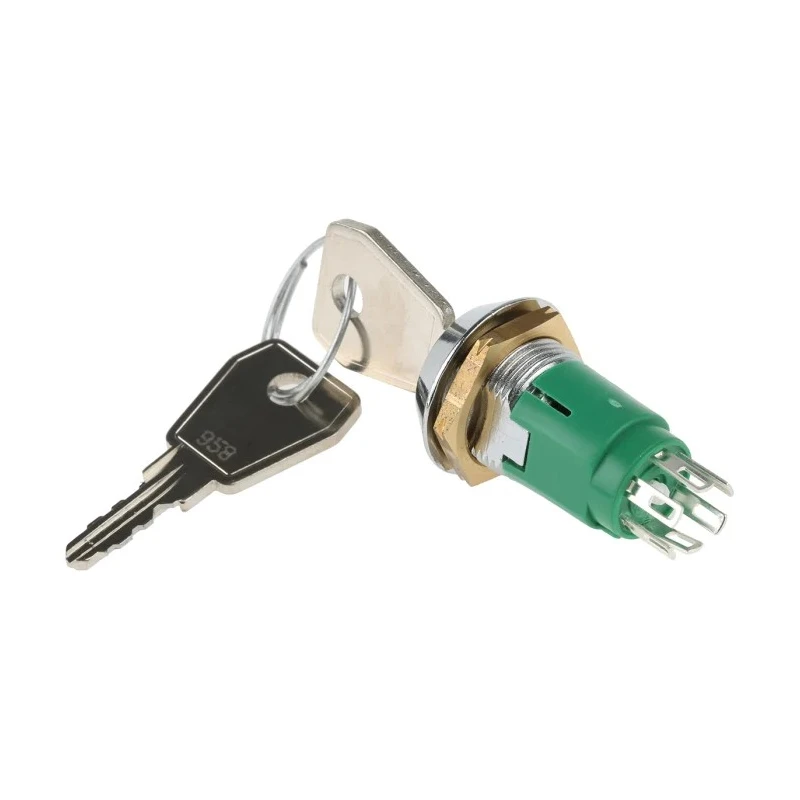

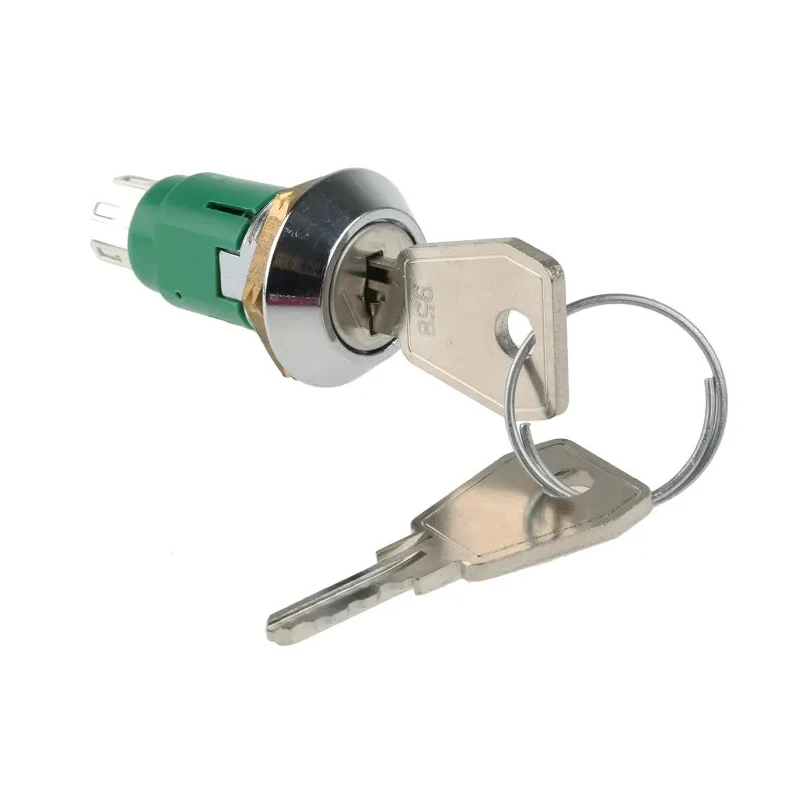

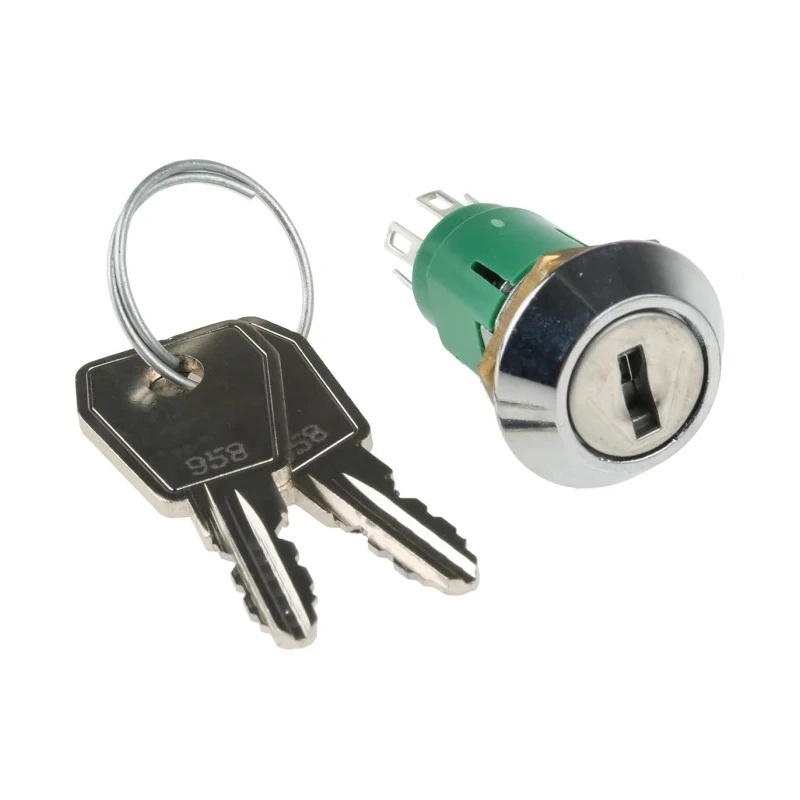

Lorlin Key Switch Double Pole Double Throw DPDT Momentary Operation 1A 24V DC Tapered Bezel Random-Key IRL-5-M-D-2-RS

Lorlin IRL-5-M-D-2-RS Key Switch is designed for industrial and electrical control panels requiring secure and reliable switching. It features a robust DPDT (Double Pole Double Throw) contact configuration rated at 1 ampere for 24V DC applications, delivering reliable momentary switch operation.

This key switch incorporates a random key trapping system, enhancing security by allowing only authorized operation with the supplied nickel-plated keys. The polyamide housing and tapered bezel provide durability and aesthetics suitable for various industrial environments.

The switch contacts are silver-plated brass, ensuring long-term conductivity and resistance to corrosion. Its mechanical life of 10,000 cycles guarantees longevity in control panel applications. With an operational temperature range from -20°C to 65°C, it is suitable for diverse environments including manufacturing, automation, and lighting control systems.

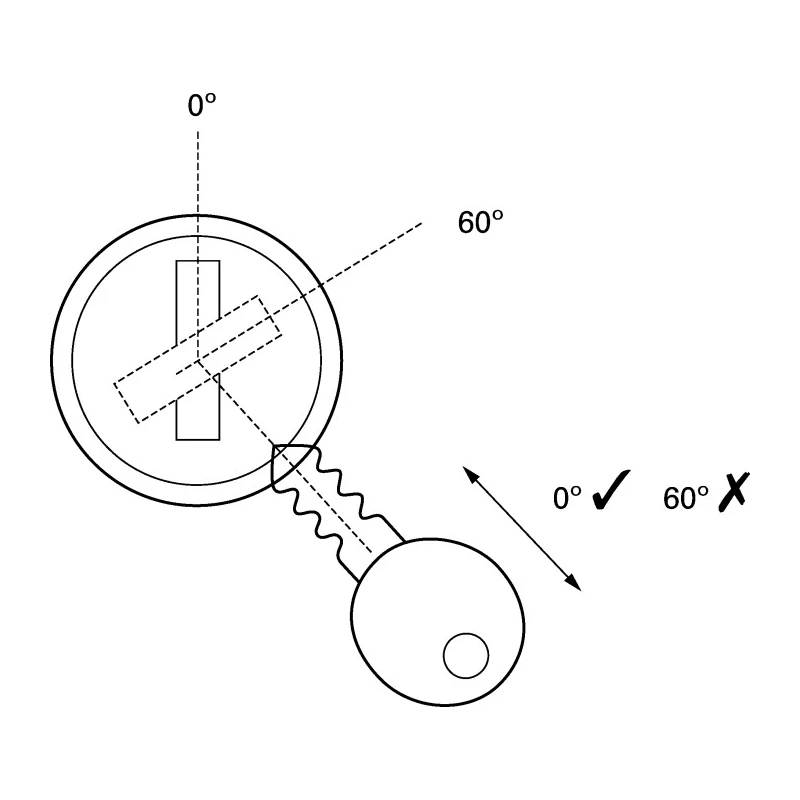

Its compact design includes a key index angle of 60 degrees and a panel depth requirement of 29.6 mm, making it easy to incorporate into existing control setups. The switch terminates with solder terminals for secure and reliable electrical connections.

Double Pole Double Throw (DPDT) contact configuration offers versatile circuit control. Momentary switch operation ideal for temporary activations. Random key trapping mechanism improves operational security. Durable polyamide case and tapered bezel for enhanced robustness.

Silver-plated brass contacts ensure consistent conductivity. Rated at 1A, 24V DC for low voltage electrical applications. Mechanical life of 10,000 cycles ensures dependable performance. Operating temperature from -20°C to 65°C for varied industrial use.

Includes two nickel-plated mild steel keys for secure access.

This key switch is commonly applied in control panels, lighting operations, and other industrial automation settings requiring secure and reliable switch actuation. The product meets RoHS compliance and relevant standards, assuring quality and environmental considerations.
