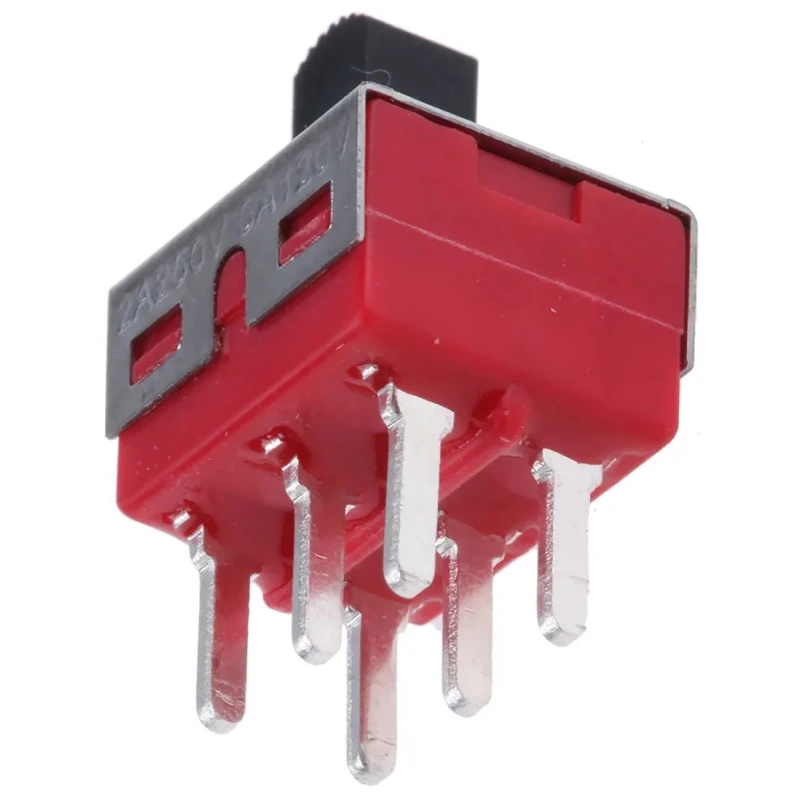

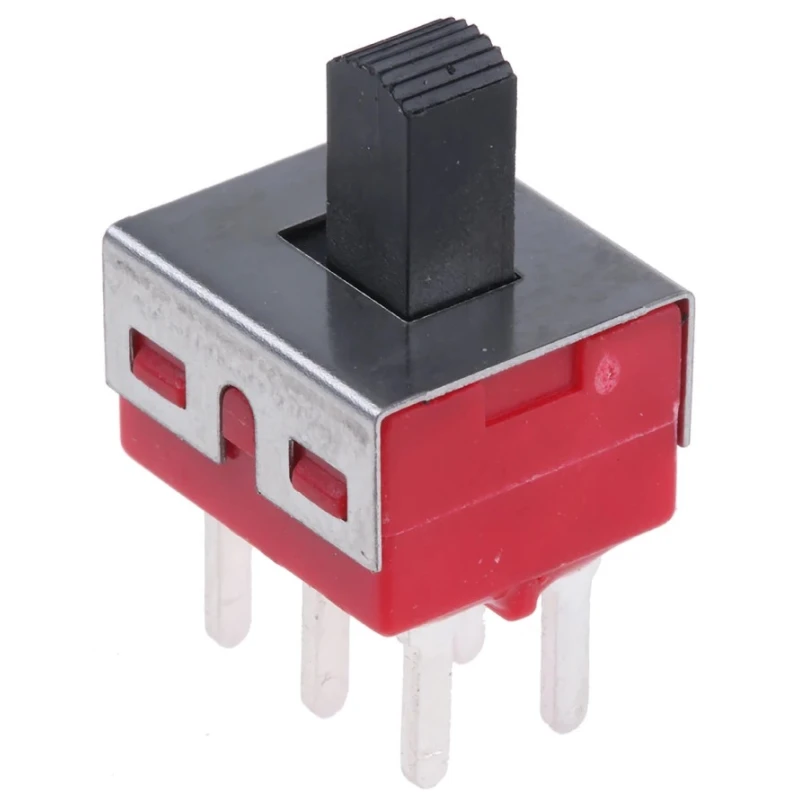

RS PRO PCB Slide Switch DPDT Latching 5A Silver Plated Brass 734-7270

RS PRO 734-7270 is a high-quality PCB Slide Switch featuring a double pole double throw (DPDT) contact configuration with latching operation. It supports a contact current of 5 amperes and can handle a DC voltage up to 28 volts, making it suitable for various electrical and electronic applications requiring reliable switching.

This switch is designed for easy PCB mounting with solder terminal types, enabling secure connections. The actuator is crafted from silver plated brass, offering enhanced durability and corrosion resistance, ideal for demanding industrial environments.

The compact physical size with an 11.43 mm length, 12.7 mm width, and 12.7 mm depth allows integration into tight spaces on circuit boards or front panel controls. Compliance with RoHS standards ensures environmental safety and regulatory conformity.

With a mechanical life rated at 30,000 cycles, the RS PRO 734-7270 slide switch provides robust reliability for long-term use in automation, instrumentation, medical devices, telecommunications, and white goods.

The switch is engineered to operate effectively in temperatures from -30°C up to 85°C, making it suitable for both industrial and commercial applications requiring resilience under varying environmental conditions. Its On-None-On configuration with no illumination simplifies control logic and reduces power consumption.

This switch offers a double pole double throw (DPDT) contact configuration. Designed for PCB mounting with solder terminals for secure attachment. Latching operation supports stable and reliable switching positions. Contact current rated at 5A with a maximum DC voltage of 28V for diverse applications.

Silver plated brass actuator material provides longevity and corrosion resistance. Compact dimensions: 11.43mm length, 12.7mm width, and 12.7mm depth. RoHS compliant, meeting environmental protection standards. Mechanical life expectancy of 30,000 cycles ensures durable performance.

Operational temperature range from -30°C to 85°C for harsh environments. Switch configuration is On-None-On and non-illuminated.

This RS PRO PCB Slide Switch model 734-7270 is ideal for industrial, laboratory, telecommunications, and automation systems requiring dependable switching solutions. Explore EnvMart for more RS PRO industrial switch components and assemblies.
