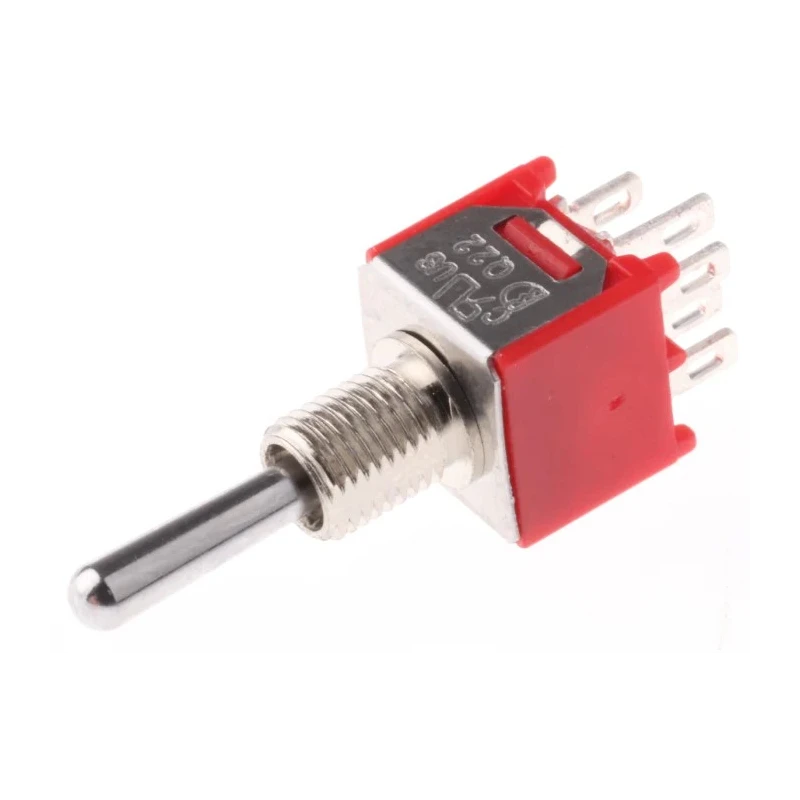

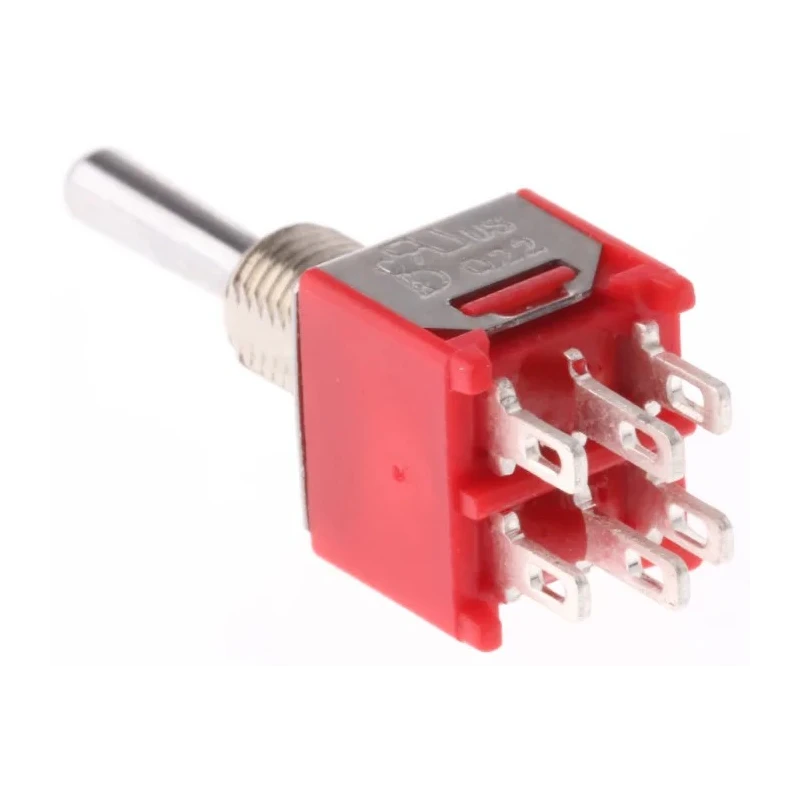

RS PRO Toggle Switch Panel Mount On-On-On DPDT Solder Terminal 15 V dc 240 V ac 7347202P

RS PRO 7347202P is a sub-miniature toggle switch designed for panel mounting in electrical, automation, and industrial control applications. It features a double-pole double-throw (DPDT) On-On-On contact configuration enabling multiple circuit switching options. Rated to operate at 15 V dc and 240 V ac with a contact current of 3A, this switch meets common electrical control standards.

The actuator is made from durable chrome plated brass and measures 9.4 mm in length. It fits a 4.95 mm panel cutout size, providing ease of installation and compatibility with standard panel designs. The switch terminals are of solder type, allowing secure electrical connections.

Designed for demanding environments, it carries IP56 and IP66 ingress protection ratings that ensure resistance against dust ingress and powerful water jets. Operating temperature ranges from -30°C to 85°C, assuring reliable performance across varied industrial conditions.

This toggle switch complies with RoHS and lead-free environmental directives, making it a responsible choice for modern electronic manufacturing. It is rated for a mechanical life of 30,000 cycles, promising longevity and consistent switching action over extensive operational periods.

Typical applications include industrial machinery controls, automation systems, electrical panels, and other commercial or laboratory equipment requiring robust and precise manual switching reliability. The switch supports control and signal switching needs within electronic and electrical installations.

Double-pole double-throw contact configuration for versatile circuit control. Solder terminal type for secure and durable connections. Chrome plated brass actuator with 9.4 mm length for durability and ease of use. Panel mount design with 4.95 mm cutout for easy installation.

Electrical ratings of 15V dc and 240V ac at 3A current capacity. IP56 and IP66 ratings provide water and dust resistance. RoHS & Lead-free compliant ensuring environmental safety. Supports operation between -30°C to 85°C temperature range.

Mechanical life of 30,000 cycles for extended usage reliability. Non-illuminated design suitable for standard toggle applications. Explore RS PRO Toggle Switches and other high-quality electrical components at EnvMart for seamless integration into your industrial and commercial projects.
