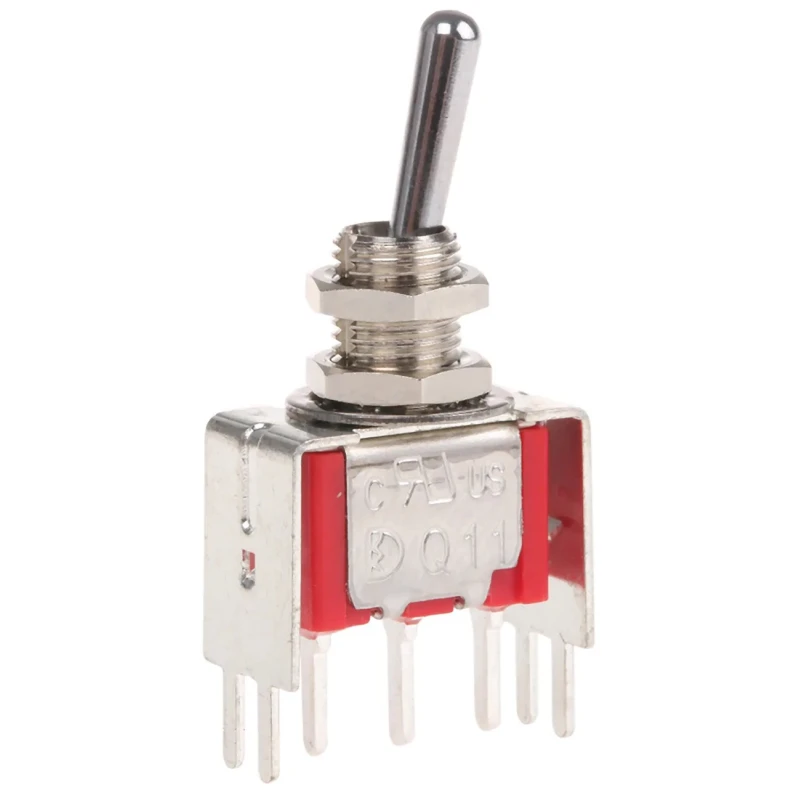

RS PRO PCB Mount Toggle Switch On-On SPDT Through Hole Terminal 26 V dc 112 V ac 734-7075
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 734-7075 |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-(On) |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Through Hole |
| Standards/Approvals | CE, RoHS, UL, CSA |
| Switch Operation | On-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 26V dc |
| Switch Contact Current | 5A |
| Mechanical Life | 40000Cycles |
| Contact AC Voltage | 112V ac |
| Actuator Material | Chrome Plated Brass |
Key Features
- Compact PCB mount design suitable for miniature toggle switch applications.
- Switch contact current rating of 5A ensures reliable circuit switching.
- Operating temperatures range from minus 30°C to 85°C for durable performance.
- Chrome plated brass actuator provides corrosion resistance and durability.
- Mechanical life rated at 40,000 cycles for long-term use.
- Panel cutout size of 6.35 mm and actuator length of 10.41 mm for precise fitting.
- Complies with CE, RoHS, UL, and CSA standards for safety and quality.
- SPDT On-(On) switch configuration suitable for varied circuit control.
Product Description
RS PRO 734-7075 is a PCB mount miniature toggle switch designed for reliable electronic circuit control. It features a single pole double throw (SPDT) On-On switch configuration suitable for low voltage DC and AC applications.
This switch supports a contact current of 5 amperes and is rated for contact voltages up to 26 V dc and 112 V ac. The chrome plated brass actuator ensures durability and resistance to corrosion, while the through hole terminal type facilitates secure mounting on printed circuit boards.
Operating effectively in a wide temperature range from -30°C to 85°C, this toggle switch is designed to sustain long-term use backed by a mechanical life of 40,000 cycles. The panel cutout size of 6.35 mm and actuator length of 10.41 mm allow for precise integration into electrical panels and equipment.
The product adheres to recognized industry certifications including CE, RoHS compliance, UL, and CSA approvals, assuring users of its quality and safety standards.
This miniature toggle switch finds application across industrial automation, electronic devices, control systems, and electrical equipment requiring compact and reliable switching.
Its robust design and compliance with international standards make it an excellent choice for engineering, manufacturing, laboratory instrumentation, and HVAC control systems. Compact PCB mount design suitable for miniature toggle switch applications.
Switch contact current rating of 5A ensures reliable circuit switching. Operating temperatures range from minus 30°C to 85°C for durable performance. Chrome plated brass actuator provides corrosion resistance and durability.
Mechanical life rated at 40,000 cycles for long-term use. Panel cutout size of 6.35 mm and actuator length of 10.41 mm for precise fitting. Complies with CE, RoHS, UL, and CSA standards for safety and quality. SPDT On-(On) switch configuration suitable for varied circuit control.
Explore more high-quality Toggle Switches and other electrical components in the Electronics & Electricals section of EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of this toggle switch is 5A, ensuring reliable circuit switching for various applications.
This model is rated for contact voltages of up to 26 V DC and 112 V AC, making it suitable for low voltage applications.
The switch operates effectively within a temperature range of -30°C to 85°C, allowing for use in diverse environments.
This toggle switch is designed for PCB mounting, utilizing a through hole terminal type for secure installation on printed circuit boards.
The mechanical life of this switch is rated at 40,000 cycles, indicating its suitability for long-term use in various applications.
The actuator is made of chrome plated brass, providing resistance to corrosion and enhancing durability.
The panel cutout size required for this switch is 6.35 mm, ensuring precise fitting in electrical panels and equipment.
This toggle switch complies with CE, RoHS, UL, and CSA standards, assuring users of its safety and quality.
This model features a single pole double throw (SPDT) On-On switch configuration, suitable for varied circuit control.
This toggle switch is suitable for applications in industrial automation, electronic devices, control systems, and HVAC control systems.
The actuator length of this switch is 10.41 mm, which aids in its integration into various setups.
This switch provides On-On operation, allowing for versatile control in electronic circuits.
