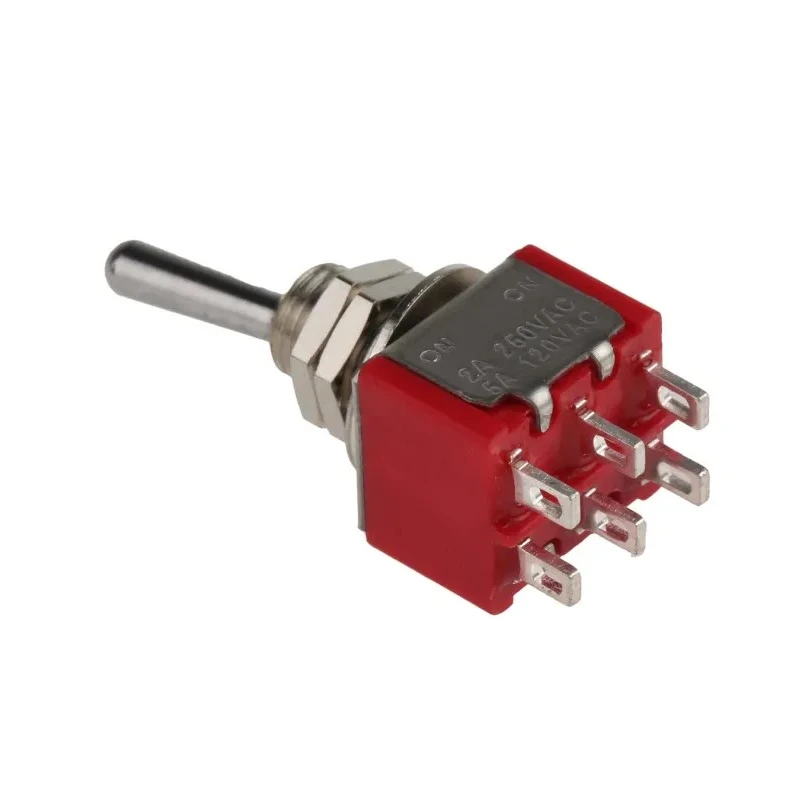

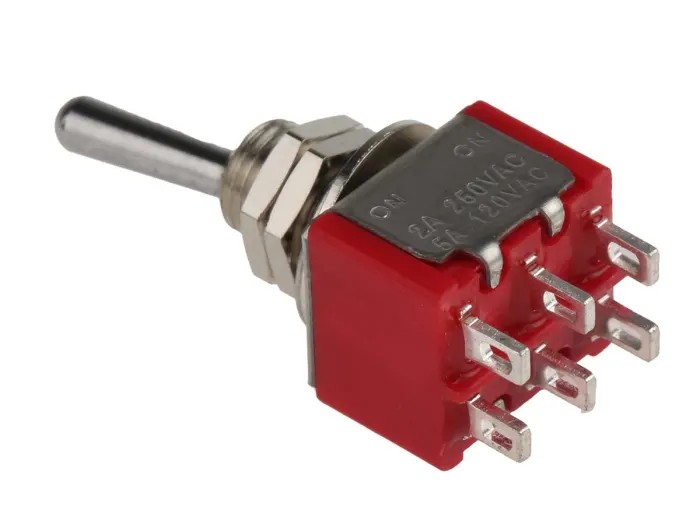

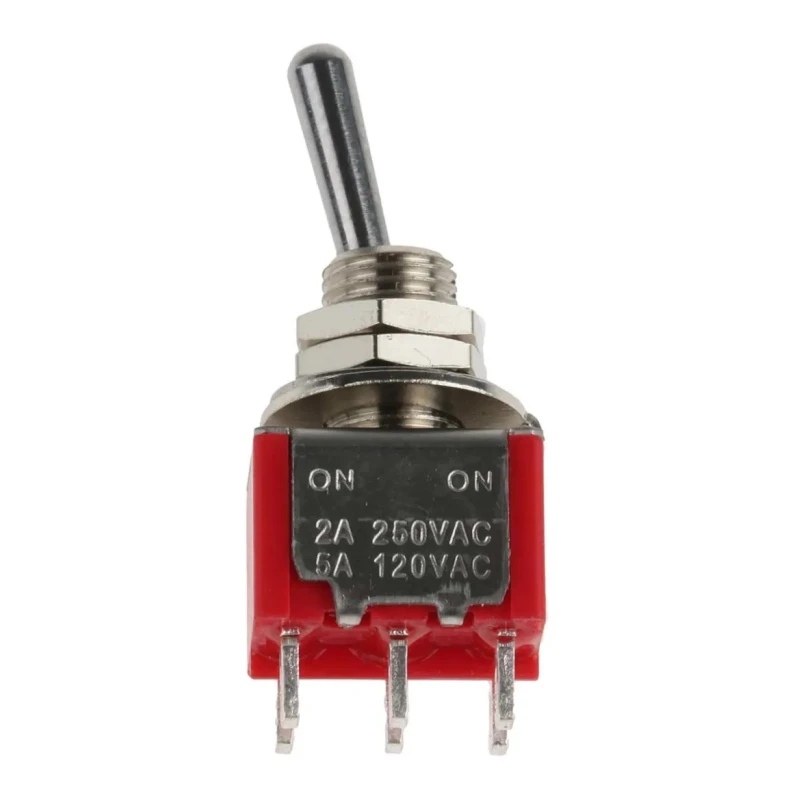

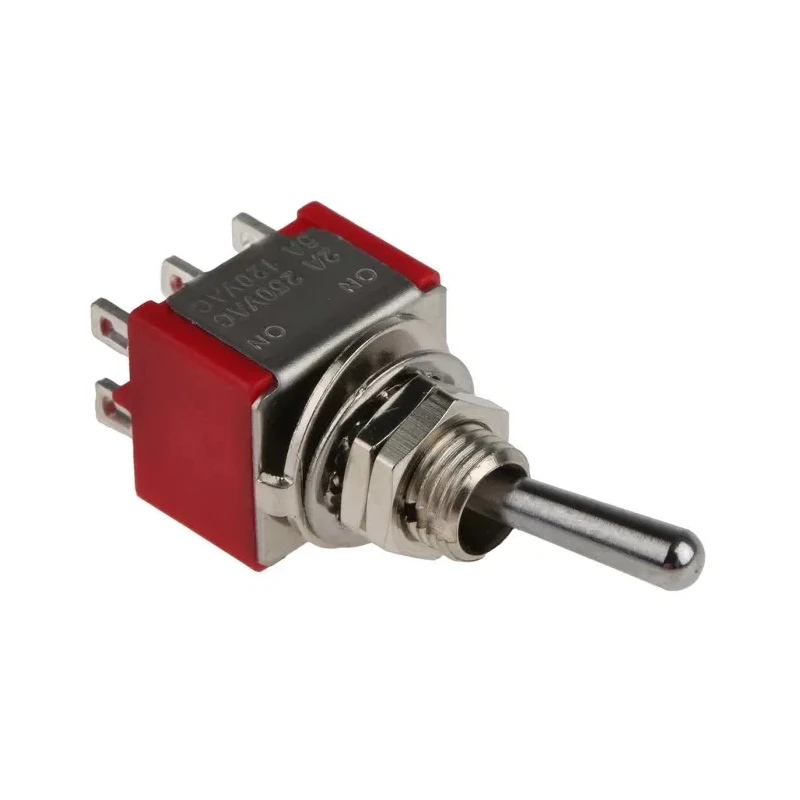

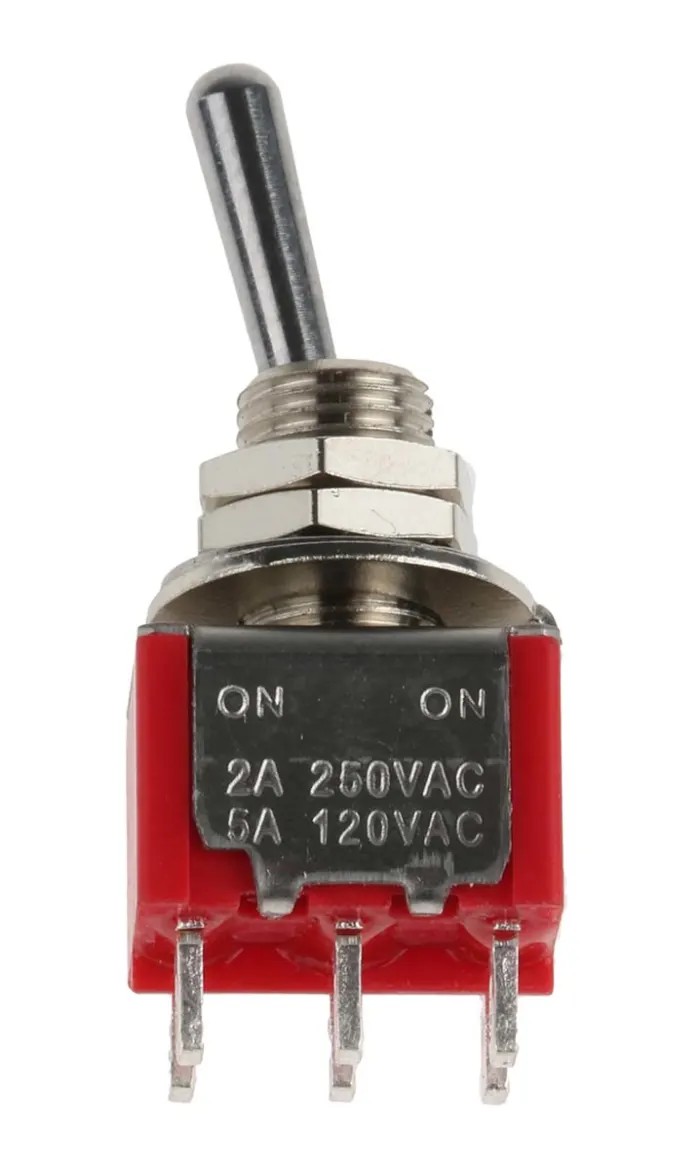

RS PRO Toggle Switch Panel Mount On-On DPDT Solder Terminal 26 V dc 112 V ac 7347016P
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 7347016P |
| Mount Type | Panel |
| Series | 1MD |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | DPDT |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Solder |
| Standards/Approvals | CE, CSA, RoHS, UL |
| Switch Operation | On-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 26V dc |
| Switch Contact Current | 5A |
| Mechanical Life | 40000Cycles |
| Contact AC Voltage | 112V ac |
| Actuator Material | Chrome Plated Brass |
Key Features
- This DPDT toggle switch is miniature and latching, suitable for controlling two circuits simultaneously.
- Features a chrome-plated brass actuator with a robust panel mount design.
- Includes silver-plated brass contacts with low contact resistance of 10 mΩ.
- Operates reliably in temperatures ranging from -30°C to 85°C.
- Mechanical life expectancy of up to 40,000 cycles ensures long-term durability.
- Suitable for multiple electrical and automation applications requiring up to 5 A contact current.
- Latching operation eliminates the need for continuous compression to maintain switch state.
- Panel cutout size is 6.35 mm allowing for precise installation.
Product Description
RS PRO 7347016P toggle switch is a high-quality panel-mount On-On double pole double throw (DPDT) switch designed for industrial and electrical applications requiring reliable switching of two different circuits using a single energy source. It features a miniature latching design with a solder terminal connection, making it highly suitable for automation and control systems that demand precision and durability.
The toggle switch is equipped with a chrome-plated brass actuator for enhanced corrosion resistance and mechanical strength. Silver-plated brass contacts ensure low contact resistance of approximately 10 milliohms, promoting efficient current flow and minimizing energy losses. It supports a contact current rating of up to 5 A and can handle DC voltages up to 26 V and AC voltages up to 112 V.
With operating temperature limits from -30°C to +85°C, this switch is built to perform reliably in harsh environments. The mechanical life of 40,000 cycles guarantees enduring operational stability for demanding industrial use. The panel mount design includes a panel cutout size of 6.35 mm, providing secure and precise installation on control panels or equipment chassis.
This RS PRO toggle switch adheres to internationally recognized standards including CE, CSA, RoHS, and UL certifications, affirming its safety and environmental compliance. The silver-plated contacts are lead-free, aligning with RoHS regulations for hazardous substances.
Typical applications include automation equipment, electrical panels, instrumentation, and general switching tasks where space-saving miniature switches are preferred. Its latching function allows stable state retention without holding force.
DPDT latching, miniature toggle switch for dual circuit control. Chrome plated brass actuator for durability and resistance. Silver-plated brass contacts with low resistance. Panel mount with a 6.35 mm cutout size. Contact current rating of 5 A with voltage ratings of 26 V dc and 112 V ac.
Operating temperature range from -30°C to 85°C. Mechanical life of 40,000 cycles for long-lasting service. Lead-free and RoHS compliant for environmental safety. Certified to CE, CSA, and UL standards. Explore more RS PRO Toggle Switches and electrical components at EnvMart for reliable industrial and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a contact current rating of up to 5 A, suitable for various electrical applications.
It supports DC voltages up to 26 V and AC voltages up to 112 V, making it versatile for different circuits.
The mechanical life expectancy is up to 40,000 cycles, ensuring long-term operational stability.
This toggle switch operates reliably in temperatures ranging from -30°C to +85°C, suitable for harsh environments.
It features a solder terminal type, allowing for secure electrical connections in various applications.
The panel cutout size for this switch is 6.35 mm, ensuring precise installation on control panels or equipment chassis.
It is certified to CE, CSA, RoHS, and UL standards, affirming its safety and environmental compliance.
This model features a double pole double throw (DPDT) contact configuration, allowing control of two circuits.
The actuator is made of chrome-plated brass, while the contacts are silver-plated brass, promoting low contact resistance.
It is suitable for automation equipment, electrical panels, instrumentation, and general switching tasks.
The latching operation allows the switch to maintain its state without requiring continuous compression, enhancing usability.
The actuator length is 10.41 mm, contributing to its compact and miniature design.
