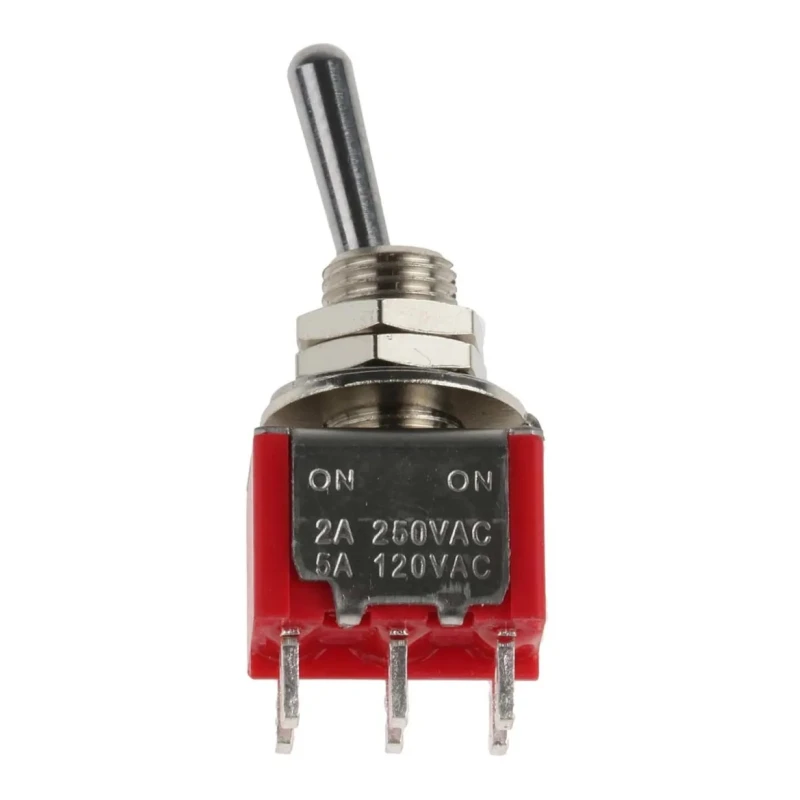

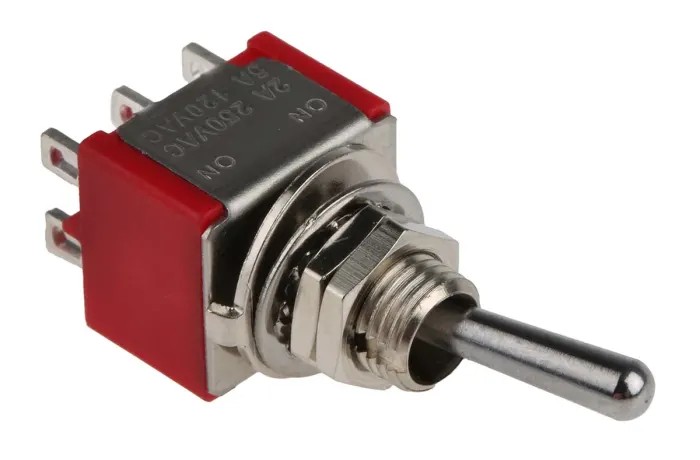

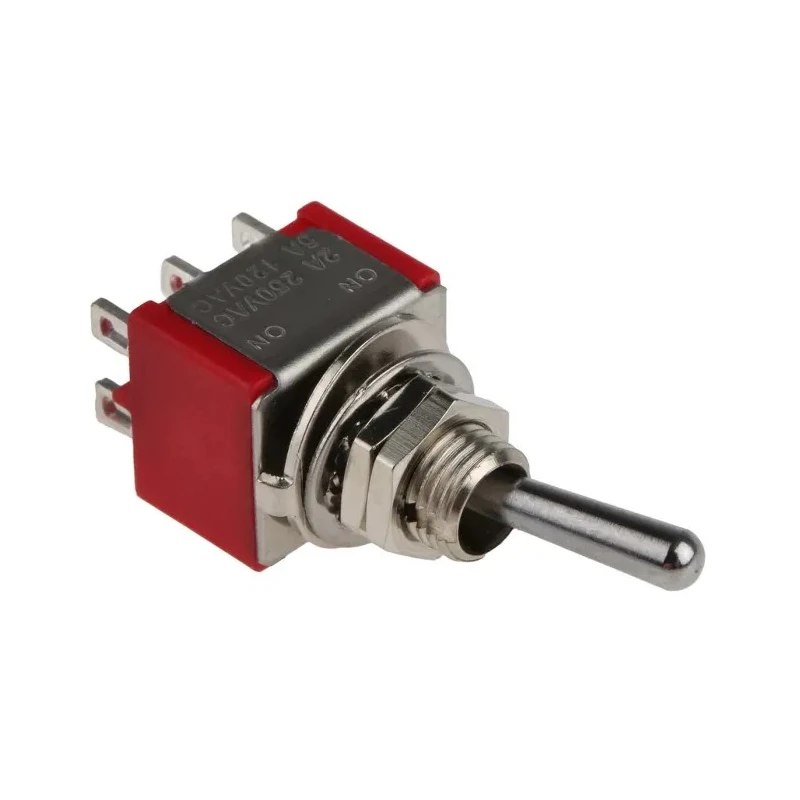

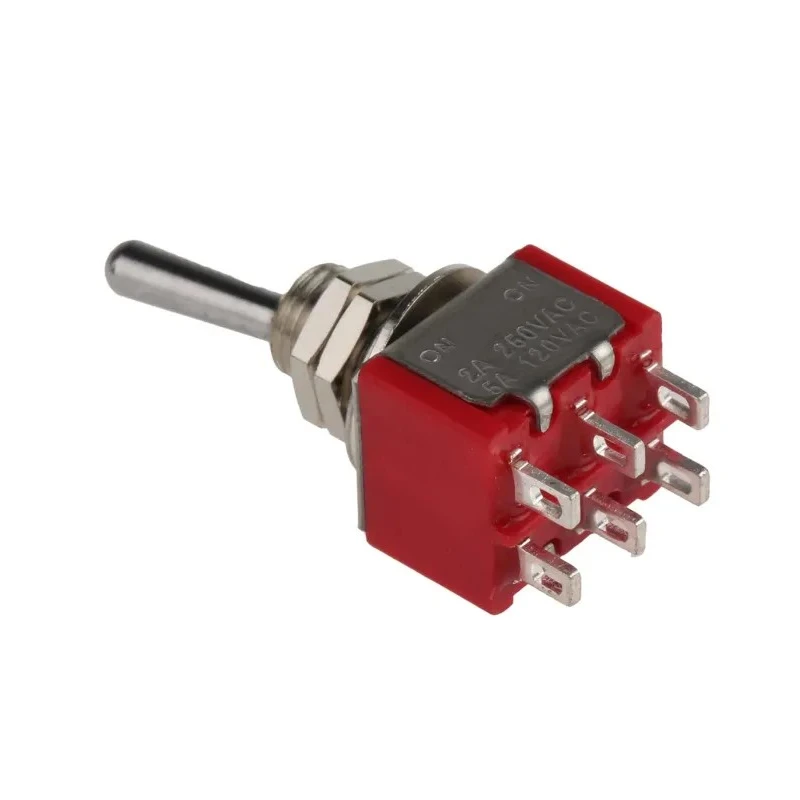

RS PRO Toggle Switch Panel Mount On-On DPDT Solder Terminal 26 V DC 112 V AC 5 A 1MD Series 734-7016
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 734-7016 |
| Mount Type | Panel |
| Series | 1MD |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | DPDT |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Solder |
| Standards/Approvals | CE, CSA, RoHS, UL |
| Switch Operation | On-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 26V dc |
| Switch Contact Current | 5A |
| Mechanical Life | 40000Cycles |
| Contact AC Voltage | 112V ac |
| Actuator Material | Chrome Plated Brass |
Key Features
- Features a double pole double throw (DPDT) latching operation for controlling two circuits simultaneously.
- Panel mount design with solder terminal connection for reliable installation.
- Operates at 26 V DC and 112 V AC with a contact current rating of 5 A.
- Robust chromium-plated brass actuator and silver-plated brass contacts ensure durability and low contact resistance of 10 mΩ.
- Designed to operate within a temperature range from -30°C to +85°C.
- Mechanical life rated at 40,000 cycles, providing long-lasting performance.
- Compact actuator length of 10.41 mm and panel cut-out size of 6.35 mm for versatile use.
- Lead-free design compliant with RoHS directive and certified to CE, CSA, and UL standards.
Product Description
RS PRO 734-7016 Toggle Switch is a miniature double pole double throw (DPDT) switch with latching operation designed for panel mounting. It is capable of energising two different circuits simultaneously, making it ideal for automation and electrical control applications.
The switch features a chromium-plated brass actuator and durable stainless steel housing with silver-plated brass contacts, offering minimal contact resistance rated at 10 mΩ and reliable current handling of 5 A. The solder-type terminal connection ensures secure and easy wiring. It is suitable for operating voltages of 26 V DC and 112 V AC.
Designed for harsh environments, the toggle switch functions efficiently over a wide temperature range from -30°C to +85°C and offers a mechanical life of up to 40,000 cycles. The compact actuator length of 10.41 mm and a panel cut-out size of 6.35 mm allow for easy integration into various equipment panels.
Compliance with RoHS, CE, CSA, and UL standards guarantees safety and environmental compatibility. Its lead-free construction supports sustainable manufacturing practices. Double pole double throw (DPDT) latching switch for simultaneous circuit control.
Panel mount with solder terminal ensures stable installation. Low contact resistance of 10 mΩ with silver-plated contacts. Operates up to 5 A contact current at 26 V DC and 112 V AC. Wide operating temperature range from -30°C to +85°C supports various environments.
Mechanical durability rated at 40,000 operating cycles. Compact size with 10.41 mm actuator length and 6.35 mm panel cut-out. Lead-free and RoHS compliant, certified to CE, CSA, and UL standards.
This Toggle Switch is widely used in industrial automation, electrical control panels, instrumentation, and other commercial equipment requiring reliable circuit switching. Its robust materials and certifications make it suitable for demanding professional environments. Explore various electrical components and switches in EnvMart for complementary products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of this toggle switch is 5 A.
It can operate at 26 V DC and 112 V AC.
The mechanical life is rated at 40,000 cycles.
This model operates within a temperature range from -30°C to +85°C.
The required panel cutout size is 6.35 mm.
It uses a solder terminal connection for installation.
The actuator length is 10.41 mm.
This switch is certified to CE, CSA, RoHS, and UL standards.
The contact configuration is double pole double throw (DPDT).
The actuator is made of chromium-plated brass.
It is suitable for industrial automation, electrical control panels, and instrumentation.
Yes, it features a lead-free design compliant with RoHS directives.
