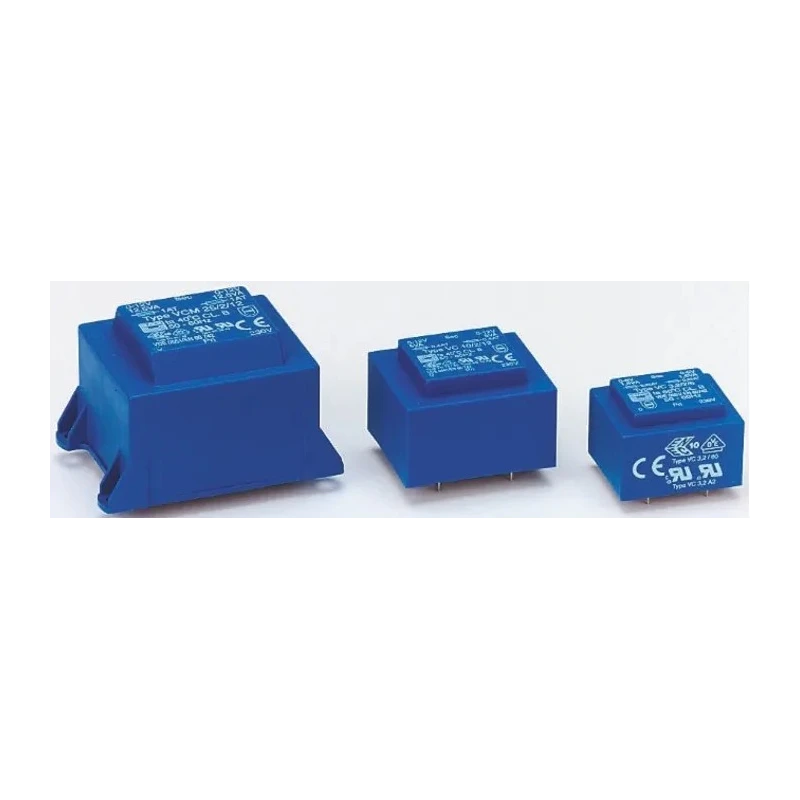

Block 12 V AC 1 Output PCB Transformer, C-UL-US, ENEC 10 (VDE) 36 VA VCM 36/1/12

Block VCM 36/1/12 is a high-quality PCB transformer designed for electronic circuits requiring a 12 V AC output. It features a single output winding and operates from a 230 V AC primary voltage, making it suitable for standard power systems.

The transformer is vacuum resin moulded to UL94-V0 standards, guaranteeing excellent insulation and fire resistance. It has low inter-winding capacitance and emits low radiated noise, which is critical for sensitive electronics and industrial applications.

Measuring 87.2 mm in length, 60 mm in width, and 48.5 mm in depth, this device fits appropriately onto PCBs using its extra fixing points that ensure stable mounting and mechanical integrity. Its isolation voltage of 5000 V offers enhanced protection against voltage spikes, increasing circuit safety and durability.

Designed to meet stringent international standards including C-UL-US and ENEC 10 (VDE), the VCM 36/1/12 transformer is also 100% electrical and flash tested to assure performance reliability. Its efficiency rating of 83% supports energy savings and long-term operation up to a maximum ambient temperature of 40°C.

This transformer finds applications in industrial control systems, power supplies, manufacturing equipment, laboratory devices, and HVAC systems requiring precise voltage regulation with noise suppression and electrical safety.

Equipped with 230 V AC primary voltage for standard AC mains compatibility. Constructed for low inter-winding capacitance and low radiated noise to minimize interference. Vacuum resin moulded to UL94-V0 standards ensuring fire safety and robustness.

Includes extra fixing points for secure mounting on PCBs to prevent displacement. Designed and tested to meet C-UL-US, ENEC 10 (VDE) international standards for quality and safety. Maximum operating temperature of 40°C for reliable performance in various environments.

Compact dimensions: Length 87.2 mm, Width 60 mm, Depth 48.5 mm to fit space-constrained PCB designs. Isolation voltage of 5000 V to protect circuits from voltage spikes and surges. Efficiency rated at 83% for effective energy conversion.

Operates within frequency range 50 Hz to 60 Hz for global AC power compatibility.
