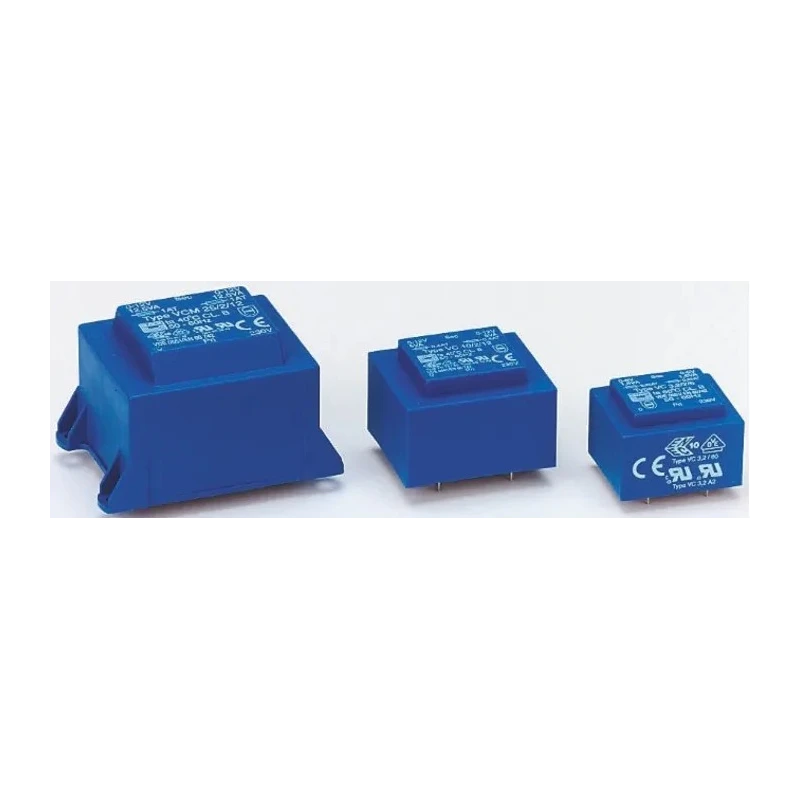

Block 15 V AC 1 Output PCB Transformer 25 VA, 230 V AC Primary, C-UL-US, ENEC 10 (VDE) VCM 25/1/15

Block VCM 25/1/15 PCB Transformer offers a 15 V AC electrical output with a 230 V AC primary voltage input, rated at 25 VA. This transformer is designed for PCB mounting with secure extra fixing points, suited for electronic applications requiring efficient voltage transformation with safety certifications including C-UL-US and ENEC 10 (VDE).

The vacuum resin moulded body meets UL94-V0 flammability standards and provides low radiated noise and low inter-winding capacitance, ensuring minimal electrical interference. It is engineered for industrial, electronic component power supply, and manufacturing use cases.

With an isolation voltage of 5000 V and operational frequency range from 50 Hz to 60 Hz, this transformer sustains safe operation up to a maximum temperature of 40°C, providing reliability in various electronic and industrial environments.

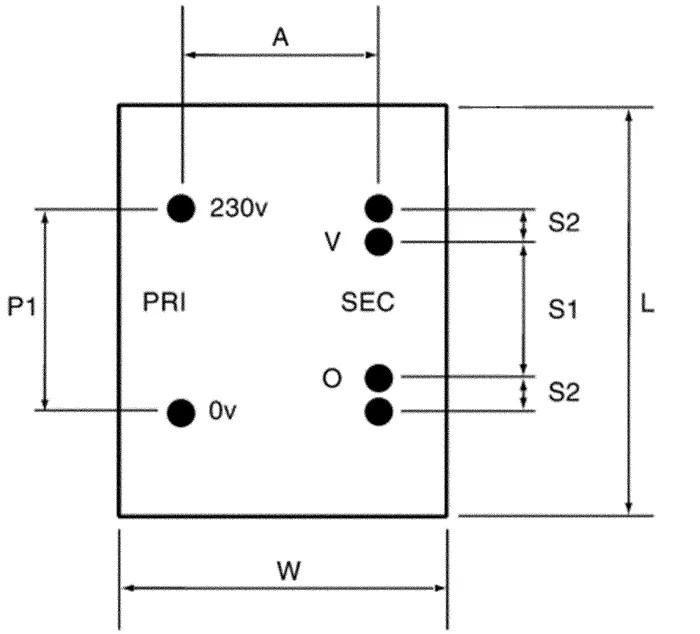

The compact size of 81.2 mm by 55 mm by 49.2 mm allows for efficient PCB space management. It achieves an 82% efficiency rating, reducing energy losses and supporting sustainable operation in power supply circuits.

PCB mount transformer designed for reliable electronic component integration. Single output rated at 15 V AC for versatile power applications. 230 V AC primary input voltage suitable for standard mains supply. 25 VA power rating supports moderate load requirements efficiently.

Constructed with vacuum resin moulding for UL94-V0 flammability rating compliance. High isolation voltage of 5000 V ensures safety and performance. Operating temperature up to 40°C for consistent use in industrial environments.

Efficiency of 82% minimizes energy loss. Compact dimensions: 81.2 mm length, 55 mm width, and 49.2 mm depth optimize PCB space usage. Manufactured in Germany adhering to EN 61 558 and IEC 61558 standards.

This PCB Transformer is ideal for use in industrial electronics manufacturing, power supplies, HVAC control circuits, and laboratory equipment requiring reliable voltage conversion and electrical isolation.
