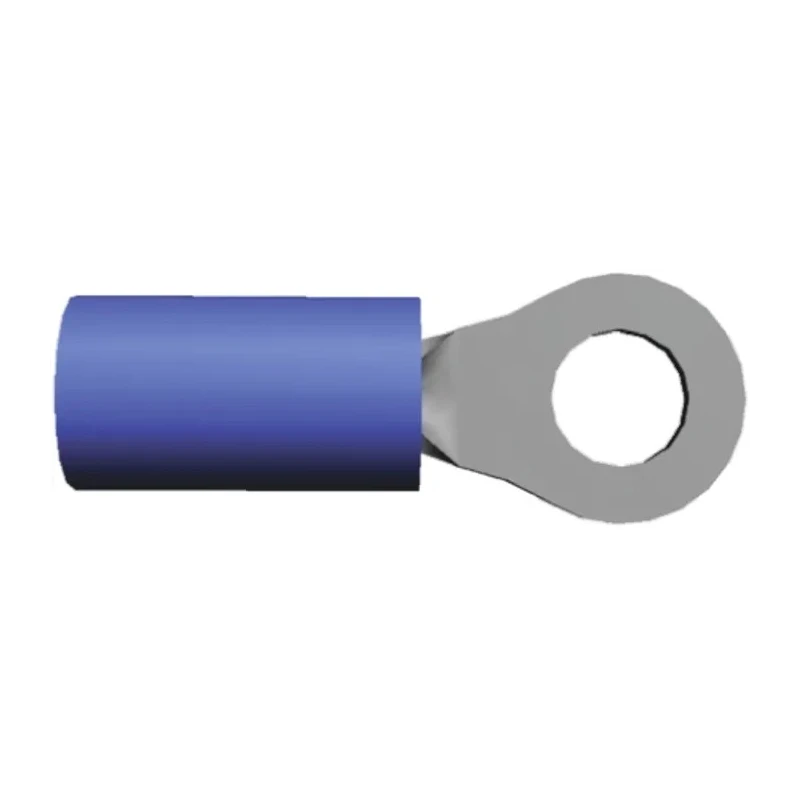

TE Connectivity PIDG Insulated Ring Terminal M4 Stud Size 16 AWG 14 AWG Wire Size Blue 51864-5
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Blue |
| THICKNESS | 0.79mm |
| Model | 51864-5 |
| Insulation | Insulated |
| Overall Length | 21.44mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 7.92mm |
| Inner Ring Diameter | 4.34mm |
| Stud Size | M4 |
Key Features
- High conductivity copper body ensures reliable electrical connection.
- Nylon insulation offers durable and effective wire protection.
- Color-coded blue sleeve for easy wire size identification.
- Precision-formed design provides a uniform and reliable crimp.
- Suitable for industrial and commercial electrical wiring applications.
- Temperature rating up to 105°C for versatile usage environments.
- Compatible with wire sizes from 16 AWG to 14 AWG (1mm² to 2.6mm²).
Product Description
TE Connectivity 51864-5 PIDG Insulated Ring Terminal is designed for robust, reliable electrical connections in various industrial, commercial, and manufacturing settings. It supports M4 stud size and accommodates wire sizes 16 AWG to 14 AWG with a blue nylon insulation sleeve.
The terminal features a high conductivity copper body with a copper sleeve inside the barrel to improve wire insulation support and prevent fraying. Serrations within the wire barrel provide maximum contact and tensile strength after crimping, ensuring durability and secure connections.
A color-coded nylon insulation sleeve facilitates quick wire size and tooling identification. The funnelled wire entry prevents turned-back wire strands, allowing smooth and efficient wire insertion during production.
These PIDG terminals meet the demanding requirements of numerous applications including instruments and control systems, lighting, power supplies, panel boxes, transportation, lifting equipment, motors, aerospace, and household appliances. Their construction supports use in challenging circuit environments.
Operating temperature up to 105°C enables use in a wide range of temperature conditions. The outer ring diameter measures 7.92 mm, and the inner ring diameter fits M4 studs perfectly. Overall length is 21.44 mm with a thickness of 0.79 mm, providing a compact and reliable terminal design.
High conductivity copper body for excellent electrical performance. Copper sleeve enhances wire insulation and prevents fraying. Serrated barrel ensures maximum contact and tensile strength. Color-coded blue nylon insulation sleeve aids wire size identification.
Funnelled wire entry provides easy and fast wire insertion. Versatile for applications in industrial, commercial, and aerospace fields. Rated for use up to 105°C ambient temperature.
This TE Connectivity PIDG Insulated Ring Terminal is a dependable solution for professionals requiring consistent, high-quality wire terminations. Browse more solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this terminal is 105°C, allowing for use in a wide range of temperature conditions.
This model accommodates wire sizes from 16 AWG to 14 AWG, which corresponds to 1 mm² to 2.6 mm².
The stud size for this terminal is M4, ensuring a secure fit for compatible applications.
The terminal features a high conductivity copper body with a nylon insulation sleeve, and it has a tin plating for the contact material.
The overall length of the terminal is 21.44 mm, with an outer ring diameter of 7.92 mm and an inner ring diameter of 4.34 mm.
The terminal features serrations within the wire barrel that provide maximum contact and tensile strength after crimping, ensuring secure connections.
The thickness of this terminal is 0.79 mm, contributing to its compact design.
Yes, this terminal is suitable for various industrial, commercial, and manufacturing applications, including control systems and lighting.
This terminal has nylon insulation, which offers effective wire protection and durability.
The funnelled wire entry design prevents turned-back wire strands, allowing for smooth and efficient wire insertion during production.
The insulation sleeve is color-coded blue, which aids in the quick identification of wire sizes during installation.
This insulated ring terminal is manufactured in India.
