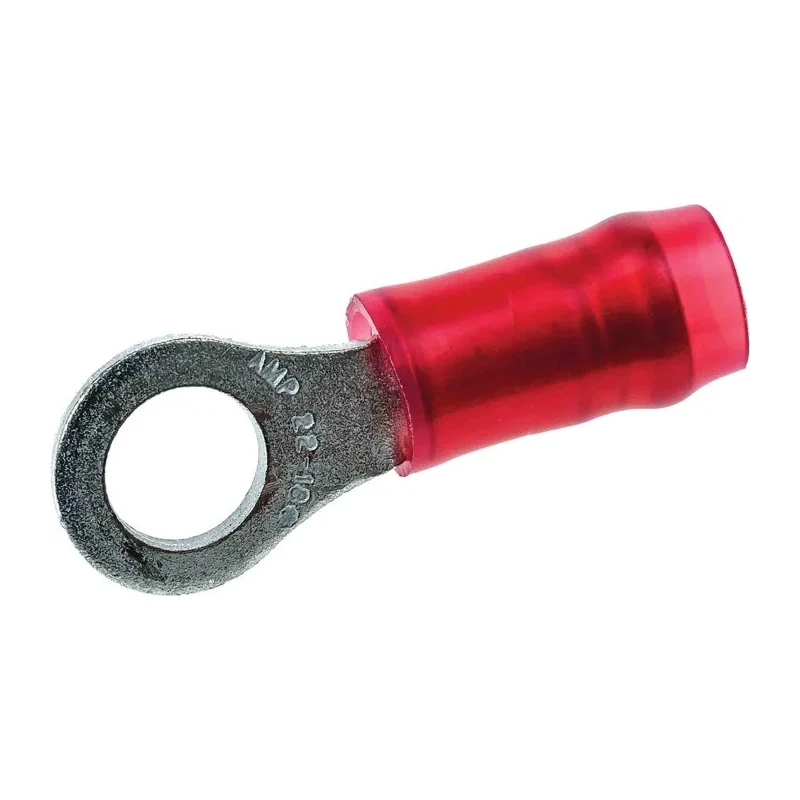

TE Connectivity PIDG Insulated Ring Terminal M4 Stud Size 22 AWG to 18 AWG Wire Size, Red 171508-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| THICKNESS | 0.8mm |
| Model | 171508-1 |
| Insulation | Insulated |
| Overall Length | 20.3mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Outer Ring Diameter | 7.1mm |
| Inner Ring Diameter | 3.68mm |
| Stud Size | M4 |
Key Features
- Constructed with high conductivity copper body for excellent electrical performance.
- Features copper sleeve around barrel providing improved wire insulation support and preventing fraying.
- Serrations inside barrel ensure maximum contact and tensile strength after crimping.
- Colour coded nylon outer sleeve allows easy wire size identification and tooling compatibility.
- Funnelled wire entry design facilitates easy and fast wire insertion in high-speed production.
- Overall length is 20.3mm suitable for various wiring applications requiring M4 stud size.
- Designed to meet or exceed MIL-T-7928, Type II, Class 1 and 2 for reliable industrial use.
- Suitable for use in instrumentation, lighting, power supplies, panel boxes, motors, transportation, aerospace, and appliances.
Product Description
TE Connectivity 171508-1 PIDG Insulated Ring Terminal with M4 Stud Size and Red Insulation is designed to offer uniform reliability in challenging circuit environments. The terminal features a precision-formed high conductivity copper body and barrel ensuring efficient electrical conductivity combined with robust mechanical strength.
The copper sleeve surrounding the wire barrel enhances insulation support and prevents wire fraying, while serrations inside the barrel secure maximum contact and tensile strength after crimping. The outer red nylon sleeve is colour coded for easy identification of wire sizes and tooling requirements, compatible with wire sizes between 22 AWG (0.26 mm²) and 18 AWG (1 mm²).
With an overall length of 20.3mm and an outer ring diameter of 7.1mm, this ring terminal fits an M4 stud size. The funnelled entry expedites wire insertion, making this terminal suitable for high-speed assembly lines. Its construction and design allow for a dependable and uniform crimp for electrical connections.
This PIDG Ring Terminal is compliant with standards such as MIL-T-7928, Type II, Class 1 and 2, making it ideal for numerous industrial and commercial applications. Common uses include instrumentation controls, lighting systems, power supply connections, panel box wiring, transportation equipment wiring, lifting equipment, motors, aerospace electronics, and household appliances.
High conductivity copper body enhances electrical and mechanical performance. Copper sleeve improves wire insulation and prevents fraying. Serrated barrel provides maximum contact and tensile strength after crimping. Colour coded red nylon sleeve for wire size and tooling identification.
Funnelled wire entry allows fast wire insertion during production. Overall length of 20.3mm, outer ring diameter of 7.1mm, and inner ring diameter of 3.68mm. Compatible with wire sizes between 22 AWG (0.26 mm²) and 18 AWG (1 mm²).
M4 stud size suitable for a wide range of industrial wiring applications. Maximum operating temperature of 105°C ensures durability under heat stress.
The product is new, made to rigorous quality standards by TE Connectivity, and is a reliable choice for professional electrical and electronic wiring needs. Explore more in the Wire Terminals & Splices category at EnvMart for compatible accessories and tools.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal is compatible with wire sizes ranging from 22 AWG (0.26 mm²) to 18 AWG (1 mm²).
The overall length of this terminal is 20.3mm.
This model is designed to fit an M4 stud size.
It features a high conductivity copper body and a tin contact plating, with an insulated red nylon outer sleeve.
The maximum operating temperature for this terminal is 105°C.
The terminal has a funnelled wire entry design that allows for easy and fast wire insertion, making it suitable for high-speed assembly lines.
It is designed to meet or exceed MIL-T-7928, Type II, Class 1 and 2 standards for reliable industrial use.
The outer ring diameter is 7.1mm, and the inner ring diameter is 3.68mm.
The terminal features a copper sleeve around the barrel for improved insulation support and serrations inside the barrel for maximum contact and tensile strength after crimping.
This terminal is suitable for applications including instrumentation, lighting, power supplies, panel boxes, motors, transportation, aerospace, and appliances.
The thickness of this terminal is 0.8mm.
This terminal belongs to the PIDG series by TE Connectivity.
