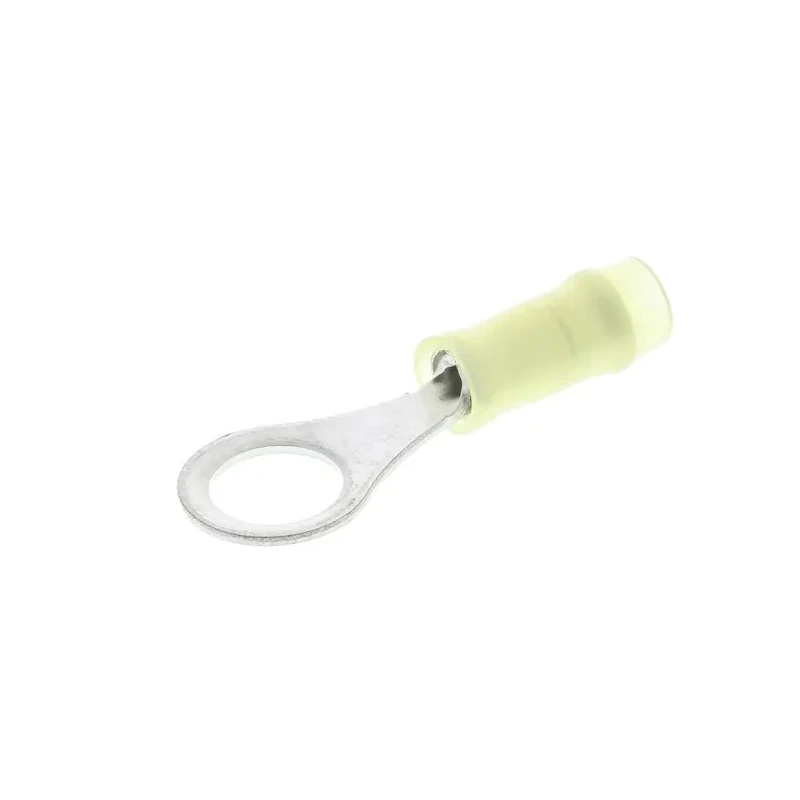

TE Connectivity PIDG Insulated Ring Terminal M4 Stud Size 26 AWG to 22 AWG Wire Size Yellow 323916
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Yellow |
| THICKNESS | 0.79mm |
| Model | 323916 |
| Insulation | Insulated |
| Overall Length | 18.8mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.4mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Outer Ring Diameter | 0.203mm |
| Inner Ring Diameter | 0.93mm |
| Stud Size | M4 |
Key Features
- Constructed from high conductivity copper with tin plating for durability.
- Features nylon insulation sleeve for electrical isolation and wire size identification.
- Supports wire sizes from 26 AWG (0.1 mm²) to 22 AWG (0.4 mm²).
- Overall length of 18.8 mm and thickness of 0.79 mm ensure robust mechanical strength.
- Designed with serrations in the barrel for maximum contact and tensile strength after crimping.
- Copper sleeve provides improved wire insulation support and prevents fraying.
- Suitable for use in instrumentation, lighting, power supplies, panel boxes, motors, aerospace, and various industrial applications.
- Complies with RoHS standards with maximum operating temperature of 105°C.
Product Description
TE Connectivity model 323916 PIDG Insulated Ring Terminal is designed for reliable and uniform crimping in demanding electronic environments. This ring terminal accommodates wire sizes from 26 AWG to 22 AWG with a compatible M4 stud size, making it suitable for various wiring tasks that require strong mechanical and electrical connections.
Constructed from precision-formed high conductivity copper material with tin plating, the contact ensures optimal electrical performance. The wire barrel includes serrations that enhance contact and tensile strength after crimping, while the copper sleeve supports insulation and prevents strand fraying.
The yellow nylon insulation sleeve provides excellent electrical isolation and serves as a visual marker for wire gauge and tooling identification. The overall length of 18.8 mm and thickness of 0.79 mm impart durability and compatibility with high-volume production tooling.
TE Connectivity's PIDG terminals meet demanding wiring standards and are ideal for applications in instrumentation and control systems, lighting, power distribution panels, motors, aerospace equipment, and appliance manufacturing. They comply with RoHS directives and tolerate operating temperatures up to 105°C.
Constructed from high conductivity copper with tin plating for durability. Features nylon insulation sleeve for electrical isolation and wire size identification. Supports wire sizes 26 AWG (0.1 mm²) to 22 AWG (0.4 mm²).
Overall length of 18.8 mm and thickness of 0.79 mm for mechanical strength. Serrated barrel design for reliable crimp contact and tensile strength. Copper sleeve improves insulation support and prevents wire fraying. Yellow sleeve aids quick size identification and tooling compatibility.
Suitable for industrial, aerospace, automotive, HVAC, and manufacturing wiring. RoHS compliant with a maximum operating temperature of 105°C. Funnelled wire entry design ensures fast, reliable wire insertion.
Choose TE Connectivity PIDG Insulated Ring Terminals for consistent, high-quality wire connections in industrial and commercial electrical applications. Explore more Ring Terminal options and industrial electrical components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports wire sizes from 26 AWG (0.1 mm²) to 22 AWG (0.4 mm²).
The maximum operating temperature for this terminal is 105°C.
It is constructed from high conductivity copper with tin plating for optimal electrical performance.
It features a nylon insulation sleeve that provides electrical isolation and aids in wire size identification.
The overall length is 18.8 mm and the thickness is 0.79 mm.
The stud size for this terminal is M4.
The barrel is designed with serrations that improve contact and tensile strength after crimping.
Yes, it complies with RoHS standards.
It is suitable for use in instrumentation, lighting, power supplies, panel boxes, motors, aerospace, and various industrial applications.
The outer ring diameter is 0.203 mm and the inner ring diameter is 0.93 mm.
The funnelled wire entry design ensures fast and reliable wire insertion.
The country of origin for this terminal is India.
