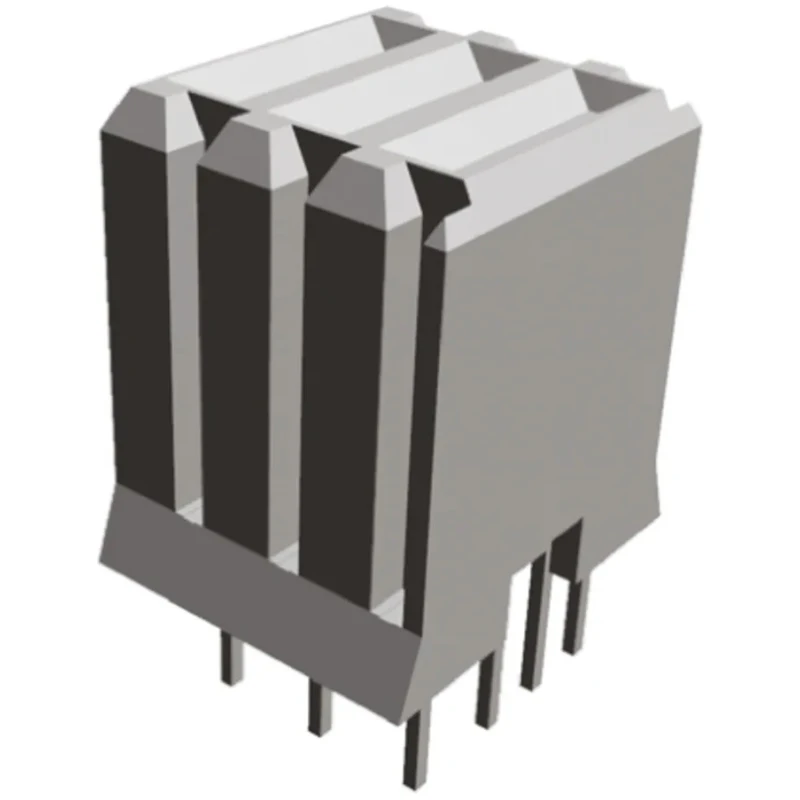

TE Connectivity Z-PACK HM Series Straight Through Hole PCB Socket, 3-Contact, 2.54 mm Pitch, 250 V, 1.15 A 5-5223955-2

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Z-PACK HM Series Straight Through Hole PCB Socket, 3-Contact, 2.54 mm Pitch, 250 V, 1.15 A 5-5223955-2

Name: TE Connectivity Z-PACK HM Series Straight Through Hole PCB Socket, 3-Contact, 2.54 mm Pitch, 250 V, 1.15 A 5-5223955-2
Brand: TE Connectivity
SKU: 219974
Price: 20.22 USD
Availability: InStock



Category PCB Sockets Brand TE Connectivity Condition New

Specifications

Country of Origin	United States
Voltage	250V
Brand	TE Connectivity
Orientation	Straight
Current	1.15A
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Copper
Series	Z-PACK HM
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-65°C
Pitch	2.54mm
Standards/Approvals	RoHS
Contact Plating	Gold
Number of Contacts	3
Contact Gender	Female
Connector System	Board-to-Board

Key Features

Features a straight through hole mount for secure PCB installation.
Supports a rated current of 1.15 amperes at 250 volts.
Constructed with a liquid crystal polymer housing material for durability.
Contacts are female with copper material and gold plating for reliable electrical connection.
Operating temperature range from -65°C to 125°C ensures performance under varying conditions.
Complies with RoHS standards for environmental safety.
Offers board-to-board connector system for effective electrical interconnection.
Manufactured in the United States maintaining high-quality standards.

Product Description

TE Connectivity 5-5223955-2 PCB Socket is a high-quality board-to-board connector featuring 3 female contacts with a 2.54 mm pitch and straight orientation. It is designed for through-hole mounting to provide secure and reliable solder connections on printed circuit boards.

The socket incorporates a liquid crystal polymer housing for excellent durability and thermal stability. The copper contacts with gold plating offer enhanced conductivity and corrosion resistance, ensuring long-term reliable performance in electronic assemblies.

This 3-contact connector supports a voltage rating of 250 volts and a current rating of 1.15 amperes, suitable for moderate power applications in electronic devices. Its wide operating temperature range from -65°C to 125°C makes it suitable for demanding industrial and commercial environments.

Designed as part of TE Connectivity's Z-PACK HM Series, this PCB socket complements a broad range of board-to-board interconnections commonly used in electronic manufacturing, enabling high-speed data transfer and reliable signal integrity.

Features a straight through hole mount for secure PCB installation. Rated at 250 V and 1.15 A for moderate power electronics. Liquid crystal polymer housing provides thermal and mechanical stability. Female copper contacts plated with gold for enhanced conductivity.

Wide operating temperature range from -65°C to 125°C. RoHS compliant ensuring environmental safety standards. Ideal for board-to-board connector systems in electronic devices. Manufactured in the United States adhering to high-quality standards.

This PCB socket finds applications across industrial, commercial, and electronic manufacturing sectors, contributing to reliable circuit connections and device assembly. It is suitable for use in computer hardware, telecommunications, instrumentation, and embedded systems.
