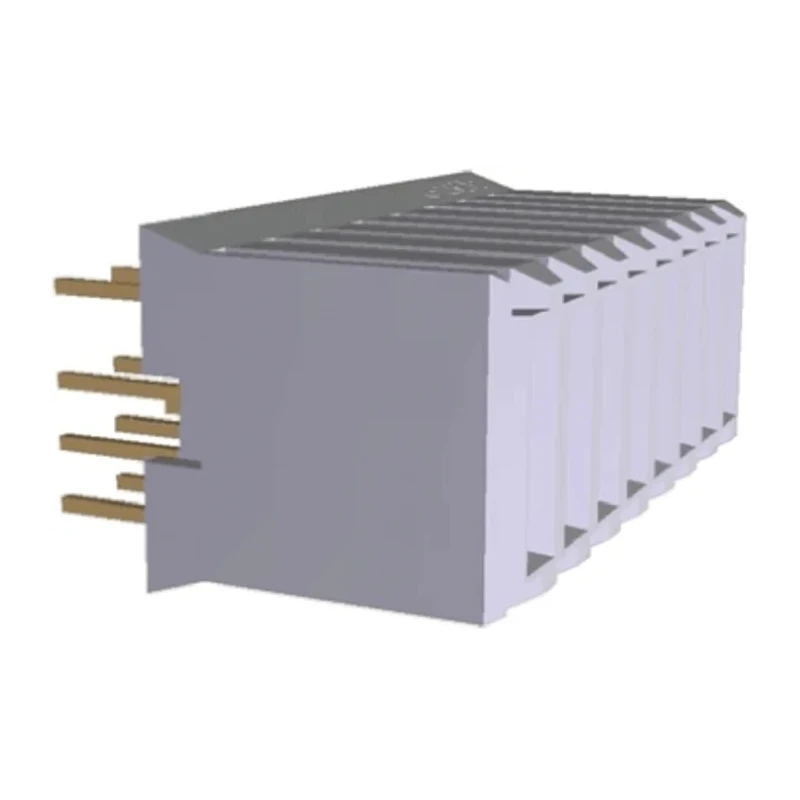

TE Connectivity Z-PACK HM Series Straight Through Hole PCB Socket, 8-Contact, 1 Row, 1.5 mm Pitch, 16A, 250V 120953-5

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Z-PACK HM Series Straight Through Hole PCB Socket, 8-Contact, 1 Row, 1.5 mm Pitch, 16A, 250V 120953-5

Name: TE Connectivity Z-PACK HM Series Straight Through Hole PCB Socket, 8-Contact, 1 Row, 1.5 mm Pitch, 16A, 250V 120953-5
Brand: TE Connectivity
SKU: 219855
Price: 13.78 USD
Availability: InStock



Category PCB Sockets Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	TE Connectivity
Orientation	Straight
Current	16A
Model	120953-5
Mount Type	Through Hole
Housing Material	Polyester
Contact Material	Copper
Series	Z-PACK HM
Termination Type	Solder
Maximum Operating Temperature	110°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-65°C
Number of Rows	1
Pitch	1.5mm
Contact Plating	Tin
Number of Contacts	8
Contact Gender	Female
Connector System	Board-to-Board

Key Features

Designed with polyester housing for durability and insulation.
Features a single row with 8 female contacts for board-to-board connections.
Operates reliably in temperatures ranging from -65°C to 110°C.
Contact surfaces plated with tin for corrosion resistance and conductivity.
Termination type is solder for secure mounting on PCBs.
Compatible with Z-PACK HM series connectors providing modularity.
Ideal for industrial and electronic component applications requiring robust board connections.
Through hole mount type ensures stable mechanical and electrical contact.

Product Description

TE Connectivity 120953-5 Z-PACK HM Series Straight Through Hole PCB Socket is a high-quality board-to-board connector designed for industrial and electronic applications. This 8-contact, single-row socket provides secure and reliable electrical connections on printed circuit boards (PCBs) with a compact 1.5 mm pitch configuration.

Constructed with durable polyester housing and copper contacts plated with tin, it ensures long-term stability and corrosion resistance. The socket supports a current rating of 16A and a voltage rating up to 250V, making it suitable for a variety of power and signal transfer needs. Its through-hole mount type offers strong mechanical support on the PCB, suitable for demanding manufacturing environments.

The socket operates efficiently across a wide temperature range from -65°C to 110°C, enabling usage in harsh conditions. It features female contacts, designed for board-to-board interconnection as part of the Z-PACK HM series, providing modular and flexible system configurations.

Durable polyester housing for insulation and protection. 8 female contacts arranged in a single row with 1.5 mm pitch. Tin-plated copper contacts for excellent conductivity and corrosion resistance. Supports up to 16A current and 250V operating voltage.

Through hole mounting ensures reliable PCB fixation. Wide operational temperature range from -65°C to 110°C. Compatible with Z-PACK HM series connector systems. Suitable for industrial, electronics manufacturing, and power connector applications.

This PCB socket enhances connection reliability and efficiency in industrial, manufacturing, and electronic assembly applications. It is designed for users requiring high-performance, modular connector solutions in power and signal distribution systems.
